*Discontinued* Sargent - 8504 - Exit Device with Trim Lever - Weather Resistant - 42" - Satin Stainless Steel - Grade 1
Out of Stock
SKU:
SRG-SC-CPC-WH-8504J-42W-ETL-657-0-BITTED-NC-E35-US32D
NSID:
37029
- $1,566.00
-
$1,879.20 - $1,566.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

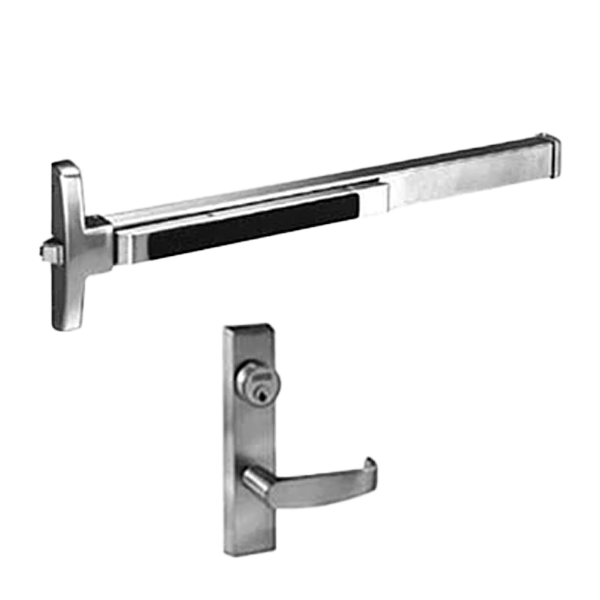

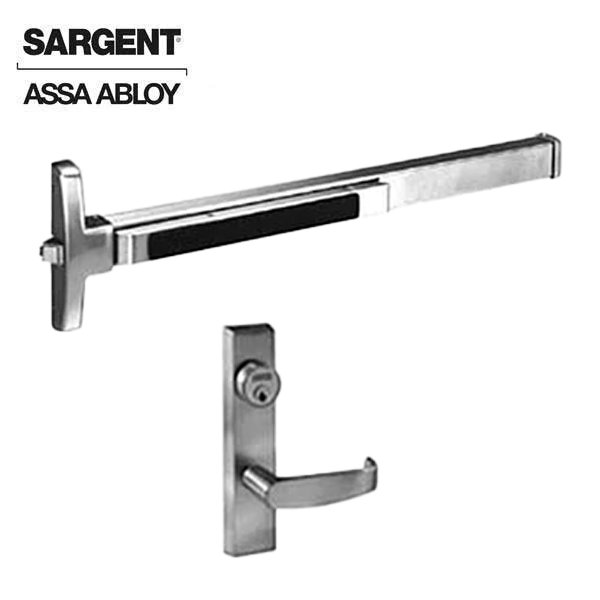

This is a 8504 Rim Exit Device with 700 ET Trim Lever - Night Latch
Designed for narrow stile applications, the 8500 Series features a rim bolt that combines quiet operation with solid security. Ideal for aluminum, metal and wood doors and/or single full-glass doors.
Features
- Designed for narrow stile applications
- Single point rim latching device
- Quiet operation and solid security
- Single and double doors with mullion
- ANSI/BHMA Grade 1
- Made from 61% post-consumer recycled content
- 5 year manufacturers warranty
- $1,566.00
-
$1,879.20 - $1,566.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Device Function | 4 - Night Latch |
| ANSI Function | 03 - Key Retracts Latch |
| Trim | Rim Exit Device with Trim Lever |
| Lever Style | ETL Lever |
| Handing | Non-Handed |
| Pushbar Projection | 2-1/8" - 3" |
| Latch Bolt | Stainless Steel 3/4" Throw |
| Exit Device length | 42" |
| Door Thickness |
1-3/4" to 2-1/4" |
| Stile | 4-1/2" (114mm) minimum stile width |
| Mounting | Supplied standard with wood and machine screws |
| Dogging | Hex key dogging standard on non fired rated devices |
| Strikes | 649 Strike supplied standard for panic & fire rated openings |
| Certifications | ANSI A156.3 |
