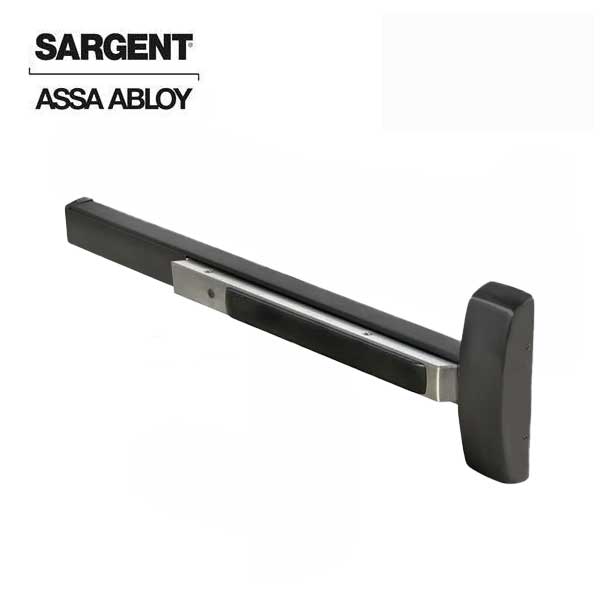

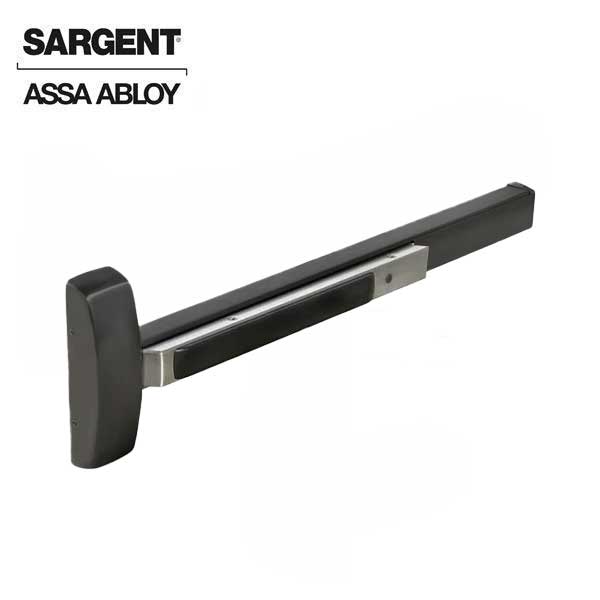

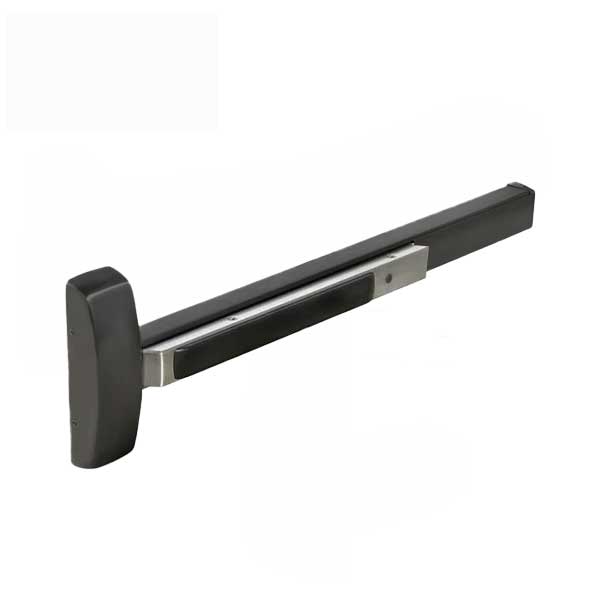

Sargent - 8610F - Concealed Vertical Exit Rod - Passage (Exit Only) - Electric Options - 36" x 84" - Black Suede - Grade 1
Available to Order
SKU:
SRG-AD-8610F-36Wx96H-EO-640x640-LHR-BSP
NSID:
29731
29733
29732
- $1,243.90
-
$1,387.86 - $1,243.90
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SRG-56-AD-8610F-36wx96h-EO-640x640-RHR-BSP
Designed for standard width single or double doors, the 8600 Series features vertical rods concealed within the door for added security and enhanced aesthetics. Equally suited for single door and double egress applications. Meeting ANSI/BHMA Grade 1 standards, the 8700 Series is available with hurricane and windstorm resistance certifications. Ideal for schools, offices, and hospitals.
Features
- Designed for standard width stile applications on aluminum doors
- Concealed rods for security and aesthetics
- Single or double door applications
- Optional Handing
- Optional Motorized Latch Retraction
- ANSI/BHMA Grade 1
- UL Fire and Panic listed
- Made from 61% post-consumer recycled content
- 5 year manufacturers warranty
Specifications
| Device Function | 10 - Passage, (Exit Only) |
| ANSI Function | 01 - Passage (no cylinder) |
| Handing | Left Hand Reverse/Right Hand Reverse |
| Door Type | Aluminum Doors |
| Pushbar Projection | 2-1/8" (54mm) - 3" (76mm) |
| Rail Size | 33"-36" door widths. |
| Door Thickness |
1-3/4" to 2-1/4" |
| Stile | 4-1/2" (114mm) minimum stile width |
| Device center line from Finished floor | 41"(1041mm), 38"(965mm) for elementary schools |
| Electric options | 56 - Remote Latch Retraction |
| Door/Opening Height | 120" (3048mm) Max Door Opening |
| Mounting | Supplied standard with wood and machine screws |
| Dogging | Hex dogging standard |
| Strike | 640 for Top & Bottom Strike |
| Center Case Dimensions | 8-3/8" (213mm) x 2-5/8" (67mm) |
| Certifications | ANSI A156.3 – 2008 Grade 1 |
| Manufacturer's Warranty | 5 Years |
