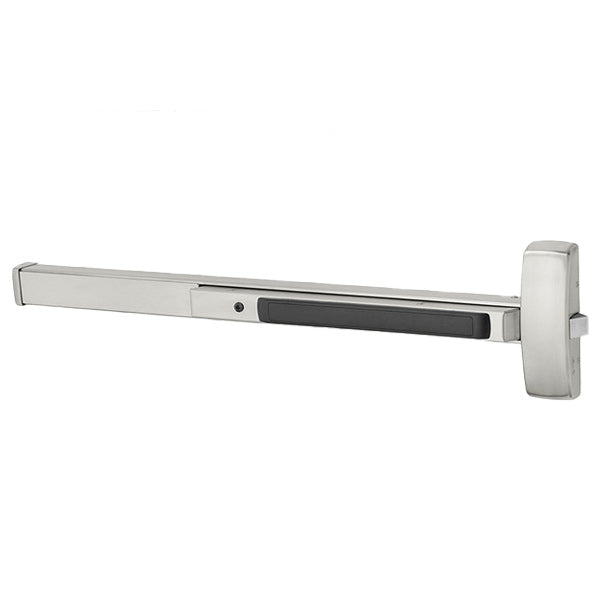

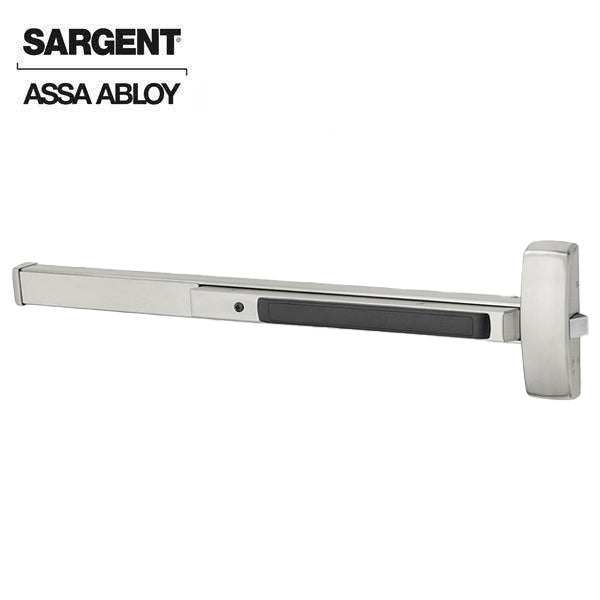

Sargent - 8804G - Rim Exit Bar - Night Latch Function - Wide Stile Pushpad - 48" - Field Reversible - Satin Stainless Steel - Grade 1
Available to Order
SKU:
SRG-8804G-32D
NSID:
76545
- $1,361.45
-
$1,633.74 - $1,361.45
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical, and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit, and electric latch retraction making these exit devices the go-to product in your building.
Specifications:
| Mechanical Function | Night Latch |
| Color | Satin Stainless Steel |
| Physical Appearance | Wide stile Pushpad |
| Grade | Grade 1 |
| Fire Rated | No |
| Device Type | Rim |
| Door Width | 37in to 42in |
| Includes Trim | No |
| Device Length | 48" |
| Door Thickness | 1-3/4" to 2-1/4" |
| ANSI Number | 3 |
| BAA Qualified | Yes |
| Base Material | Stainless Steel |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Package Length | 51" |
| Rail Size | G Rail for 43" to 48" door widths |
| Includes Cylinders | yes |
| Handed | Non-Handed |
| Dogging Options | Hex Key Dogging |
