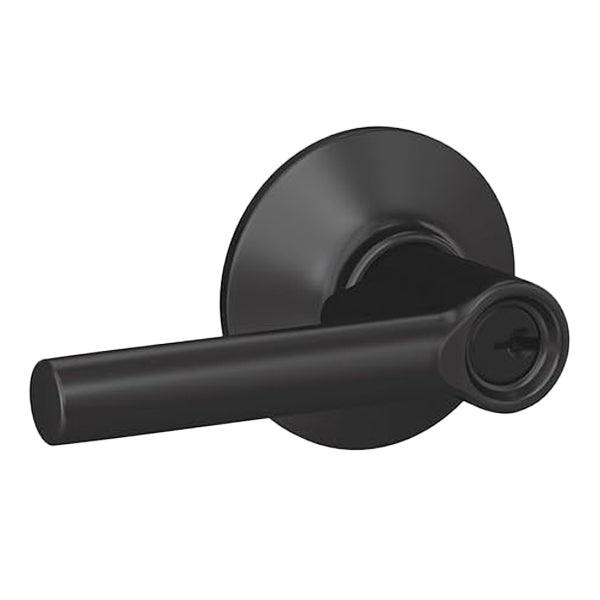

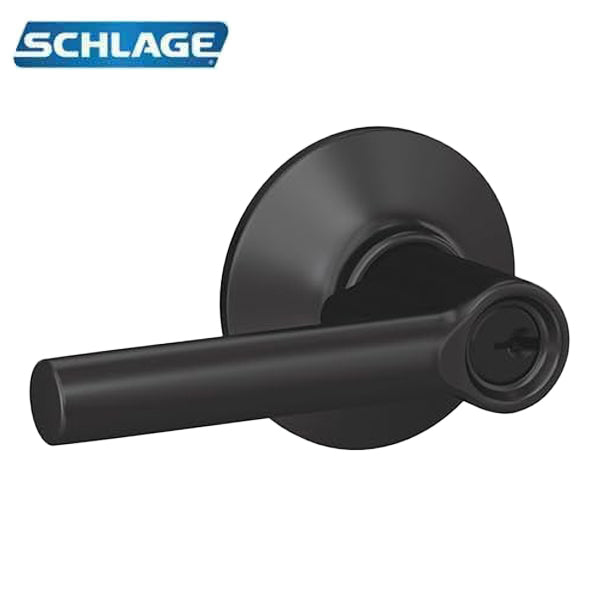

Schlage - F51A - Single Cylinder Keyed Entry - Broadway Lever - Flat Black Coated - Round Rose - Keyed Different - Grade 2
Available to Order
SKU:
SCH-F51A-BRW-622-KD
NSID:
72424
- $70.35
-
$84.42 - $70.35
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
A lot’s changed since Walter Schlage opened his first shop in 1920. At the same time, a lot hasn’t. Schlage are still meticulous designers, painstaking engineers, and proud craftsmen. Nearly a century later, they’re proud to grace your doors with a growing menu of stylish, top-grade hardware.
Features
- Applications: Residential single-and multi-family doors.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2.
- Schlage has transitioned their FA series knobs and levers to the F Series.
- Typically used on exterior doors.
- Unlocked/locked by key outside or by turn-button inside.
- Interior screws are not concealed.
- Turning the interior lever unlocks exterior lever: Meaning this lock is Panic Proof.
- Easy 3-step installation, only a screwdriver needed.
- Quality materials and construction for exceptional security.
- Quality finishes coordinate with plumbing and lighting.
| Specifications | |
|---|---|
| Backset |
Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset. |
| Strike | 1-5/8" x 2-1/4" Radius Corner Faceplate, 7/8" Housing Diameter, 1/2" Throw, Round Corner. |
| Keyway |
C |
| Door Thickness |
1-3/8" - 1-3/4" (35mm - 44mm). |
| Pin |
5 Pin |
| Latch Type |
Dead Latch (Guarded) |
| Projection |
2-1/4" |
| Cylinder | 5 Pin Schlage C |
| Function | Keyed Entry |
| Num of Keys |
2 |
| Handle Design |
Broadway |
| Locking Mechanism |
Thumbturn |
| Panic Proof |
No |
| Rose Shape |
Round |
