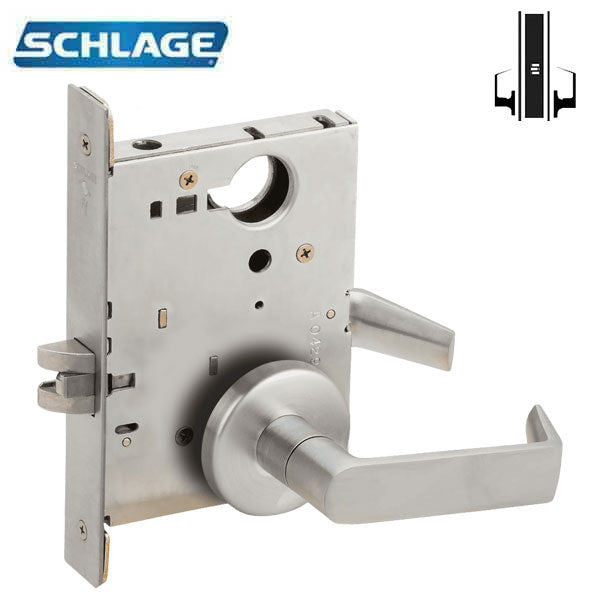

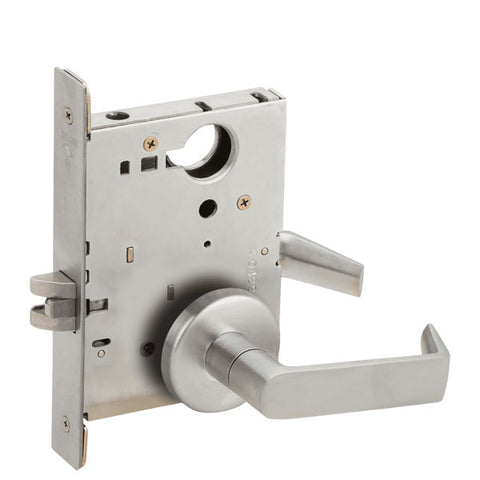

Schlage - L9010 - L Series - B Rose - Mortise Lock with Latchbolt - Passage - Grade 1

Available to Order
SKU: SCH-L9010-06B-626
NSID: 62864

Please Note: This product has a lead time

$519.90
$623.88
$519.90

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. The 06B is the 07 Straight Return Lever and B Rose.

Features

  • 3 Hour Fire Rated
  • Grade 1
  • Non-Handed Field Reversible
  • Passage: Latchbolt retracted by lever from either side at all times. Inside lever is always free for immediate egress.

Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Lock Function

9010-Passage

Latchbolt retracted by lever from either side at all times. Inside lever is always free for immediate egress.

Handing Non Handed - Field Reversible
Door Thickness 1 3/4" (44 mm)
Backset 2 3/4" (70 mm) only
Bolt  Locks are without deadbolt
Latch
3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Material Brass, Bronze
Case size 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25mm)
Strike 1/4" x 4-7/8" Square corner, 1-3/16" lip, dustbox
Certifications
ANSI/BHMI Certified A156.13-2017 Series 1000
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fire Door
Manufacturer Warranty 3 Years
