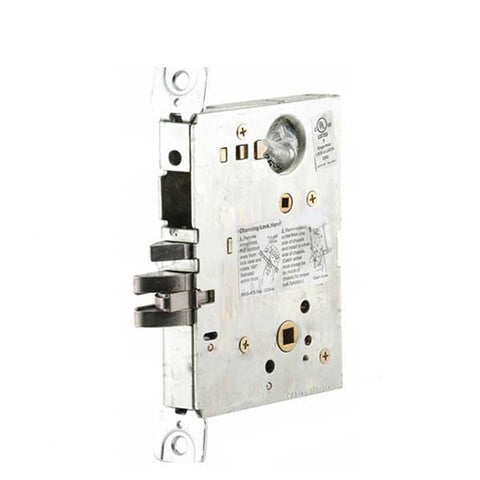

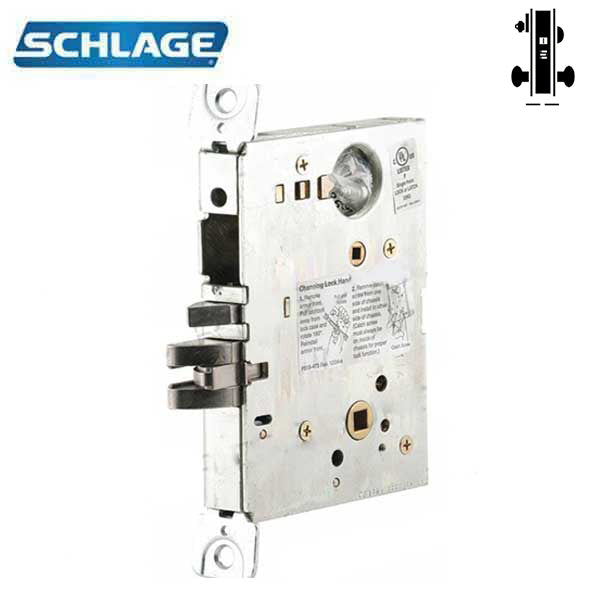

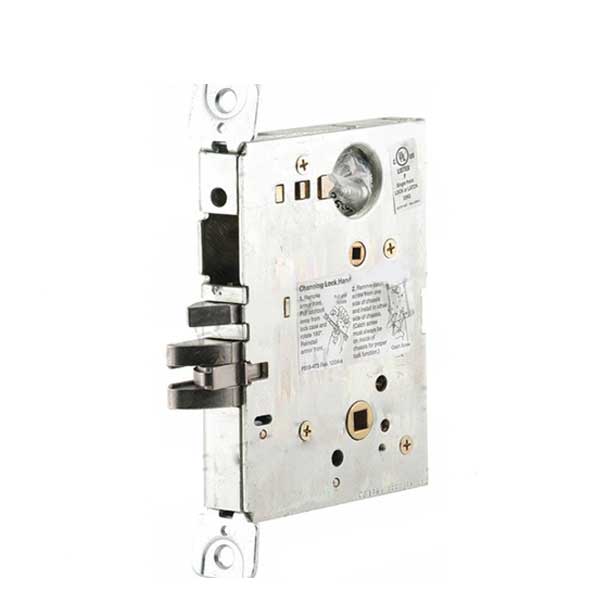

Schlage - L9050LB - L Series Mortise Lock Body - Entrance / Office - Grade 1
Available to Order
SKU:
SCH-L9050LBRH-134
NSID:
6680
- $236.04
-
$245.28 - $236.04
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage L Series has long been the benchmark for mortise locks.
Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application
More Information Below
| Lock Function | ANSI F04 Entry/Office lock - Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumb turn |
| Handing | Right Hand |
| Door Thickness | 1 3/4" (44 mm) |
| Cylinder | No Cylinder - Lock Body Only |
| Backset | 2 3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm) |
| Spacing | Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm) |
| Strike | 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fide Door |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
