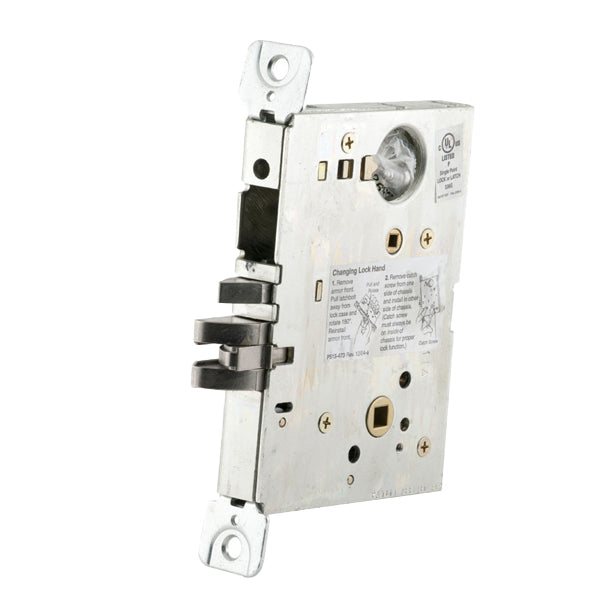

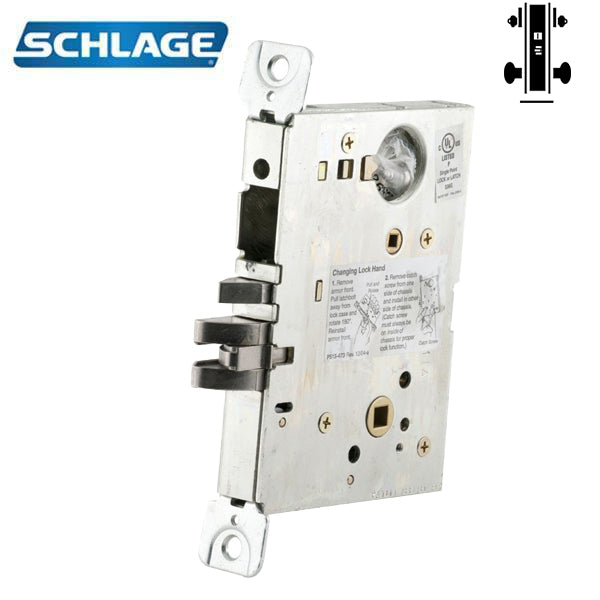

Schlage - L9082LB - L Series Mortise Lock Body - Institutional - Grade 1 - UHS Hardware
Schlage - L9082LB - L Series Mortise Lock Body - Institutional - Grade 1 - UHS Hardware

Schlage - L9082LB - L Series Mortise Lock Body - Institutional - Right Handed - Grade 1

In Stock
SKU: SCH-L9082LB
NSID: 6679

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$234.72
$294.00
$234.72

The Schlage L Series has long been the benchmark for mortise locks.
Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application

More Information Below

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Lock Function

ANSI F30 Institution lock - Latchbolt Retracted by Key From Either Side, Knob/Lever on Both Sides Always Inoperative, Auxiliary Latch Deadlocks Latchbolt When Door is Locked

Handing Right-Handed
Door Thickness 1 3/4" (44 mm)
Cylinder No Cylinder - Lock Body Only
Backset 2 3/4" (70 mm) only
Bolt 1" (25 mm) throw stainless steel deadbolt
Latch
3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Material Stainless Steel / Zinc
Case size 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm)
Spacing Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm)
Strike 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box
Certifications
ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fide Door
Manufacturer Warranty Limited lifetime mechanical warranty



Compatible With
