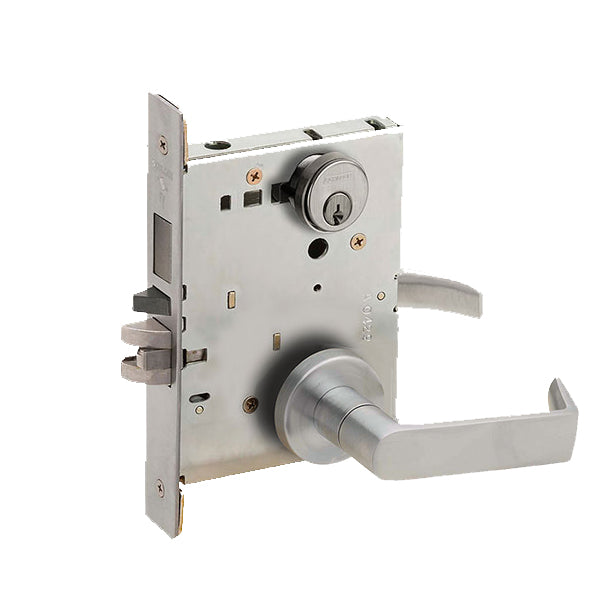

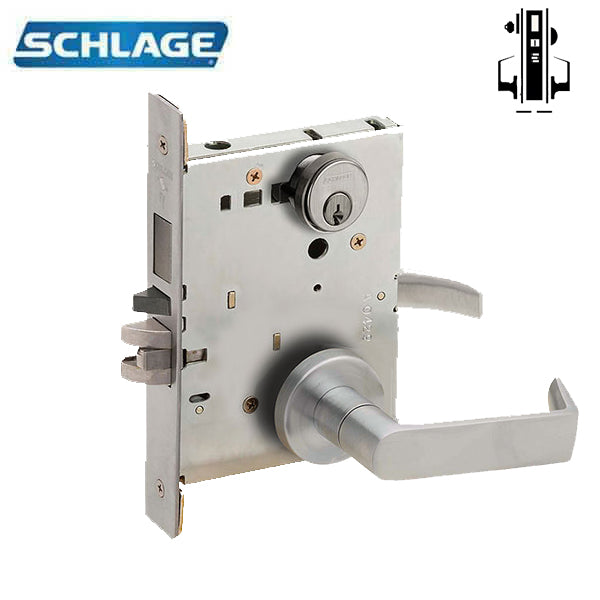

Schlage - L9453P - L Series - Mortise Lock with Deadbolt - Entrance - 6 Pin Cylinder - Grade 1
Available to Order
SKU:
SCH-L9453P-06A-626
NSID:
38011
- $858.65
-
$714.00 - $858.65
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today.
Features
- Fire Rated
- Grade 1
- Non-Handed Field Reversible
- 6 Pin Cylinder
Specifications
| Lock Function | 9453-Entrance Office Lock with Deadbolt |
| Handing | Non Handed - Field Reversible |
| Door Thickness | 1 3/4" (44 mm) |
| Cylinder | 6-pin Everest 29 S123 |
| Keyed | Different, 2 Keys (Included) |
| Backset | 2 3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Material | Stainless Steel / Zinc |
| Case size | 4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm) |
| Keyway |
Schlage C Keyway |
| Strike | 1 1/8" x 3 1/2" (29 mm x 89 mm) with dust box |
| Certifications |
ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fide Door |
| Manufacturer Warranty | 3 Years |
Downloads:
