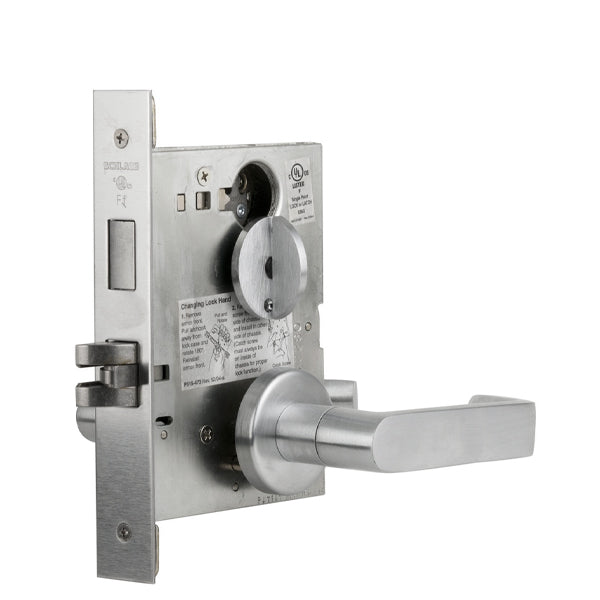

Schlage L9480P - L Series Mortise Lockset w/ Deadbolt - 26D - Satin Chrome - Storeroom - Grade 1
Schlage L9480P - L Series Mortise Lockset  w/ Deadbolt - 26D - Satin Chrome - Storeroom - Grade 1
Schlage L9480P - L Series Mortise Lockset  w/ Deadbolt - 26D - Satin Chrome - Storeroom - Grade 1
Schlage L9480P - L Series Mortise Lockset  w/ Deadbolt - 26D - Satin Chrome - Storeroom - Grade 1
Schlage L9480P - L Series Mortise Lockset  w/ Deadbolt - 26D - Satin Chrome - Storeroom - Grade 1

Schlage L9480P - L Series Mortise Lockset w/ Deadbolt - 26D - Satin Chrome - Storeroom - Grade 1

$748.30
Available: In Stock
Wishlist
  • Product SKU: SCH-L9480P-06A-626
  • SCH-L9480P-06A-626
    Item Number: 8008

    The Schlage L Series has long been the benchmark for mortise locks. Grade 1 certified these locks go beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application.

    More Information Below

    $748.30
Lock Function

L9480 Storeroom Function with Deadbolt - Latchbolt retracted by outside key or inside knob/lever • Outside knob/lever always
fixed • Deadbolt actuation by outside key or inside thumbturn • Inside knob/lever actuation retracts both deadbolt and latchbolt
• Auxiliary latch deadlocks latchbolt when door is closed • Inside lever always free for immediate egress

Handling Non-Handed
Door Thickness 1 3/4" (44 mm)
Cylinder Standard: Pin and tumbler mechanism in the Patented Schlage Everest 29 S123 keyway (6-pin); two nickel silver cut keys per lock
Backset 2 3/4" (70 mm) only
Bolt 1" (25 mm) throw stainless steel deadbolt
Latch
3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Trim 06 Lever - ADA Compliant
Rose 2 1⁄8" (54 mm) diameter
Material Stainless Steel / Zinc
Case size 4 7⁄16" x 6 1⁄16" x 1" (113 mm x 154 mm x 25 mm)
Spacing Knob or lever to cylinder: 3 7⁄8" (98 mm); knob or lever to thumbturn hub: 2 11⁄16" (68 mm)
Strike

Standard: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) x

1-3⁄16" (30 mm) lip to center with dust box

Certifications
ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fide Door
Manufacturer Warranty Limited lifetime mechanical warranty



 Installation Instructions



Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
