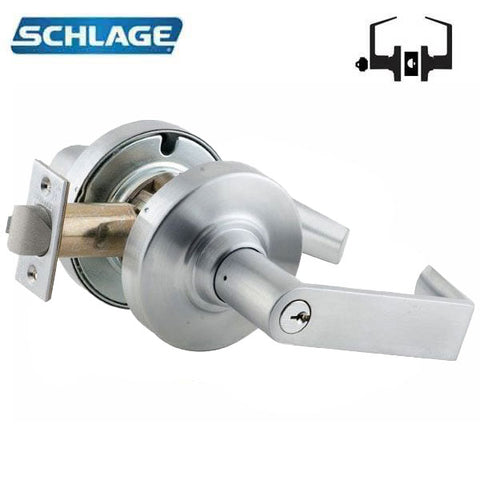

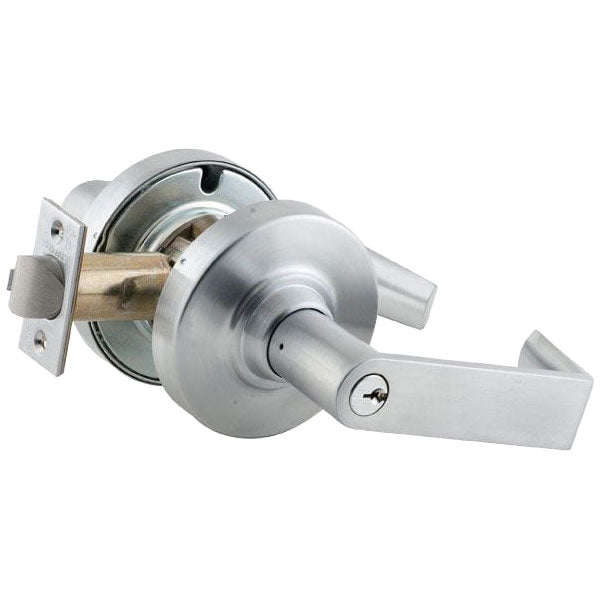

Schlage - ND80PD - Commercial Leverset - Storeroom - Rhodes Lever - Non-Handed - Satin Chrome - Grade 1
Available to Order
SKU:
SCH-ND80PD-RHO-626
NSID:
66672
- $446.49
-
$535.78 - $446.49
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail, and other commercial applications. With 31 mechanical functions, the ND's range spans from simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Features:
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- Supports standard, SFIC, and FSIC cylinder formats
- Fire Rated for 3 Hours
- RHO - Rhodes Lever Style
- Support for 10 non-Schlage cores
Specifications
| Lock Function | F86 - Storeroom - Outside Lever is Fixed; Entrance by Key Only; Inside Lever Always Unlocked |
| Handing | Non-Handed |
| Door Thickness | 1-5/8" to 2-1/8" (41 to 54 mm) |
| Faceplate Size | 1-1/8" x 2-1/4" |
| Cylinder | 6-Pin Patented Everest 29 |
| Keyway | Schlage C - KD |
| Backset | 2 3/4" (70 mm) only |
| Bolt | 1/2" throw via Oil Impregnated Stainless Steel |
| Latch |
1" |
| Lever | RHO - Rhodes Lever Style |
| Material | Stainless Steel / Zinc |
| Rose |
3-7/16" |
| Strike | 1-1/4" x 4-7/8" x 1-3/16" |
| Finish | 626 - Satin Chrome |
| Certifications |
ANSI/BHMA A156.2-2003, Exceeds 800,000 ANSI Cycles, Meets FF-H-106C Series 161, MEA Certification, Grade 1, Fire Rated for 3 Hours |
| Manufacturer Warranty | 10 years mechanical |
