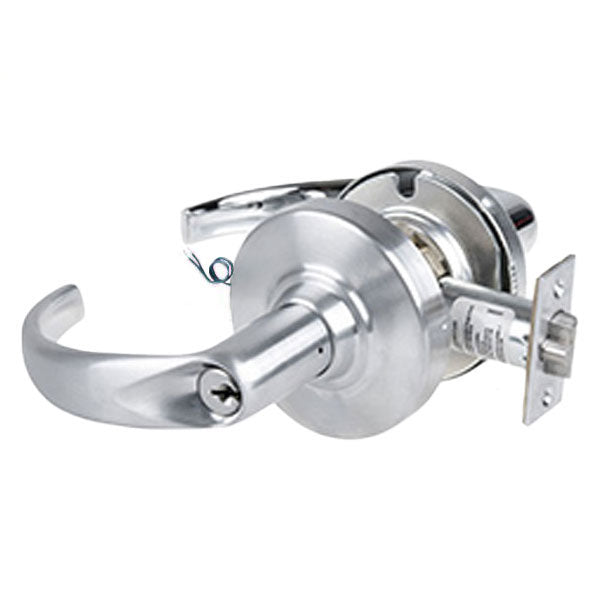

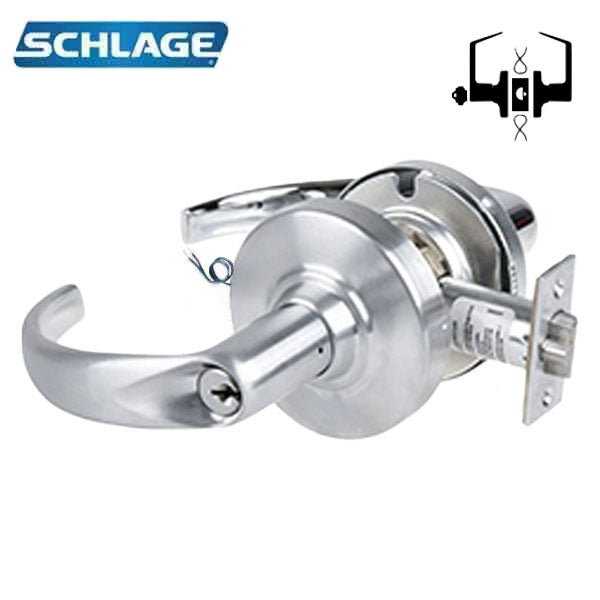

Schlage - ND80PDEL-SPA - Electrified Cylindrical Lock - Storeroom - Fail Safe - Sparta Lever - Non-Handed - Satin Chrome - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $629.43
-
$755.31 - $629.43
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail, and other commercial applications. With 31 mechanical functions, the ND's range spans from simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications. Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications. Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
The electrified ND is ideally used in;
- High-traffic areas, where line power ensures continuous operation
- New Construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building
Features:
All mechanical features plus:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
- Six electrified functions for application flexibility
- Outside lever continuously locked electrically
- Unlocked by key outside or by switch or power failure
- Auxillary latch deadlocks latchbolt when door is closed
- Inside lever always free for immediate exit
Specifications:
| Function | 80EL-Fail Safe |
| Handing | Non-Handed |
| Door Thickness | 1-3/4" to 2" |
| Cylinder Type | Conventional Cylinder |
| Backset | 2-3/4" |
| Latch Type | Guarded Latch |
| Latch Number | 14-047 |
| Lever | SPA - Sparta |
| Material | Brass or Bronze |
| Rose | 3-7/16 IN Diameter |
| Strike Type | ASA |
| Strike Width | 1-1/4" |
| Strike Number | 10-025 |
| Finish | 626 Satin Chrome |
| Certifications | ADA Compliant |
| ANSI/BHMA | ANSI?BHMA Certified A 156.2-2003 |
| Warranty | 1 Year |
| Operating Voltage | 12VDC/24VDC |
| Power | Hard Wired |
| Number of Pins | 6 |
| Keying | Keyed Different |
| Screws | Combination |
| Strike Height | 4-7/8" |
| Lock Face Size | 2-1/4" X 1-1/8" |
| Switch Type | None |
| Amp Draw | 0.23 |
