$538.02
Available: In Stock
Wishlist
  • Product SKU: ACSI-ACND80PDEU-626-RH-24
  • ACSI-ACND80PDEU-626-RH-24
    Item Number: 7847

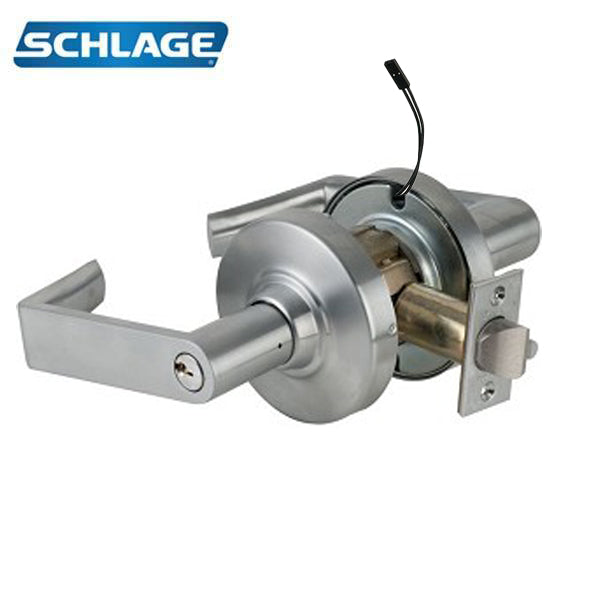

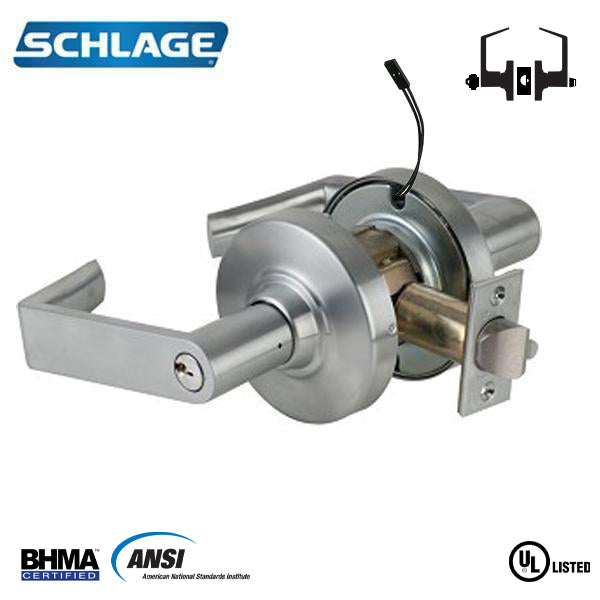

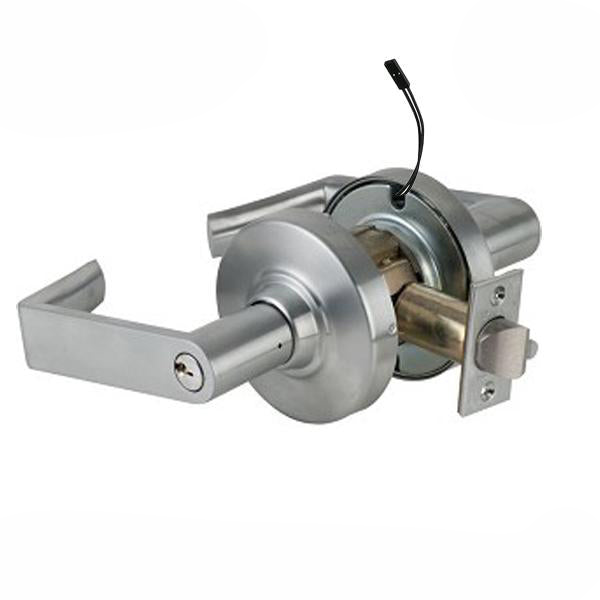

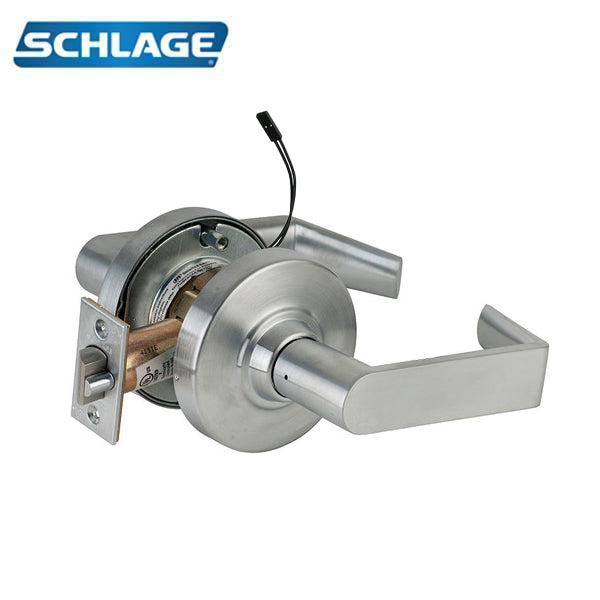

    The Schlage ND Wired Electric Series Wired electrified locks complement the mechanical offerings and are typically incorporated into a wired access control system or used independently with a remote access switch (e.g. switch behind a receptionist desk). It features universal input voltage and auto-detects 12 through 24 VDC for installation flexibility.

     More Information Below

    $538.02
Lock Function

Storeroom function (outside cylinder)
ND80PDEU: Electrically unlocking/fail secure

Handling Non-Handed
Door Thickness 1 5/8" to 2 1/8" Thick (41MM-54MM) standard
Cylinder 6 Pin Keyway Schlage Standard with two patented nickel silver keys per lock
Backset 2 3/4" (70 mm) only
Latch 1/2" Steel (12MM) Throw, deadlocking on the keyed functions
Material Stainless Steel / Zinc Plated for corrosion resistance
Faceplate
Stainless steel - 1 1/8" x 2 1/4" (29MM x 57MM) Square Corner, Beveled
Time Lever Style
Rhodes Stye Lever
Finish 626 - Satin Chrome
Electrical Requirement  24V AC, .35 amps or 24V DC, .15 amps.
Certifications
ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fide Door
Manufacturer Warranty Limited lifetime mechanical warranty




Please Note: Bulk price rates are available! Call us at 1-800-878-6604.

ACSI-ACND80PDEU-626-RH-24
Item Number: 7847

The Schlage ND Wired Electric Series Wired electrified locks complement the mechanical offerings and are typically incorporated into a wired access control system or used independently with a remote access switch (e.g. switch behind a receptionist desk). It features universal input voltage and auto-detects 12 through 24 VDC for installation flexibility.

 More Information Below

Lock Function

Storeroom function (outside cylinder)
ND80PDEU: Electrically unlocking/fail secure

Handling Non-Handed
Door Thickness 1 5/8" to 2 1/8" Thick (41MM-54MM) standard
Cylinder 6 Pin Keyway Schlage Standard with two patented nickel silver keys per lock
Backset 2 3/4" (70 mm) only
Latch 1/2" Steel (12MM) Throw, deadlocking on the keyed functions
Material Stainless Steel / Zinc Plated for corrosion resistance
Faceplate
Stainless steel - 1 1/8" x 2 1/4" (29MM x 57MM) Square Corner, Beveled
Time Lever Style
Rhodes Stye Lever
Finish 626 - Satin Chrome
Electrical Requirement  24V AC, .35 amps or 24V DC, .15 amps.
Certifications
ANSI/BHMI Certified A156.13-2012
Commercial Grade 1
Lock Body Mortises Inside the Edge of the Door
UL Listed for 3 Hour Fide Door
Manufacturer Warranty Limited lifetime mechanical warranty




Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
