SDC - 110IV - Electric Bolt Lock - Mortise - Failsafe - Less Auto-Relock Switch - 12/24VDC - 628 - Aluminum
SDC - 110IV -  Electric Bolt Lock - Mortise - Failsafe - Less Auto-Relock Switch  - 12/24VDC - 628 - Aluminum
SDC - 110IV -  Electric Bolt Lock - Mortise - Failsafe - Less Auto-Relock Switch  - 12/24VDC - 628 - Aluminum
SDC - 110IV -  Electric Bolt Lock - Mortise - Failsafe - Less Auto-Relock Switch  - 12/24VDC - 628 - Aluminum
SDC - 110IV -  Electric Bolt Lock - Mortise - Failsafe - Less Auto-Relock Switch  - 12/24VDC - 628 - Aluminum

SDC - 110IV - Electric Bolt Lock - Mortise - Failsafe - Less Auto-Relock Switch - 12/24VDC - 628 - Aluminum

$239.00
Available: In Stock
Wishlist
  • Product SKU: SDC-110IV
  • SDC-110IV
    Item Number: 8562

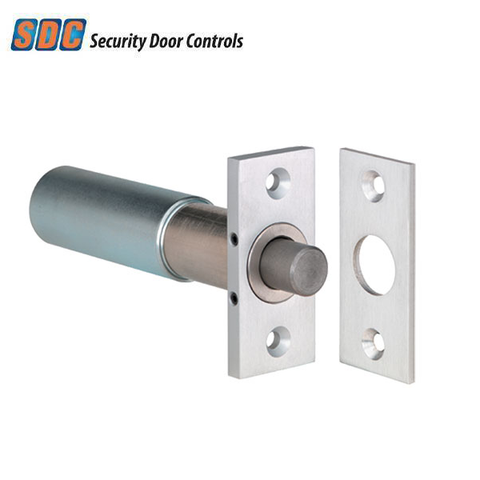

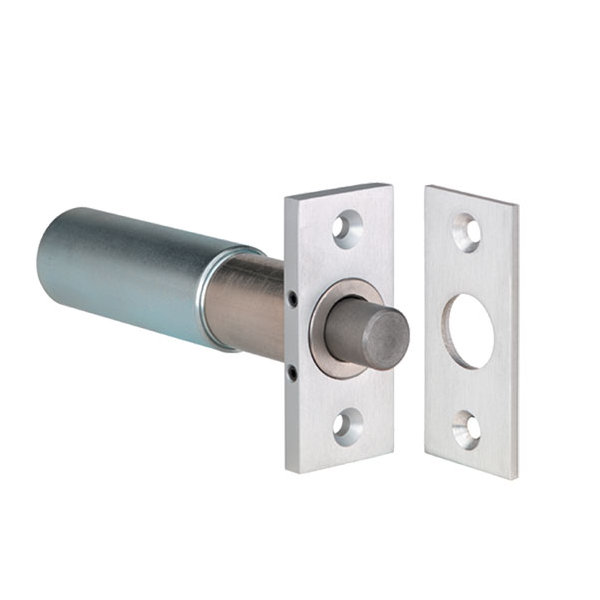

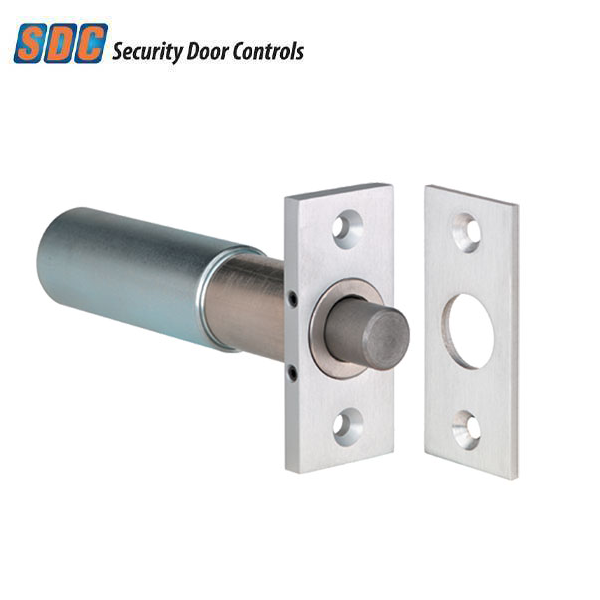

    The Fail Safe Electric 110 Bolt Lock are the most basic electric bolt locks available. The bolt assembly is adjustable forward up to 1” past the face plate to accommodate wide
    door gaps or special applications

    Applications

    • Pharmacy Cabinets
    • Gun Cabinets
    • Utility Cabinets
    • Display Cabinets
    • OEM Applications
    • Swing and Sliding Door
    $239.00
 Fail Safe / Fail Secure Fail Safe
Faceplate 2-3/4” H x 1-1/4” W
Auto Relock Switch No
Voltage Dual 900/450 mA @ 12/24 VDC
Bolt 1/2” dia. x 1/2” throw
Strike Mortise strike standard
Finish 628 Anodized Aluminum
Note Not for wood frames.
