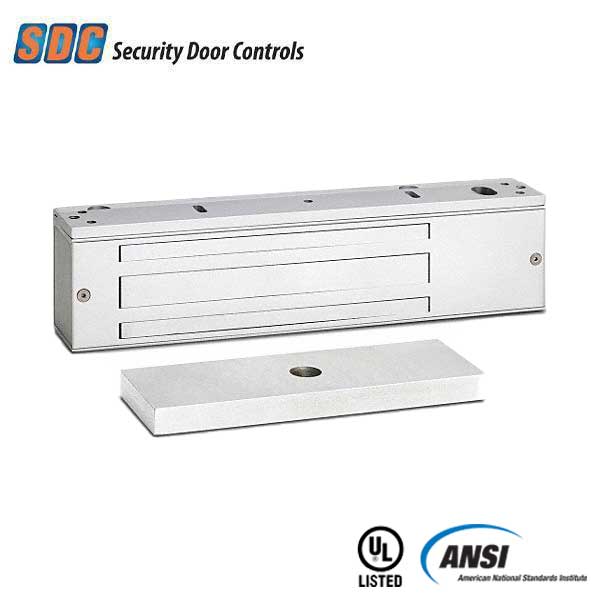

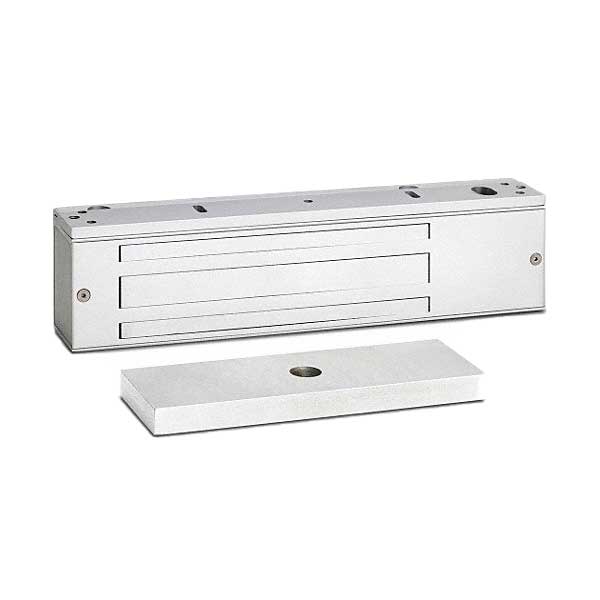

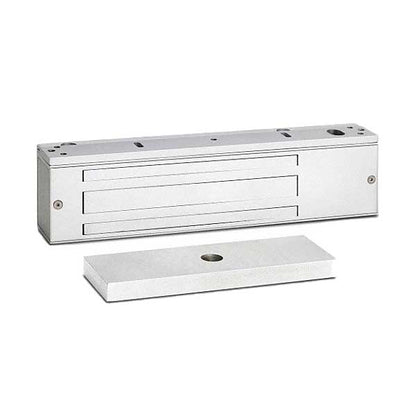

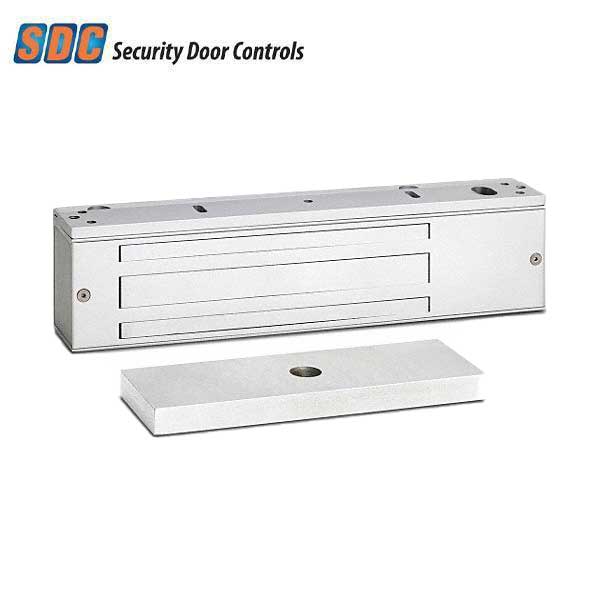

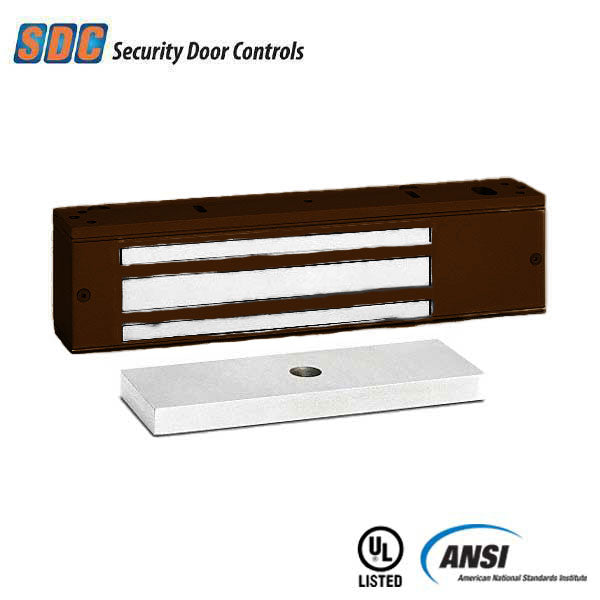

SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1
SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1
SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1
SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1
SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1
SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1
SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1
SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1
SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1

SDC - 1511V - Single Magnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Optional Finish - Grade 1

Availability: In Stock
Wishlist
  • Product SKU: SDC-1511V
  • NSID:
  • SDC-1511V

    The SDC 1500 series EMLocks® are easy to stock, install, upgrade, and maintain. They include a lifetime warranty and have 1650lbs of holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.

    Features:

    • Comes with 1650lb Holding Forces
    • Autosensing 12/24 VDC Voltage Input
    • Uniform Design & Installation
    • Identical Housing, Template & Accessories
    • Quick Mount Assembly
    • Modular Design & Modular Field Upgrade Kits
    • Field Upgradeable Without Removing From Frame
    • ANSI/BHMA Grade 1 Compliant
    • UL, CSFM, MEA Listed



    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications:

Construction: Solid Metal
Lock Function: Electromagnetic Lock
Holding Force: 1650 LB / 748 KG
Voltage: 12/24VDC Voltage Sensing Input
Current: 350mA @ 24VDC; 670mA @ 12VDC
Dimensions: 11” L x 2-7/8” H x 1-5/8” D
Finish: Satin Aluminum - 628
Dark Bronze - 710
Certifications: ANSI/BHMA Grade 1 Compliant. UL, CSFM, MEA Listed
Warranty: Manufacturer Lifetime Warranty



Downloads:

SDC-1511V

The SDC 1500 series EMLocks® are easy to stock, install, upgrade, and maintain. They include a lifetime warranty and have 1650lbs of holding force. Compatible with any access control system, all EmLocks® are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxyless design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.

Features:

  • Comes with 1650lb Holding Forces
  • Autosensing 12/24 VDC Voltage Input
  • Uniform Design & Installation
  • Identical Housing, Template & Accessories
  • Quick Mount Assembly
  • Modular Design & Modular Field Upgrade Kits
  • Field Upgradeable Without Removing From Frame
  • ANSI/BHMA Grade 1 Compliant
  • UL, CSFM, MEA Listed


Specifications:

Construction: Solid Metal
Lock Function: Electromagnetic Lock
Holding Force: 1650 LB / 748 KG
Voltage: 12/24VDC Voltage Sensing Input
Current: 350mA @ 24VDC; 670mA @ 12VDC
Dimensions: 11” L x 2-7/8” H x 1-5/8” D
Finish: Satin Aluminum - 628
Dark Bronze - 710
Certifications: ANSI/BHMA Grade 1 Compliant. UL, CSFM, MEA Listed
Warranty: Manufacturer Lifetime Warranty
