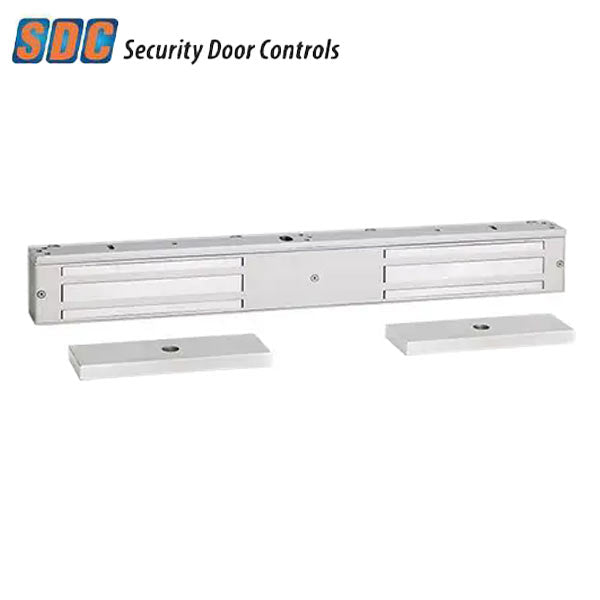

SDC - 1512V - Double Electromagnetic Lock - Surface Mount - 1650lbs. - 12/24VDC - Satin Aluminum - Grade 1
Available to Order
SKU:
SDC-1512V-628
NSID:
32065
- $630.22
-
$756.26 - $630.22
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The SDC 1512V incorporates their patented EMLock design which represents the pinnacle of magnetic lock evolution. The modular EMLock assembly makes them easy to stock, install, upgrade and maintain. Compatible with any access control system, all EMLocks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws.
Features:
- Double door electromagnetic lock
- 1650 lbs. holding force
- 12-Volt/24-Volt DC voltage
- 700 mA at 24 -Volt DC, 1.34 mA at 12-Volt DC current draw
- Includes machine screws
Specifications:
| Finish: | 628 Satin Aluminum |
| Door Type: | Swing, Double |
| Housing: | Aluminum |
| Holding Force: | 1,650 lbs |
| Dimensions: | 22” x 27/8” x 15/8” Housing 73/8” x 23/8” x 5/8” Armature |
| Weight: | 27 lbs |
| Input: | 12/24 VDC ± 10% Auto-sensing |
| Current Draw: | 700 mA @ 24 VDC 1.34 Amps @ 12 VDC |
| Door Position Status (DPS) Bond Alert Status (BAS) |
SPDT 250 mA @ 30 VDC Resistive |
| Anti-Tamper Status (ATS): | SPDT 5 Amp @ 125 VAC Resistive |
| Relock Time Delay (RTD): | Electronic Timer, Adjustable (1-30 seconds) |
| Certifications: | Grade 1, UL 10C, UBC, ANSI/BHMA A156.23, CSFM, MEA. |
| Warranty: | Lifetime limited warranty |
