$280.00 $349.99
Available: Out of Stock
Wishlist
  • Product SKU: SDC-1575U
  • SDC-1575U

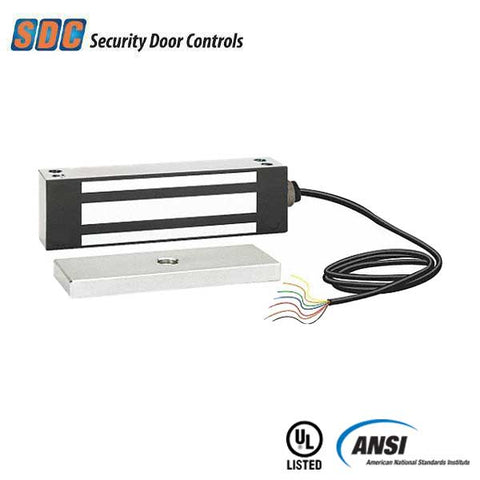

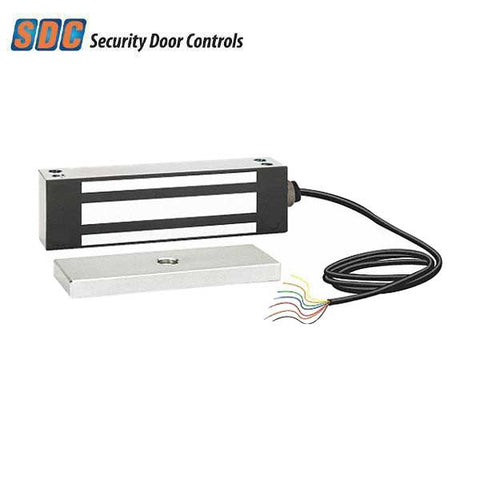

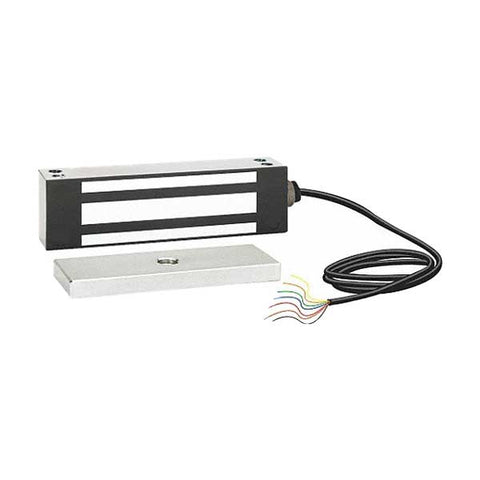

    SDC’s magnetic gate locks provide 1200lbs of holding force and enables the access and egress control of pedestrian and vehicle gates. SDC’s magnetic gate locks are compatible with manual and automatic, swinging and sliding, tubular and iron gates. The floating armature design compensates for gate misalignment with the electromagnet.

    Features:

    • Stainless Steel Case
    • Epoxy Filled For Weather Resistance
    • Threaded Conduit Fitting
    • Built-In Voltage Kickback Protection
    • Low Power Consumption
    • Built-In Bond Sensor (BAS)
    • Built-In Door Position Sensor (DPS)
    • ANSI/BHMA Grade 1 Compliant
    • UL, CSFM, MEA Listed


    $280.00

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Construction: Stainless Steel
Lock Function: Electromagnetic Gate Lock
Holding Force: 1200 LB / 544 KG
Dual Voltage: 12/24VDC Voltage
Current: 450mA @ 12VDC; 225mA @ 24VDC
Sensor: Magnetic Bond Sensor and Door Position Sensor Standard
Sensor Current: SPDT, 250mA @ 30VDC
Cable: 3ft
Wire: 24 AWG
Conduit Fitting 1/2’’ Length, 3/4’’ outside thread, 1/2’’ inside thread
Dimensions: 8-11/16’’L x 2-1/2’’H x 1-5/8’’D
Finish: Satin Stainless Steel - 630
Certifications: ANSI/BHMA Grade 1 Compliant. UL, CSFM, MEA Listed
Warranty: Manufacturer Lifetime Warranty
