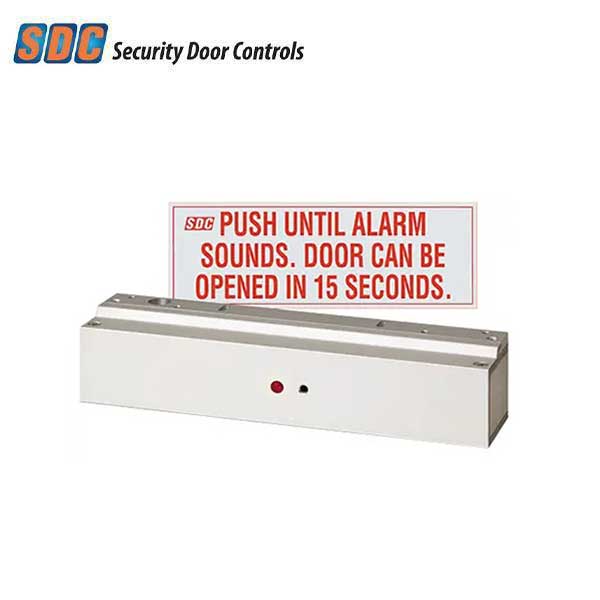

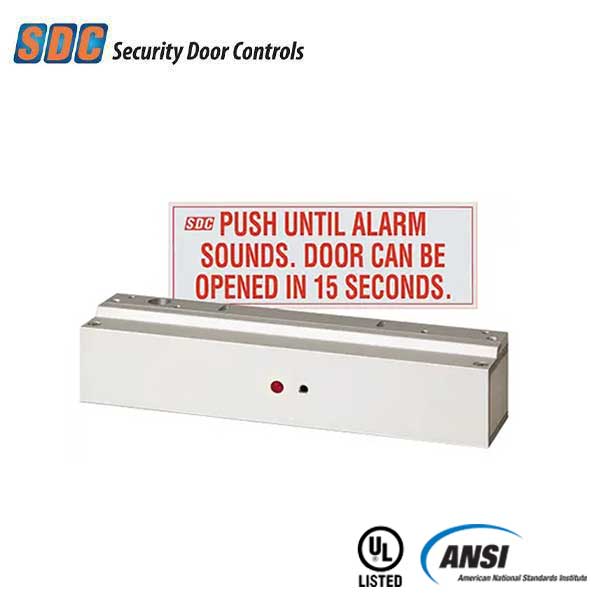

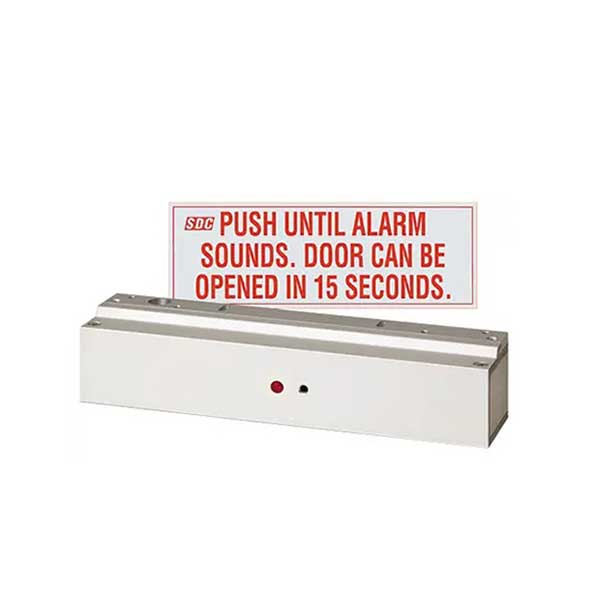

SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1
SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1
SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1
SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1
SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1
SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1
SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1
SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1
SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1

SDC - 1581S - Delayed Egress Single Mini Magnetic Lock - NFPA 101 Code Compliant - Optional Door Position Sensor - Integrated - Surface Mount - 650lbs - 12/24VDC - Aluminum - Grade 1

Availability: In Stock
Wishlist
  • Product SKU: SDC-1581SNDV
  • NSID:
  • SDC-1581SNDV

    The Mini Exit Check® is designed to meet the needs of long term care and commercial facilities that require a smaller, less obtrusive, and less expensive delayed egress lock that is better suited for minimum security needs. When unauthorized egress is initiated, the Exit Check® delays egress through the door for a period of 15 seconds. Meanwhile, the person exiting must wait allowing personnel or security respond. The door unlocks after the 15 second delay period has elapsed, permitting egress. A signal from the fire/life safety system will release the lock immediately for uninhibited egress in an emergency. Manual Power Up Feature requires a keypad adjacent to the device (Sold Separately)

    Features:

    • 650lbs Holding Force
    • NFPA 101, Fixed 15 exit delay, 0/1 second nuisance delay.

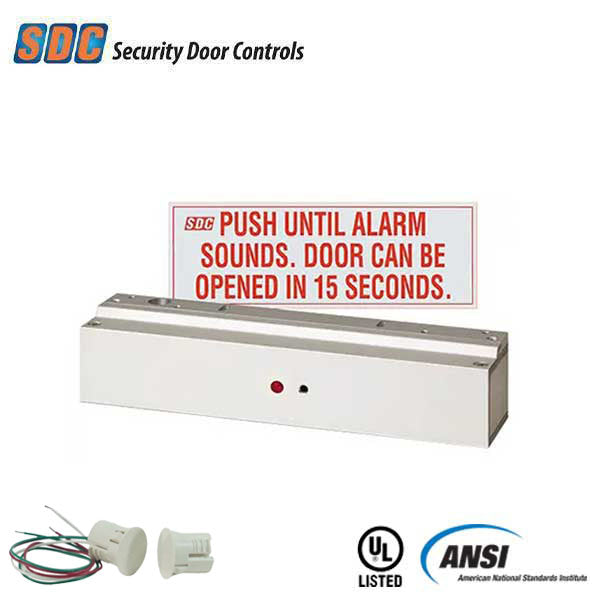

    • Optional Door position sensor. Indicates door open and door closed
    • Subdued Alarm with 2 Distinct Tones: Alarm Activation Intermittent, Door Release
    • Manual Power Up - Only after power restoration and fire panel reset may the lock be reset manually at the opening.
    • Choice of Activation Trigger: Door Movement, Exit Device w/ REX Switch, Touch Sense Bar w/REX Switch
    • Instant Reset from Bypass mode for interfacing with Patient Monitoring Systems.
    • Self-aligning Vandal resistant Proximity Sensor Trigger
    • Auto Sensing 12/24VDC input power
    • Low Power Consumption
    • 5 foot Power Cable



    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

    Specifications:

    Construction: Solid Stainless Steel
    Operation Mode: 15 second fixed exit delay, 2 second nuisance delay.
    Field selectable manual power up after emergency
    release for California and OSHPD compliance
    Sustained Bypass Input: 1 amp @ 30V resistive
    Request to Exit: Normally open, dry
    Fire Alarm Release:  Alarm panel closed dry contact. Opening of contact
    releases lock.
    Alarm Output: SPDT Dry, 1 Amp @ 30VDC
    Lock Secure Unlocked
    Output:
    SPDT Dry, 1 Amp @ 30VDC
    Voltage: 12/24VDC Voltage Auto Sensing
    Current: 500mA @ 12VDC | 320mA @ 24VDC
    Lock Dimensions: 10”L x 2”H x 2-3/8”D
    Armature Dimensions: 7 3/8" L x 2 3/8" H x 9/16" D
    Sign Dimensions: 13" L x 4 1/2" H
    Finish: Satin Aluminum - 628
    Certifications: ANSI / BHMA Grade 1 , UL Listed, UBC Compliant
    Warranty: 5-Year Manufacturer Warranty



    Downloads:

    SDC-1581SNDV

    The Mini Exit Check® is designed to meet the needs of long term care and commercial facilities that require a smaller, less obtrusive, and less expensive delayed egress lock that is better suited for minimum security needs. When unauthorized egress is initiated, the Exit Check® delays egress through the door for a period of 15 seconds. Meanwhile, the person exiting must wait allowing personnel or security respond. The door unlocks after the 15 second delay period has elapsed, permitting egress. A signal from the fire/life safety system will release the lock immediately for uninhibited egress in an emergency. Manual Power Up Feature requires a keypad adjacent to the device (Sold Separately)

    Features:

    • 650lbs Holding Force
    • NFPA 101, Fixed 15 exit delay, 0/1 second nuisance delay.
    • Optional Door position sensor. Indicates door open and door closed
    • Subdued Alarm with 2 Distinct Tones: Alarm Activation Intermittent, Door Release
    • Manual Power Up - Only after power restoration and fire panel reset may the lock be reset manually at the opening.
    • Choice of Activation Trigger: Door Movement, Exit Device w/ REX Switch, Touch Sense Bar w/REX Switch
    • Instant Reset from Bypass mode for interfacing with Patient Monitoring Systems.
    • Self-aligning Vandal resistant Proximity Sensor Trigger
    • Auto Sensing 12/24VDC input power
    • Low Power Consumption
    • 5 foot Power Cable


      Specifications:

      Construction: Solid Stainless Steel
      Operation Mode: 15 second fixed exit delay, 2 second nuisance delay.
      Field selectable manual power up after emergency
      release for California and OSHPD compliance
      Sustained Bypass Input: 1 amp @ 30V resistive
      Request to Exit: Normally open, dry
      Fire Alarm Release:  Alarm panel closed dry contact. Opening of contact
      releases lock.
      Alarm Output: SPDT Dry, 1 Amp @ 30VDC
      Lock Secure Unlocked
      Output:
      SPDT Dry, 1 Amp @ 30VDC
      Voltage: 12/24VDC Voltage Auto Sensing
      Current: 500mA @ 12VDC | 320mA @ 24VDC
      Lock Dimensions: 10”L x 2”H x 2-3/8”D
      Armature Dimensions: 7 3/8" L x 2 3/8" H x 9/16" D
      Sign Dimensions: 13" L x 4 1/2" H
      Finish: Satin Aluminum - 628
      Certifications: ANSI / BHMA Grade 1 , UL Listed, UBC Compliant
      Warranty: 5-Year Manufacturer Warranty
