SDC - 423MU - Single Gang Square Push Button Switch - 2" - DPDT - Fail Safe - Integrated Electronic Timer - 12/24VDC - 630 - Dull Stainless Steel
In Stock
SKU:
SDC-423MU
NSID:
21969
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $94.73
-
$115.25 - $94.73
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

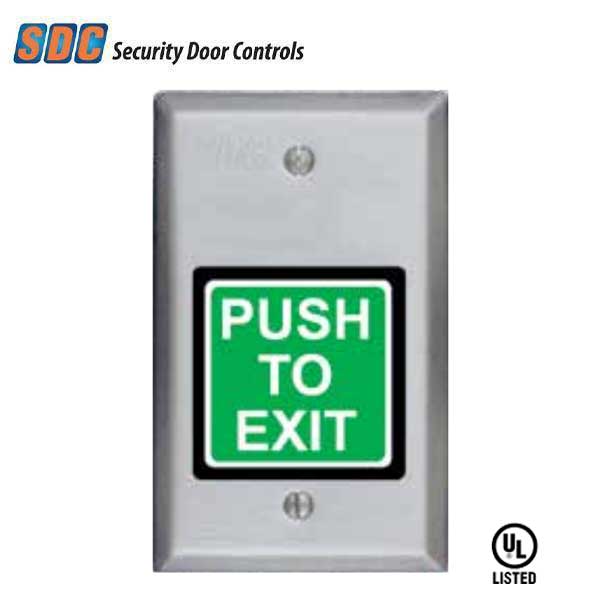

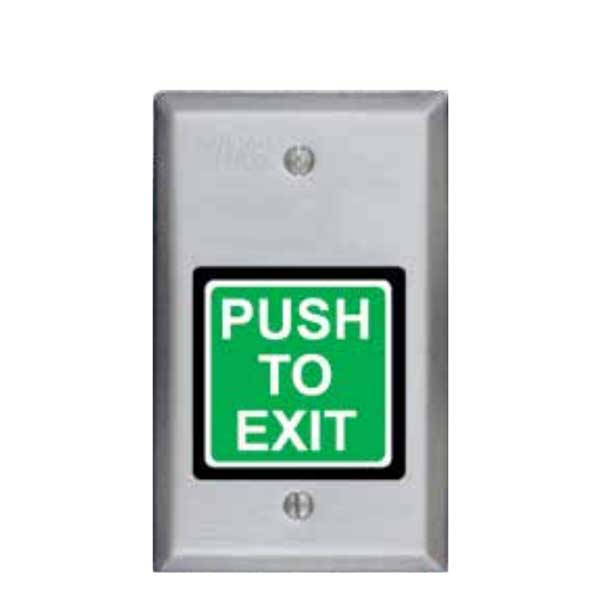

The SDC 423MU Single Gang Square Push Button Switch, is an illuminated switch button two inches squared for easy activation and is visually conspicuous. The high impact resistant material stands up to abuse. The “PUSH to EXIT” sign complies with NFPA requirements.
Features:
- Green Illuminated Switch Button
- Dull Stainless Steel Finish
- Push-to-Exit Sign
- Green Lens
- Fail Safe
Specifications:
| Construction: | Stainless Steel |
| Switch Contact: | DPDT, 5 Amp @ 30VDC Resistive |
| Timer Contacts: | DPDT 2 Amp @ 12/24VDC |
| Finish: | 630 - Dull Stainless Steel |
| Wire Leads: | 6”, 20 Gauge |
| 1 Gang: | 2 7/8” x 4 1/2” x 20 Ga. |
| Narrow: | 1 3/4” x 4 1/2” x 20 Ga. |
| Certifications: | UL Listed |
| Warranty: | Manufacturer 5 Year Warranty |
