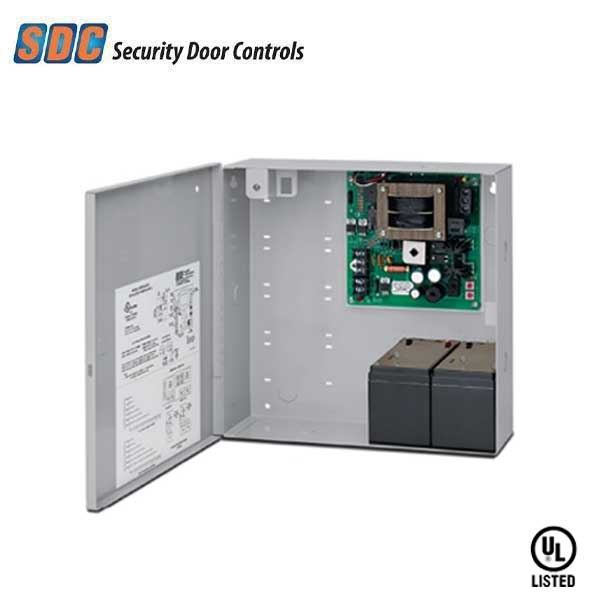

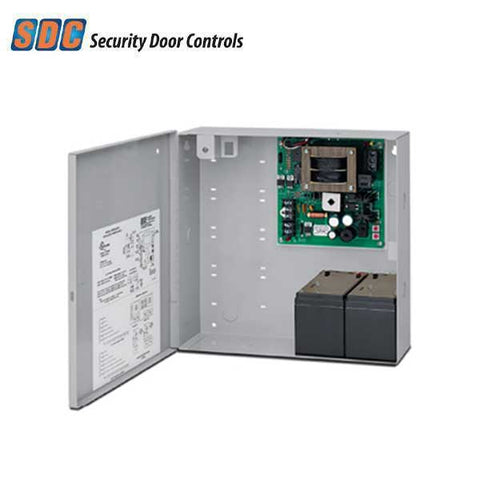

SDC - 632 - Low Voltage Power Supply - 12" Cabinet - 2 Amps - 12/24VDC - Battery Charger - Fire Rated
- Product SKU: SDC-632RF
- NSID: 21962
-
SDC-632RF
All SDC power supplies are equipped with a high performance transformer and highly
reliable electronic components. Filtering and output voltage regulation provide protection and ensure the longevity of all system components. With the addition of SDC programmable controllers or relay modules, the user-friendly modular designs ensure versatility, interface capability and easy installation of electric locking devices, access controls and related safety equipment.Features:
- Field selectable 12 or 24VDC, regulated and filtered
- Modular design
- Fire/Emergency release input
- Field selectable manual reset input
- Auto resetting output circuit protection
- Isolated 13.5/27VDC battery charger
- Low battery disconnect
- Emergency release input
- Field selectable UBC & California compliant manual power up
- Input, output and battery status LED's
- 12" x 12" x 3 3/4" enclosure
- Choice of output and door control modules
Specifications:
| Construction: | Solid Stainless Steel |
| Model: | 2 Amp, Class 2 Output 12” W Cabinet |
| Output Voltage: | Selectable 12VDC or 24VDC @ 2 Amp, poly fuse protected |
| Input Voltage: | 115VAC @ 800mA, 50/60 Hz, Fused. (220/230VAC 50/60 Hz optional) |
| Input Current: | 2.0 amps |
| Output Current: | 0.8 amps Max. |
| Battery Charger: | PTC protected 250mA @ 13.5 or 27VDC |
| Cabinet Dimensions: | 12” x 12” x 4”, Steel 20 GA |
| Certifications: | UL Listed, UL 294 |
| Warranty: | 5-Year Manufacturer Warranty |
