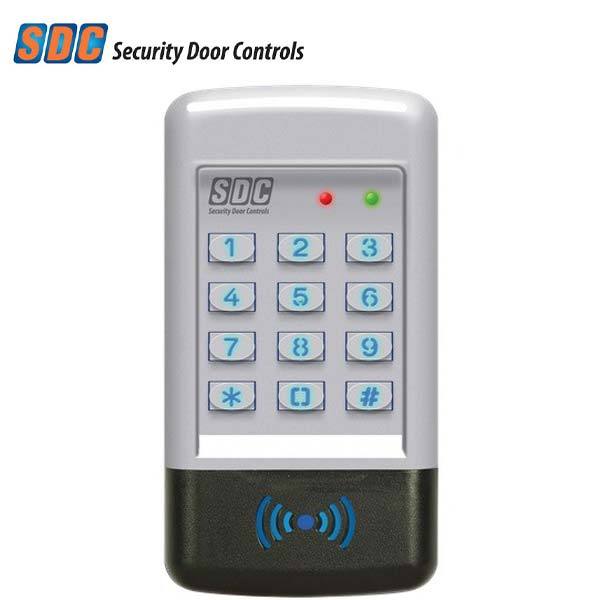

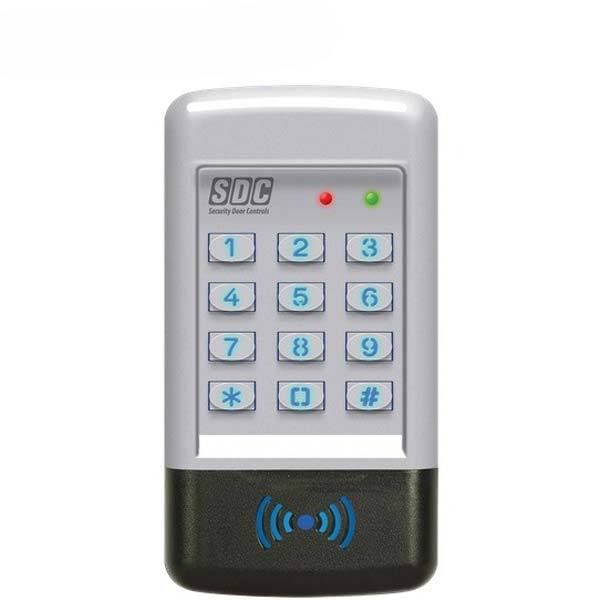

SDC - 920P - Weatherized Keypad - PROX - Indoor/Outdoor - Surface Mounted - 12/24V AC/DC - Cast Metal
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $303.90
-
$300.00 - $303.90
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Digital Keypad with Output for Universal Compatibility
- Weather & Vandal Resistant Housing with Tactile Metal Keys
- HID-Compatible Proximity Reader
- 12-Key Illuminated, 3" x 4" Keypad
- Surface or Single-Gang Mount
- Built-In Tamper Switch
- Dual LED Status Indicators
- Adjustable Audible Annunciation
- Configurable Illumination: On, Off, Timed
- Standalone Keypad and Proximity
- 3 User Modes:
- PIN or Card
- Card Only
- Card and PIN (HID-Compatible: 125kHz-RFID)
Features and Benefits:
The SDC 920 EntryCheck series consists of stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.
Programming Options:
The 920 EntryCheck series includes a Door Sense/Inhibit Input feature. When programmed for œDoor Sense, a door position switch wired into the input and detects a œforced entry or door ajar condition. When programmed for Inhibit Input, a maintained switch or automatic timer wired into the input will disable the activation of the main relay.
The EntryCheck also has a request-to-exit input for connection to an exit switch and/or fire access key switch for fire/emergency access. When access is granted, the shunt option is activated shunting alarm contacts on the door or gate. This prevents the triggering of an alarm during authorized access.
- Voltage: 12/24 VAC/DC
- Current 30mA Typical, 150mA Maximum
- Outputs:
- Relay 1 - SPDT 5 Amps @ 30VDC
- Relay 2 - SPDT 2 Amps @ 30VDC
- Switch to Common Outputs 3 & 4
- “100mA @ 30VDC
- Temperature: -4ºF to +140ºF (-20ºC to +60ºC)
- Humidity: 5% to 95% Non-Condensing
- Finish: Powder Coat Painted Cast Metal
- Mount: Surface Mount
- Dimensions: 3" W x 5-3/4" H x 1-7/16" D (1.5" Wall Projection)
- Weight: 2.0 lbs
