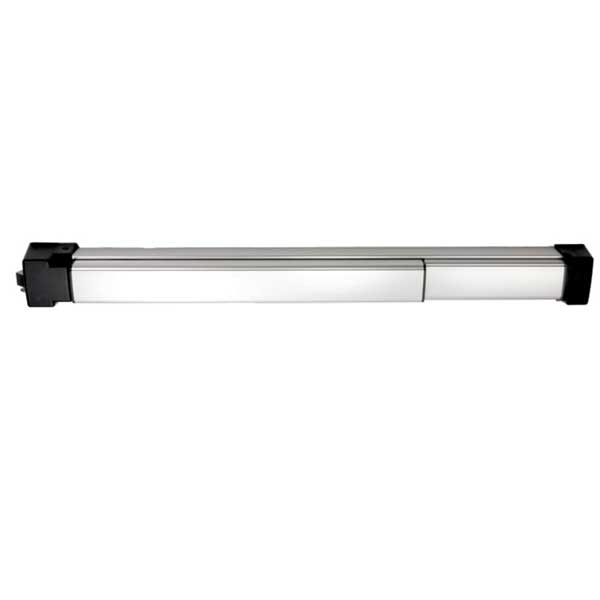

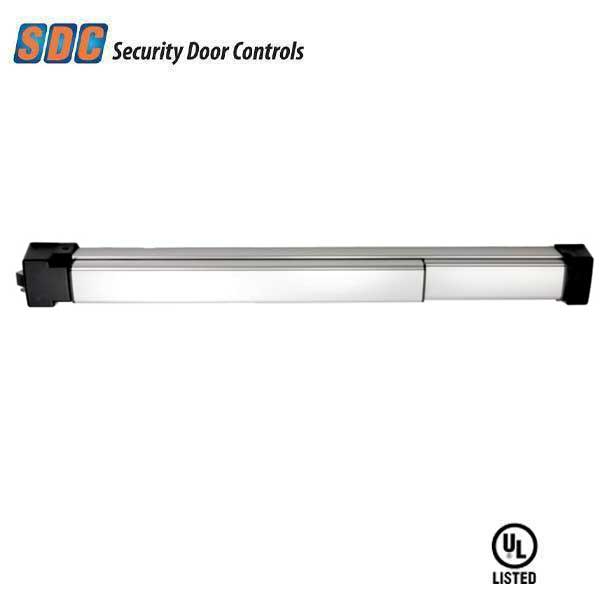

SDC - S5101PV36E - RIM Mounted Panic-Rated Exit Device - 36" - Exit Only - Request to Exit - Motorized Electric Latch Retraction & Dogging - 628 - Aluminum - Grade 1 - UHS Hardware
SDC - S5101PV36E - RIM Mounted Panic-Rated Exit Device - 36" - Exit Only - Request to Exit - Motorized Electric Latch Retraction & Dogging - 628 - Aluminum - Grade 1 - UHS Hardware

SDC - S5101PV36E - RIM Mounted Panic-Rated Exit Device - 36" - Exit Only - Request to Exit - Motorized Electric Latch Retraction & Dogging - 628 - Aluminum - Grade 1

Available to Order
SKU: SDC-S5101PV36E
NSID: 21965

Please Note: This product has a lead time

$748.13
$895.27
$748.13


The S5101PV36E is a heavy-duty, code-compliant alternative to magnetic locks for storefronts applications that require durability, superior aesthetics, and smooth operation. This UL305 panic-rated exit device is American Made, featuring all-metal construction that is particularly suited to aluminum glass entrances for both manual and automated door openings and new or retrofit applications. Not only does the SDC S5000 meet the market need for a Storefront Exit Device with Electric Latch Retraction standard, it also comes with optional Request-to-Exit monitoring for access control compatibility. The S5000 with factory-installed motorized electric latch retraction makes application as easy as Install – Power – Done.is a heavy-duty, code-compliant alternative to magnetic locks for storefronts applications that require durability, superior aesthetics, and smooth operation. This UL305 panic-rated exit device is American Made, featuring all-metal construction that is particularly suited to aluminum glass entrances for both manual and automated door openings and new or retrofit applications. Not only does the SDC S5000 meet the market need for a Storefront Exit Device with Electric Latch Retraction standard, it also comes with optional Request-to-Exit monitoring for access control compatibility. The S5000 with factory-installed motorized electric latch retraction makes application as easy as Install – Power – Done.

Features:

  • Factory-installed motorized electric latch retraction and dogging
  • Compatible with low-energy automatic door operators


Call 1-800-878-6604 for Bulk / Dealer Pricing!
Finish: 628 Anodized Aluminum
Door Width: 36" - 42"
Door Height: -----
Door Stile: Narrow (2” Minimum)
Device Type: RIM
Handing:
Non-Handed
Headcover:
Powder Coated Zinc
Rail: Anodized Aluminium
Pushpad: Anodized Aluminium
End Cap: Powder Coated Zinc
Projection: 25/8” Neutral
23/16” Depressed
Latch: 3/4” Throw
Stainless Steel
Deadlatch: 3/4” Throw
Stainless Steel
Vertical Rods: -----
Input: 24 VDC ± 10%
Current Draw: 700 mA Inrush
200 mA Continuous
Request-to-Exit (REX): SPDT
3 Amp @ 250 VAC Resistive
Latch Status (LS): SPDT
5 Amp @ 250 VAC Resistive
Certifications: UL Listed
Warranty: Manufacturer 5 Year Warranty
Grade: Grade 1
