SDC - Z7652LQE - Electrified Mortise Lock - MLR - Fail Secure - Eclipse Rose - Optional Handing - 24VDC - Satin Chrome - Fire Rated - Grade 1

Available to Order
SKU: SDC-Z7652LQE-626
NSID: 32150 32151

Please Note: This product has a lead time

$669.72
$803.66
$669.72

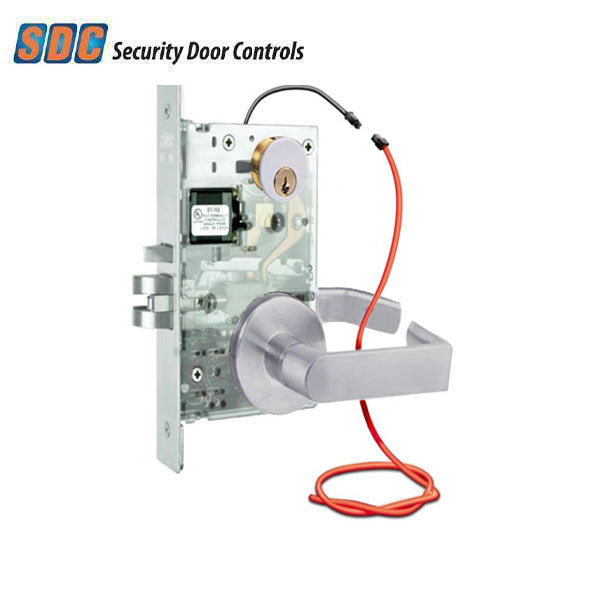

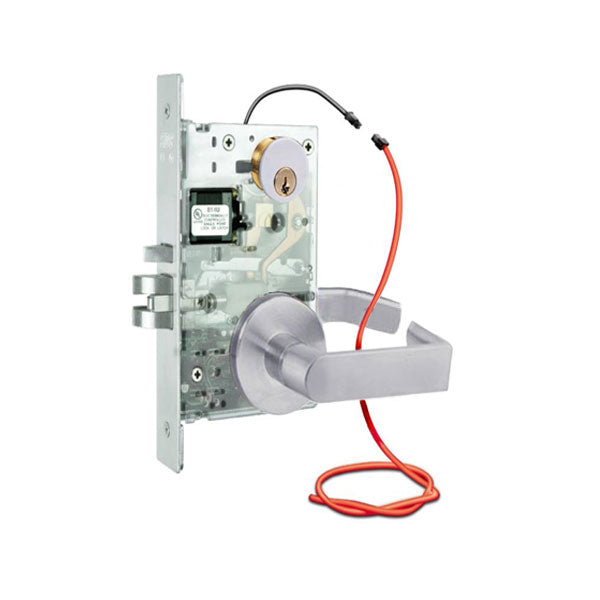

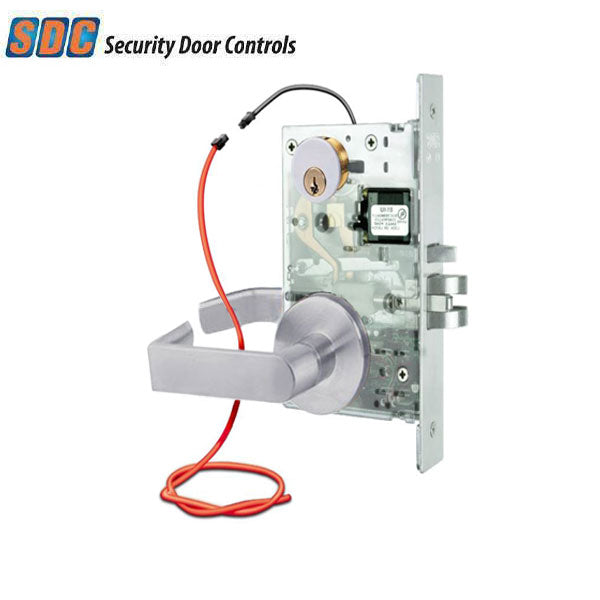

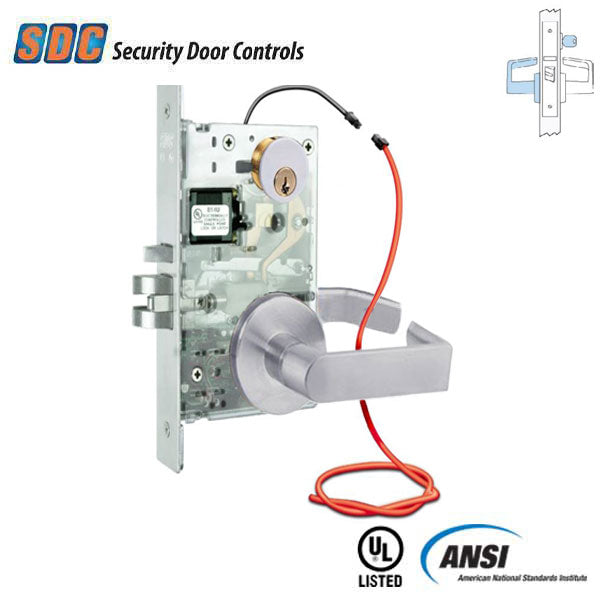

SDC’s 7600 series motorized latch retraction controlled mortise locksets incorporate a grade 1 heavy duty mortise lockset and vandal resistant clutch – proprietary to all SDC locksets. The motorized latch retraction feature is designed for use on fire rated doors to provide access control and building and fire life safety compliance. Door stays latched even when de-energized. Ideal for automatic door operator applications. All SDC mortise locks feature a mortise cylinder to manually retract the latch.

Features:

  • Heavy duty mortise design
  • New or retrofit construction
  • Vandal resistant clutch
  • MLR control
  • Key latch retraction
  • Field selectable function
  • Field reversible handing
  • Schlage trim compatible

Call 1-800-878-6604 for Bulk / Dealer Pricing!
Handing: Left Hand

Specifications:

Construction: Heavy Duty Steel
Lock Function: Mortise, MLR Control - Failsecure - Locked Outside Only
Door Thickness: 1-3/4"
Backset: 2-3/4"
Faceplate: 8-1/32” x 1-5/16” x 7/32”
Strike: Standard ANSI 47/8”
Case: 6” x 4” x 1”
Latchbolt: 3/4” Throw, Stainless Steel, Anti-Friction
Deadlatch: Above Latchbolt
Input: 24 VDC ± 10%
Lever: Eclipse Rose
Handing: Left Hand/Right Hand
Current Draw: 620 mA Inrush; 160 mA Continuous
Monitoring Contacts: SPDT 5 Amps @ 30 VDC Resistive
Finish: 626 - Satin Chrome
Fire Rated: UL 10C Positive Pressure Fire Tests of Door Assemblies
Certifications: UL Listed
Warranty: 5-Year Manufacturer Warranty
