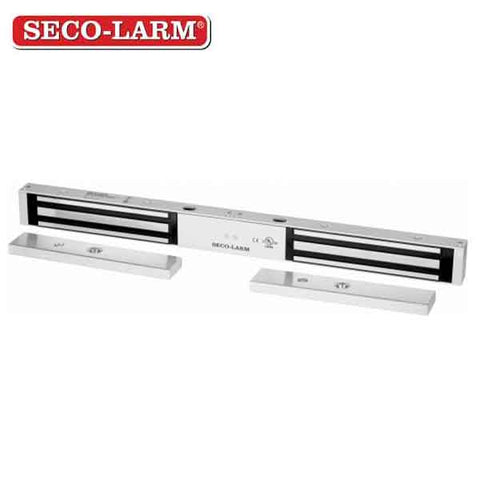

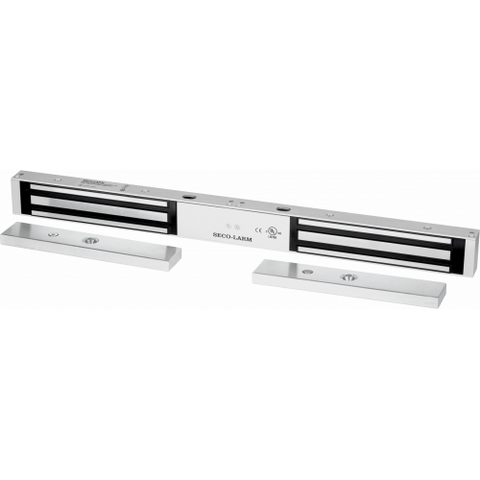

Seco-Larm - Double Door Maglock - 600 lb Holding Force per Door - Sensor LED - UL Listed
In Stock
SKU:
SLM-E-941DA-600PQ
NSID:
6735
- $215.33
-
$258.40 - $215.33
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
SLM-E-941DA-600PQ
- Anodized aluminum housing (US 28)
- 12 or 24 VDC (selectable)
- No residual magnetism

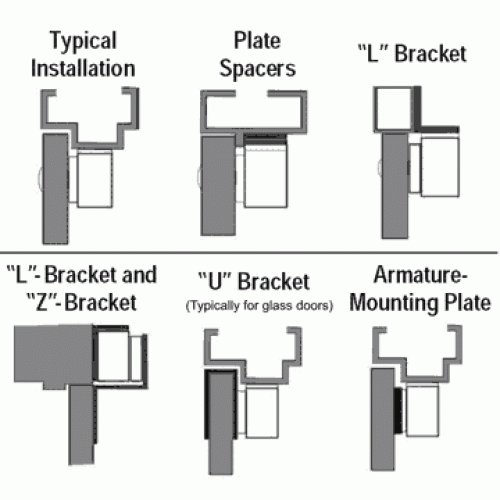

- Adjustable mounting bracket
- MOV surge protection
- Complete mounting hardware for typical installations
- Detachable face plate
- UL and ULC listed
- CE listed
- RoHS compliant
- LIFETIME LIMITED WARRANTY
- Built-in dual-color status LEDs and bond sensors with relays (one per door / 3A@12VDC) to show locking status of each door
- Green: Door is closed and locked
- Red: Door not closed and/or locked
- Off: Door in use / no power
| Holding Force | 600-lb (272kg) per door |
| Operating Voltage | 12 or 24 VDC ±10% |
| Current Draw | 500mA@12VDC per door (1A total) 250mA@24VDC per door (500mA total) |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Certification | UL, ULC, CE |

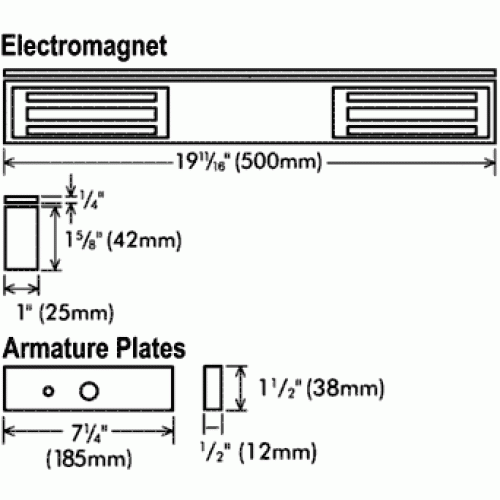

| Electromagnet Dimensions | 19-11/16"x1-5/8"x1-1/16" (500x40x26 mm) |
| RoHS Compliance | Yes |
| Armature Dimensions | 7-1/4"x1/2"x1-1/2" (185x12x38 mm) |
| Case Shipping Weight | 46-lb (21kg) |
| Weight | 9-lb (4kg) |
| Case Quantity | 5 pcs |
| Bond Sensor | Yes |
| Status LED | Yes |
