Seco-Larm - Mini Timer Module - Low Voltage Miniature Delay Timer Module w/ Relay Output
In Stock
SKU:
SLM-SA-026Q
NSID:
6766
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $19.88
-
$33.36 - $19.88
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

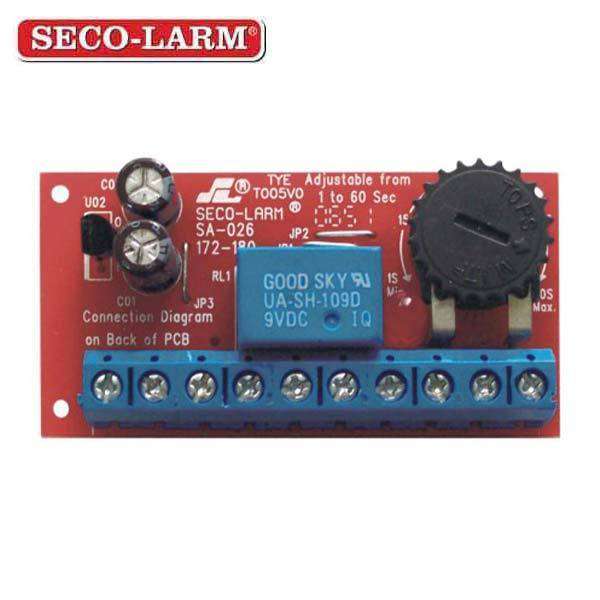

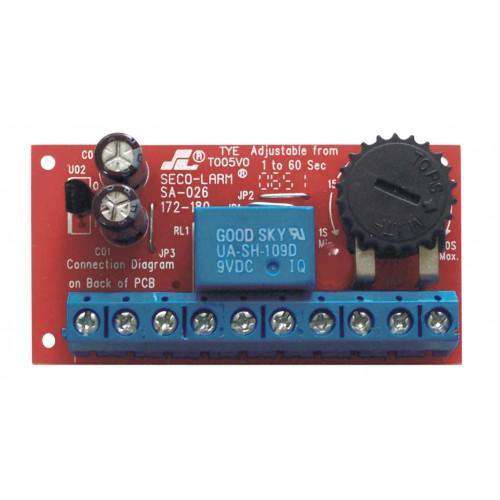

The ENFORCER® SA-026Q is a low-voltage miniature delay timer module which operates on 12 to 24 volts AC or DC. This timer module will extend the activation time of a momentary contact switch for 1~180 seconds via a field-adjustable rotary pot. Use with electrical locks which do not have a built-in time delay function. Its compact size makes it small enough to fit in a single-gang box or inside a door frame cavity.
-
Adjustable timer from 1~180 seconds via a
pot on board - NO/NC switch trigger
-
Compact design: 13/16"
x29/32" x5/8"(30x58x16 mm) -
Operating voltage: 12~24 volts
AC or DC -
Current: 2mA (standby),
75mA (active) -
Relay output: Form-C (SPDT)
via terminal blocks - Contact rating: 3A@24VDC
-
With built-in buzzer output
(100mA@24VDC) -
Includes double-sided
foam tape
