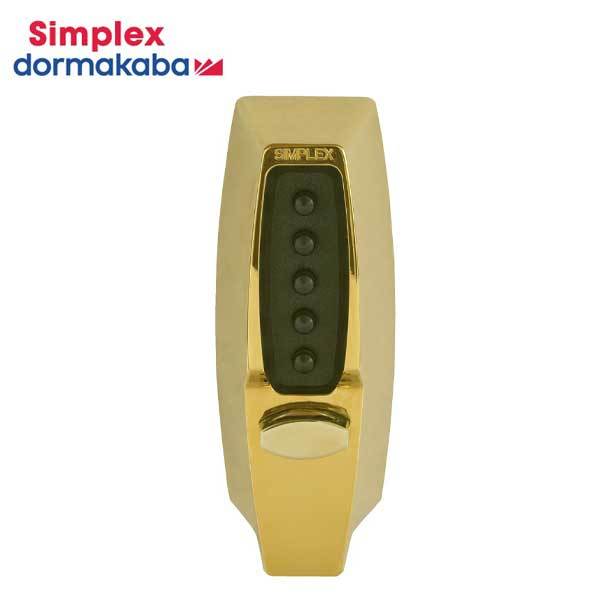

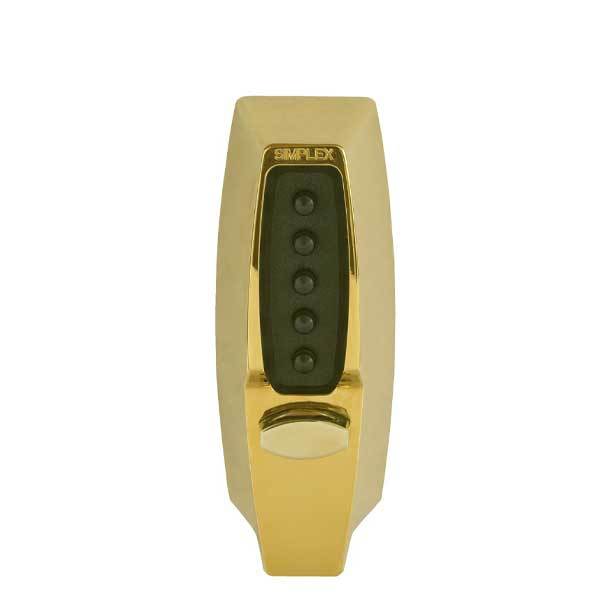

Simplex - 7102 Pushbutton Keyless - Deadbolt Lock - 03 - Bright Brass
Simplex - 7102 Pushbutton Keyless - Deadbolt Lock - 03 - Bright Brass
Simplex - 7102 Pushbutton Keyless - Deadbolt Lock - 03 - Bright Brass
Simplex - 7102 Pushbutton Keyless - Deadbolt Lock - 03 - Bright Brass
Simplex - 7102 Pushbutton Keyless - Deadbolt Lock - 03 - Bright Brass

Simplex - 7102 Pushbutton Keyless - Deadbolt Lock - 03 - Bright Brass

$137.90 $197.00
Available: In Stock
Wishlist
  • Product SKU: KABA-71040341
  • KABA-71040341
    Item number: 5998

    The Simplex - 7102 Mechanical pushbutton deadbolt lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked.

    More Information Below

    $137.90

Specifications


 Construction All metal cast front housing; force-resistant, clutch-protected exterior thumbturn
Numeric Keypad Vandal resistant, solid metal pushbuttons
Door Handing Field reversible
Finish 605 Bright Brass
Locking Device Deadbolt—must be manually relocked
Bolt 1" (25 mm) Tubular Deadbolt
Face plate  Flat front face plate
Backset 2¾" (70 mm) backset
Strike Flat deadbolt strike plate
Door Thickness 1⅜” (35 mm) to 2¼” (57 mm), wood or metal
Minimum Stile Recommended 4” (102 mm)
Number of Codes Single access code—one easy-to-manage code for all users
Programming Lock is easily programmed via keypad without removing
lock from the door
No Battery Fully mechanical lock eliminates the material and labor
expense of battery replacements
Durability Weather resistant
Warranty 1-year warranty
Items Supplied Include Installation manual, full-scale template and required installation hardware


Dimensions

Downloads

Installation Instructions





KABA-71040341
Item number: 5998

The Simplex - 7102 Mechanical pushbutton deadbolt lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked.

More Information Below

Specifications


 Construction All metal cast front housing; force-resistant, clutch-protected exterior thumbturn
Numeric Keypad Vandal resistant, solid metal pushbuttons
Door Handing Field reversible
Finish 605 Bright Brass
Locking Device Deadbolt—must be manually relocked
Bolt 1" (25 mm) Tubular Deadbolt
Face plate  Flat front face plate
Backset 2¾" (70 mm) backset
Strike Flat deadbolt strike plate
Door Thickness 1⅜” (35 mm) to 2¼” (57 mm), wood or metal
Minimum Stile Recommended 4” (102 mm)
Number of Codes Single access code—one easy-to-manage code for all users
Programming Lock is easily programmed via keypad without removing
lock from the door
No Battery Fully mechanical lock eliminates the material and labor
expense of battery replacements
Durability Weather resistant
Warranty 1-year warranty
Items Supplied Include Installation manual, full-scale template and required installation hardware


Dimensions

Downloads

Installation Instructions





Compatible With
