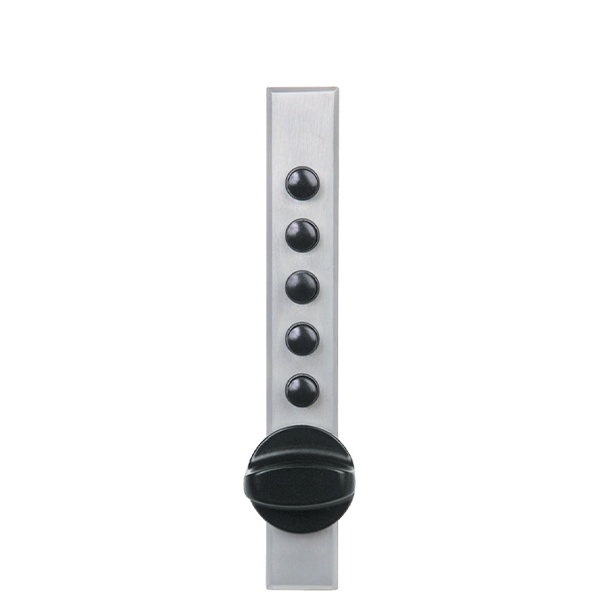

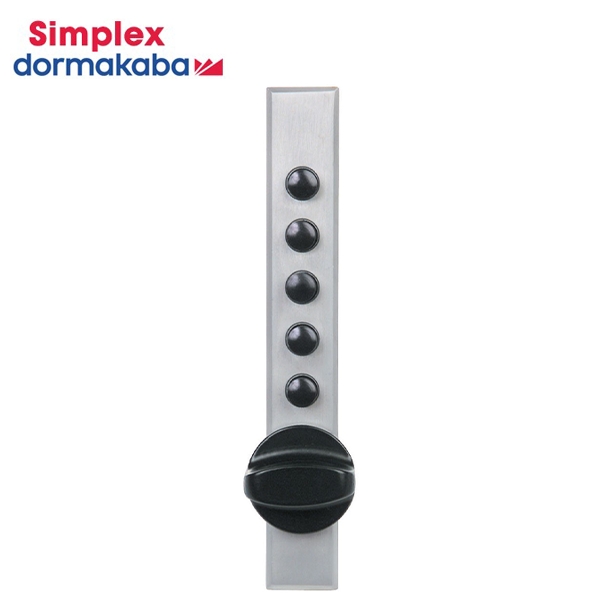

Simplex 9600 - Mechanical Pushbutton Deadbolt Cabinet Lock - Wood Door - Clutch Ball Bearing Knob - 26D - Satin Chrome
Simplex 9600 - Mechanical Pushbutton Deadbolt Cabinet Lock - Wood Door  - Clutch Ball Bearing Knob - 26D - Satin Chrome
Simplex 9600 - Mechanical Pushbutton Deadbolt Cabinet Lock - Wood Door  - Clutch Ball Bearing Knob - 26D - Satin Chrome
Simplex 9600 - Mechanical Pushbutton Deadbolt Cabinet Lock - Wood Door  - Clutch Ball Bearing Knob - 26D - Satin Chrome
Simplex 9600 - Mechanical Pushbutton Deadbolt Cabinet Lock - Wood Door  - Clutch Ball Bearing Knob - 26D - Satin Chrome

Simplex 9600 - Mechanical Pushbutton Deadbolt Cabinet Lock - Wood Door - Clutch Ball Bearing Knob - 26D - Satin Chrome

$73.15 $103.00
Available: In Stock
Wishlist
  • Product SKU: KABA-9622C-20-26D-41
  • KABA-9622C-20-26D-41
    Item number: 7994

    Simplex 9600 Series mechanical pushbutton lock uses the same combination system as our other pushbutton access controls and are specifically designed for cabinet doors, desk drawers, and similar applications. They are ideal for use in many locations, such as medicine chests, liquor cabinets, gun boxes, courier pick-up boxes, home entertainment units, cleaning supply cabinets, tool chests, private files, audio-visual cabinets, and petty cash drawers. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

    $73.15


Construction All metal cast face plate; force-resistant, protected exterior knob
Numeric Keypad Vandal resistant, solid metal pushbuttons
Locking Device Standard Deadbolt
Bolt Throw End Throw
Number of Codes Single access code (non-sequential)—one easy-to-manage code for all users
Programming Lock is easily programmed via keypad without removing lock from the door
Trim Plate With Trim Plate
Handing Non-handed
Finish  26D Satin Chrome (626)
Door Thickness Wood Application, ⅝" (16 mm) to ⅞" (27 mm) door thickness
Installation Horizontal or vertical.
Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications)
Warranty 1 Year Manufacturers Warranty



Downloads

Installation Manual

KABA-9622C-20-26D-41
Item number: 7994

Simplex 9600 Series mechanical pushbutton lock uses the same combination system as our other pushbutton access controls and are specifically designed for cabinet doors, desk drawers, and similar applications. They are ideal for use in many locations, such as medicine chests, liquor cabinets, gun boxes, courier pick-up boxes, home entertainment units, cleaning supply cabinets, tool chests, private files, audio-visual cabinets, and petty cash drawers. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.


Construction All metal cast face plate; force-resistant, protected exterior knob
Numeric Keypad Vandal resistant, solid metal pushbuttons
Locking Device Standard Deadbolt
Bolt Throw End Throw
Number of Codes Single access code (non-sequential)—one easy-to-manage code for all users
Programming Lock is easily programmed via keypad without removing lock from the door
Trim Plate With Trim Plate
Handing Non-handed
Finish  26D Satin Chrome (626)
Door Thickness Wood Application, ⅝" (16 mm) to ⅞" (27 mm) door thickness
Installation Horizontal or vertical.
Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications)
Warranty 1 Year Manufacturers Warranty



Downloads

Installation Manual
