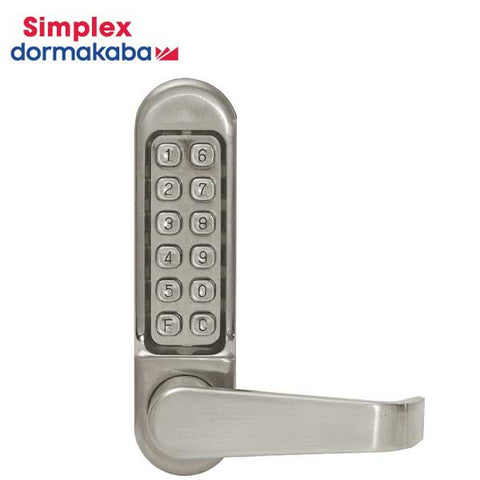

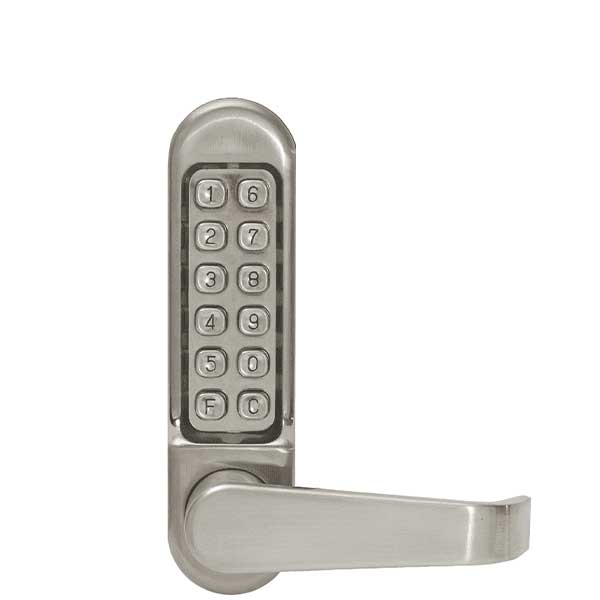

Simplex - LD472 Mechanical Pushbutton Lock - Tubular Latch Bolt - 2-3/4" Backset - w/ Vandal Resistant Clutching Lever - 32D - Satin Stainless - Passage
Simplex - LD472 Mechanical Pushbutton Lock - Tubular Latch Bolt - 2-3/4" Backset - w/ Vandal Resistant Clutching Lever - 32D - Satin Stainless - Passage
Simplex - LD472 Mechanical Pushbutton Lock - Tubular Latch Bolt - 2-3/4" Backset - w/ Vandal Resistant Clutching Lever - 32D - Satin Stainless - Passage
Simplex - LD472 Mechanical Pushbutton Lock - Tubular Latch Bolt - 2-3/4" Backset - w/ Vandal Resistant Clutching Lever - 32D - Satin Stainless - Passage
Simplex - LD472 Mechanical Pushbutton Lock - Tubular Latch Bolt - 2-3/4" Backset - w/ Vandal Resistant Clutching Lever - 32D - Satin Stainless - Passage

Simplex - LD472 Mechanical Pushbutton Lock - Tubular Latch Bolt - 2-3/4" Backset - w/ Vandal Resistant Clutching Lever - 32D - Satin Stainless - Passage

$188.56 $325.00
Available: In Stock
Wishlist
  • Product SKU: KABA-LD4724832D41
  • KABA-LD4724832D41
    Item number: 7991

    The Simplex 470 Series mechanical pushbutton locks provides exterior access by combination. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door. Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.


    $188.56
 Construction Solid cast housings; cast knobs and levers
Numeric Keypad Vandal resistant, metal pushbuttons
Locking Device Tubular latch
Number of Codes Single access code (non-sequential)—one easy-to-manage code for all users
Programming Lock is easily programmed via keypad once removed from door
Operation Modes Pushbutton Access and Passage (easily removed in field)
Handing Non-handed, pre-assembled for right-hand door installations (easily field reversible)
Finish  32D Satin Stainless (simulated 630 finish)
Backset 2-3/4" (70 mm) backset
Latch 3-1/2"  (89 mm) latch
Door Thickness 1-3/8 " (35 mm) to 2-1/2 " (64 mm)
Door Preparation Easily installs on wood or metal doors. Requires four holes (two for through bolts, one for latch spindle, and one for latch support post).
Supplies Included Lock assembly, installation manual, template, and required hardware; as well as two 2½" (64 mm) x 8" (203 mm) cover plates and two 2" (51 mm) gaskets
Warranty 1 Year Manufacturers Warranty



Downloads

Installation Manual
