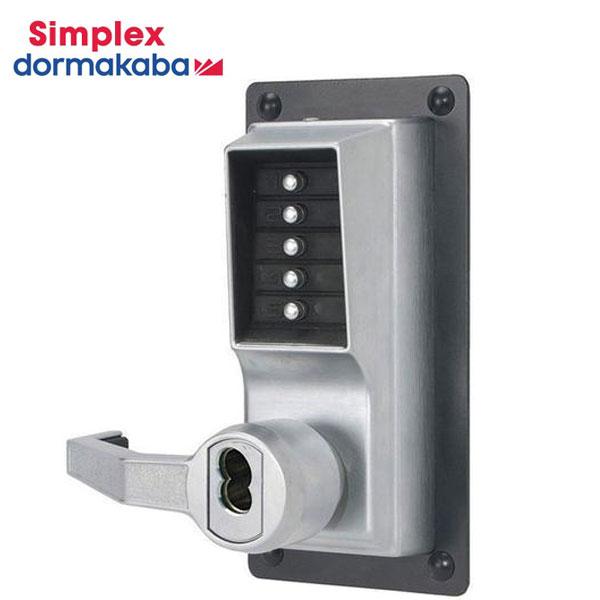

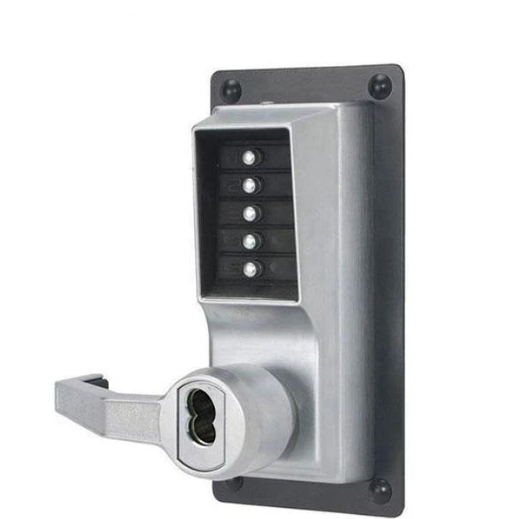

Simplex - LLP1020M - Mechanical Pushbutton Exit Trim Lever Lock - LFIC Medeco - 2¾" Tailpiece - Satin Chrome - LH/LHR

In Stock
NSID: 17303

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with


Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). Combination Entry and Key Override Only. Core Not Included.


  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Single access code—one easy-to-manage code for all users
  • Factory-handed; not field reversible
  • Key Override: Small Format Interchangeable Core (SFIC)
  • Pushbutton Access
  • Exit Device may be "dogged" without affecting the LP1000

Call 1-800-878-6604 for Bulk / Dealer Pricing!



Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever

Locking Device:

Rim Exit Device: Compatible with most leading brands of Exit Devices— see list below (Exit Device and mounting hardware not included)

Numeric Keypad:

Vandal resistant, solid metal pushbuttons


Left hand or Left hand Reverse


Satin Chrome 26D (626)

Key Override:

LFIC, Medeco/ASSA/Yale/Abloy (5 or 6-pin length); core not included


2¾" (70 mm) tailpiece for Exit Device operation from outside

Exit Device Hub Rotation:

Up to 60°, counterclockwise for left hand

Minimum Stile Recommended:

5" (127 mm)


Supplied with Exit Device

Door Preparation:

Recessed through bolts may be required for Exit Device preparation

Door Thickness:

1⅜" (35 mm) to 2¼" (57 mm)

Accessibility Standard:

Americans with Disabilities Act (ADA); fixed ADA-compliant lever


Weather Resistant

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors


3 years manufacturer warranty

Exit Device Compatibility:

  • Black & Decker (K-12) QED111/112
  • Cal Royal 5000/F5000
  • Detex Advantex Series 10, 20, 21,40, 50, 51
  • Detex 10/F10 Series
  • Dorex 8500R/8500F, 9500PR/9500FR
  • Dorma 9100, 9300
  • Monarch XX-R*, FXX-R, 18-R*, F-18-R*, 17-R, F-17-R, XX-V*, F-XX-V*, 18-V*, F-18-V*, F-XX-V*, 11-R*, 11-V*
  • Von Duprin 22, 88 NL, 98, 99, 900, 2227, 9827, 9847, 9847 WDC, 9848, 9857, 9927, 9947, 9947, WDC, 9948, 9957, 90027, 90047 WDC, 90057
*(requires special K-Hub Adapter Kit)

Cannot be used with mortise design or vertical rod Exit Devices

ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without Kaba's knowledge.

For the most accurate listing of compatible Exit Devices, visit


Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
