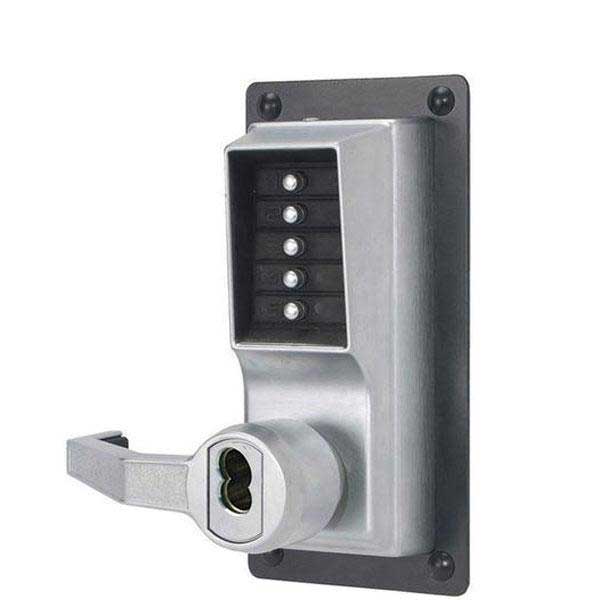

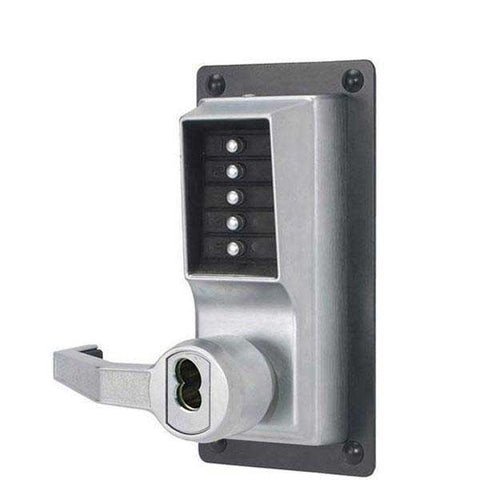

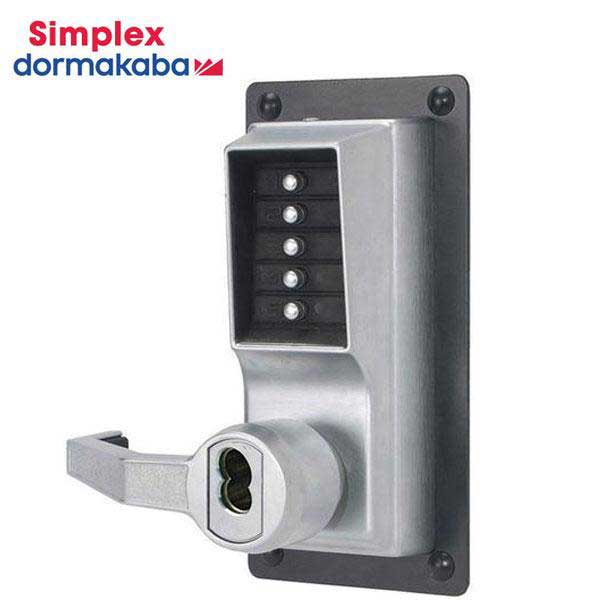

Simplex - LLP1020S - Mechanical Pushbutton Exit Trim Lever Lock - LFIC Schlage - 2¾" Tailpiece - Satin Chrome - LH/LHR
In Stock
SKU:
KABA-LLP1020S-26D-41
NSID:
2852
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $488.75
-
$690.99 - $488.75
- Unit price
- per
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). Combination Entry and Key Override Only. Core Not Included.
Features:
- Fully mechanical lock eliminates the material and labor expense of battery replacements
- Single access code—one easy-to-manage code for all users
- Factory-handed; not field reversible
- Key Override: Large Format Interchangeable Core (LFIC)
- Pushbutton Access
- Exit Device may be "dogged" without affecting the LP1000
- $488.75
-
$690.99 - $488.75
- Unit price
- per
Specifications:
Construction: |
Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever |
Locking Device: |
Rim Exit Device: Compatible with most leading brands of Exit Devices— see list below (Exit Device and mounting hardware not included) |
Numeric Keypad: |
Vandal resistant, solid metal pushbuttons |
Handing: |
Left hand or Left hand Reverse |
Finish: |
Satin Chrome 26D (626) |
Key Override: |
LFIC, Schlage; core not included |
Tailpiece: |
2¾" (70 mm) tailpiece for Exit Device operation from outside |
Exit Device Hub Rotation: |
Up to 60°, counterclockwise for left hand |
Minimum Stile Recommended: |
5" (127 mm) |
Strike: |
Supplied with Exit Device |
Door Preparation: |
Recessed through bolts may be required for Exit Device preparation |
Door Thickness: |
1⅜" (35 mm) to 2¼" (57 mm) |
Accessibility Standard: |
Americans with Disabilities Act (ADA); fixed ADA-compliant lever |
Durability: |
Weather Resistant |
Fire Rating: |
3-hour UL/ULC fire rating for "A" label doors |
Warranty: |
3 years manufacturer warranty |
Exit Device Compatibility:
- Black & Decker (K-12) QED111/112
- Cal Royal 5000/F5000
- Detex Advantex Series 10, 20, 21,40, 50, 51
- Detex 10/F10 Series
- Dorex 8500R/8500F, 9500PR/9500FR
- Dorma 9100, 9300
- Monarch XX-R*, FXX-R, 18-R*, F-18-R*, 17-R, F-17-R, XX-V*, F-XX-V*, 18-V*, F-18-V*, F-XX-V*, 11-R*, 11-V*
- Von Duprin 22, 88 NL, 98, 99, 900, 2227, 9827, 9847, 9847 WDC, 9848, 9857, 9927, 9947, 9947, WDC, 9948, 9957, 90027, 90047 WDC, 90057
Cannot be used with mortise design or vertical rod Exit Devices
ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers without Kaba's knowledge.
For the most accurate listing of compatible Exit Devices, visit http://kaba.to/SimplexLP1000.
