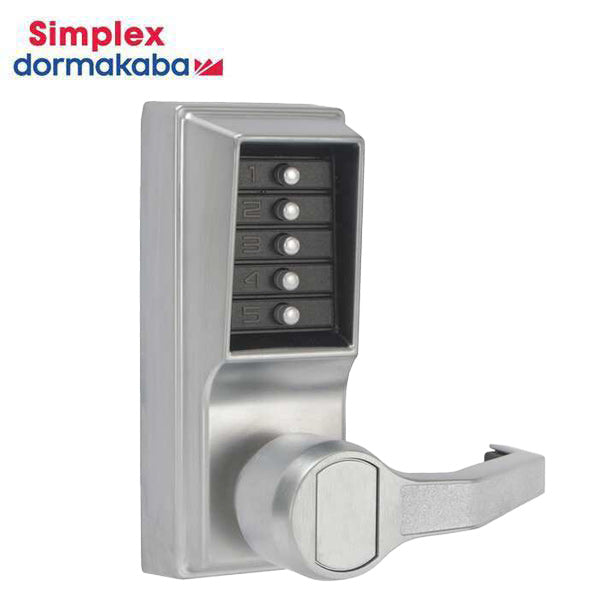

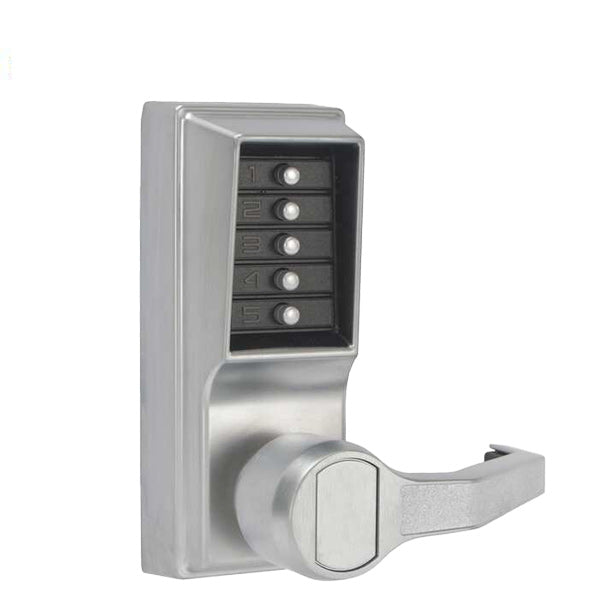

Simplex - LR1031 - Mechanical Pushbutton Cylindrical Lever Set - Passage - 2¾" Backset - Optional Finish - RH/RHR - UHS Hardware
Simplex - LR1031 - Mechanical Pushbutton Cylindrical Lever Set - Passage - 2¾" Backset - Optional Finish - RH/RHR - UHS Hardware
Simplex - LR1031 - Mechanical Pushbutton Cylindrical Lever Set - Passage - 2¾" Backset - Optional Finish - RH/RHR - UHS Hardware
Simplex LR1031 Pushbutton Lever Lock - Best IC Core (SFIC) - 26D - Satin Chrome - RH- Passage - UHS Hardware
Simplex - LR1031 - Mechanical Pushbutton Cylindrical Lever Set - Passage - 2¾" Backset - Optional Finish - RH/RHR - UHS Hardware

Simplex - LR1031 - Mechanical Pushbutton Cylindrical Lever Set - Passage - 2¾" Backset - Optional Finish - RH/RHR

In Stock
SKU: KABA-LR1031-26D-41
NSID: 2862 29659

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$450.15
$664.00
$450.15
Finish: Satin Chrome

KABA-LR1031

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex L1000 Series provides exterior access by combination, while allowing free egress. Combination & Passage Entry Only. No Key Override

Features:

  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Factory-handed for Right Hand or Right Hand Reverse. Not field reversible
  • Pushbutton Access
  • Passage—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key


Call 1-800-878-6604 for Bulk / Dealer Pricing!

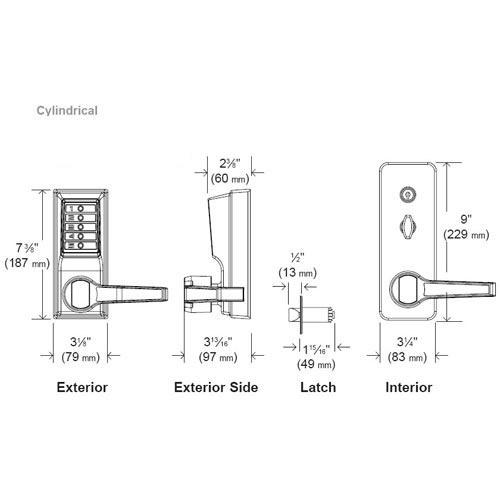

Specifications:

Construction:

Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers

Locking Device:

Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset (UL listed)

Numeric Keypad:

Vandal resistant, solid metal pushbuttons

Handing:

Right Hand or Right Hand Reverse

Finish:

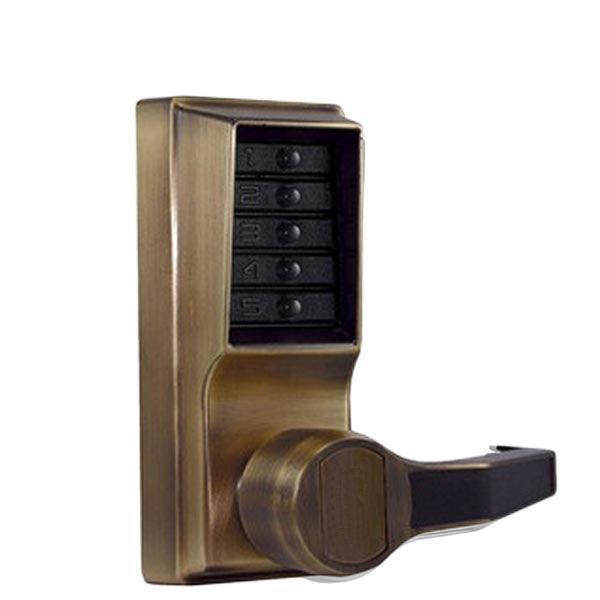

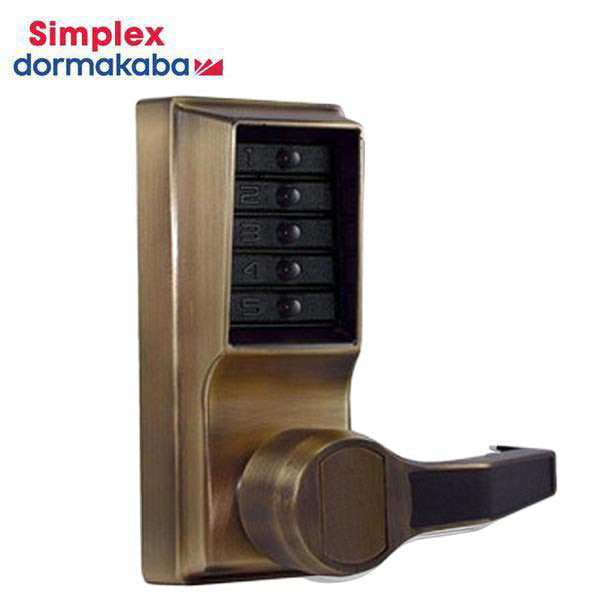

Satin Chrome 26D (626) , Antique Brass (05)

Backset:

2¾" (70 mm) backset

Latch:

½" (13 mm) throw latch

Minimum Stile Recommended:

5" (127 mm)

Strike:

Standard strike plate; ASA strike plate

Door Preparation:

Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

Door Thickness:

1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors

Accessibility Standard:

Americans with Disabilities Act (ADA)

Durability:

D.O.D. Compliant 5220.22M for supplemental access control; weather resistant

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

3 years manufacturer warranty


Downloads:


Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
