Stand Alone Access Controller - Keypad Controller - Single Doors - Waterproof IP68
In Stock
SKU:
DAC-KP001
NSID:
1503
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
$48.35$52.74
MEMBER PRICE
The Stand Alone Access Controller - EM & ID Prox Card Reader & Keypad Controller is a single door multi-function standalone access controller or a Wiegand output keypad or card reader. It is suitable for mounting either indoor or outdoor environments. It is housed in a strong, sturdy and vandal proof Zinc Alloy with an internal tamper alarm. This outdoor / indoor waterprooof keypad is built with ease of installation and ease of use in mind. Using a car or pin code this keypad can be used in Access Control system to unlock the door.
Specification:
| Application | Outdoor / Indoor |
| Operating Voltage | DC 12V-24 ±10% |
| User Capacity |
2000 users Can be unlocked by Prox Card, PIN Code or Combination of Prox Card and PIN |
| Programmable | Easily programmable at the lock |
| Tamper Alarm | Built in light dependent resistor (LDR) for anti tamper |
| Alarm | Built in buzzer |
| Keyboard | back-lit for night accessibility |
| Card Reading Distance | 3-6 cm |
| Idle Current | 25±5 mA |
| Active Current | ＜60mA |
| Lock Output Load | Max 20A |
| Alarm Output Load | Max 20A |
| Output- Alarm | 2.5A@12VDC |
| Output - Wiegand | Wiegand 26 bit |
| Adjustable Door Relay time | 0 -99 seconds |
| Adjustable Alarm Time | 0- 3 minutes |
| Card type |
125KHZ EM cards,
|

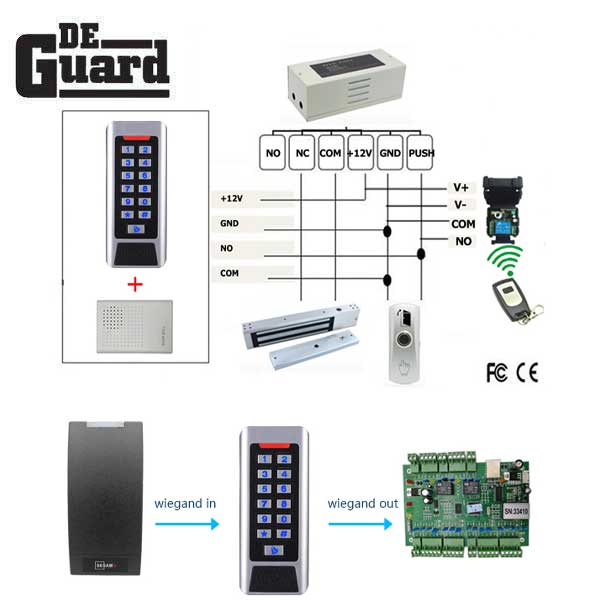

| Wiring Connections | Electric Lock, Exit Button, External Alarm |
| Enclosure material | Strong Zinc Alloy Electroplated anti-vandal case |
| Operating Temperature | -40°~140° F (-40°~60° C) |
| Operating Humidity | 10~90% non-condensing |
| Environment | Conforms to IP68 Waterproof Standards |
