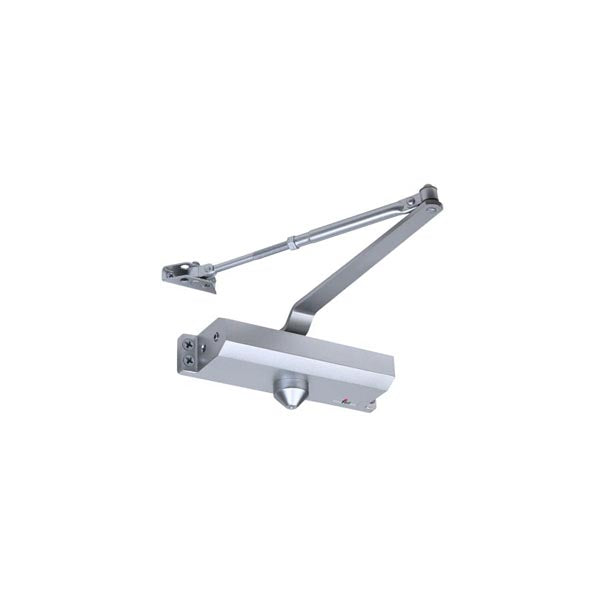

TELL - 12545 - Heavy Duty Commercial Door Closer - Fixed Spring Tension - Grade 3 - Size 5 - Backcheck - Parallel Arm Bracket - Aluminum
Available to Order
SKU:
TELL-DC100013
NSID:
52365
- $35.57
-
$44.46 - $35.57
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Tell Manufacturing's 500 Series Door Closer is designed for interior commercial use. It is a Grade 3 heavy-duty aluminum commercial door closer that complies with ANSI A156.4
Specifications:
| Performance | Complies with ANSI A156.4 Grade 3 – 500,000 cycles UL/ULC listed up to 3 hours fire rated |
| Chassis | Cast aluminum |
| Handing | Non-handed |
| Mounting | Tri-Pack – regular, top jamb and parallel arm applications |
| Arm | Stamped steel Accommodates up to 3 ¼" reveals Adjustable extension arm |
| Spring Power | Size 3, Size 4, Size 5 non-adjustable |
| Valves | Adjustable, independent Non-critical – sweep and latch Consistent closing speeds |
| Fasteners | Metal screws included for hollow metal and aluminum mounting applications Wood screws included for wood door mounting applications Thru-bolts optional |
| Door Range | Up to 180 degrees |
| Door Preparation | 9-1/16” horizontal x 3/4” vertical 4-Hole mounting location Retrofits traditional closer |
| Warranty | Lifetime limited |
