TELL - RL100030 - Heavy Duty - Tubular Deadbolt - Stainless Steel - Single Cylinder
TELL - RL100030 - Heavy Duty - Tubular Deadbolt - Stainless Steel - Single Cylinder
TELL - RL100030 - Heavy Duty - Tubular Deadbolt - Stainless Steel - Single Cylinder
TELL - RL100030 - Heavy Duty - Tubular Deadbolt - Stainless Steel - Single Cylinder
TELL - RL100030 - Heavy Duty - Tubular Deadbolt - Stainless Steel - Single Cylinder

TELL - RL100030 - Heavy Duty - Tubular Deadbolt - Stainless Steel - Single Cylinder

Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

$16.19
Availability: Available to Order
  • Product SKU: TELL-RL100030
  • NSID: 51975
  • TELL-RL100030

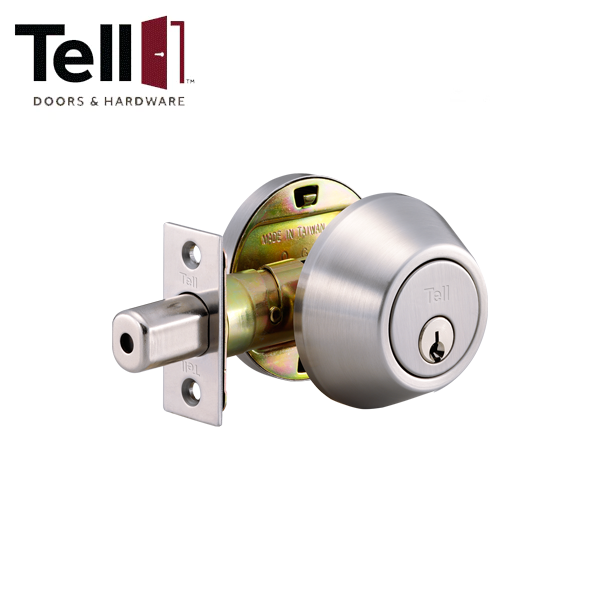

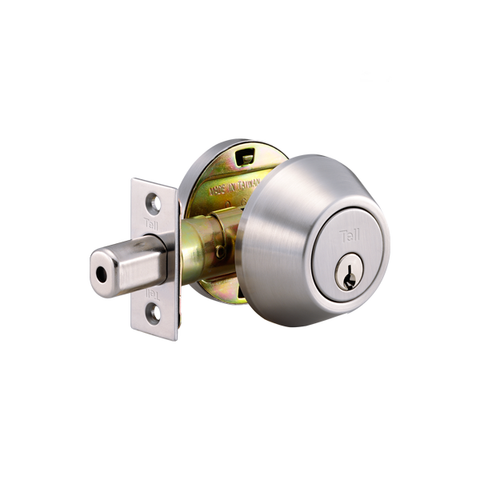

    The DB1000 Series is a grade 1 tubular, heavy-duty deadbolt designed for high security. It is designed with a saw-resistant bolt with a 1” throw. Comes in double and single cylinder options in a satin stainless steel finish. The cylinder is a 6-pin solid brass keyway.


Performance

Complies with ANSI A156.5
Grade 1, 250,000 cycles

Chassis Tubular, steel
Deadbolt 1" Housing diameter
1" stainless steel throw with roller bar (added security from hacksaw or reciprocating saw)
1" x 2-1/4" , faceplate
Latch 2-3/4” Backset
Strike 1-1/8" x 2-3/4" , square corner faceplate
Cylinder SCC - C keyway
6-pin solid brass
Keyed different (KD)
Keys Two nickel silver per lock cylinder
Door Range 1-3/8” – 2”
Door Preparation 2-1/8" diameter for bore
1" Diameter for bolt
Fits standard 161 door prep
Warranty Lifetime limited
TELL-RL100030

The DB1000 Series is a grade 1 tubular, heavy-duty deadbolt designed for high security. It is designed with a saw-resistant bolt with a 1” throw. Comes in double and single cylinder options in a satin stainless steel finish. The cylinder is a 6-pin solid brass keyway.

    Performance

    Complies with ANSI A156.5
    Grade 1, 250,000 cycles

    Chassis Tubular, steel
    Deadbolt 1" Housing diameter
    1" stainless steel throw with roller bar (added security from hacksaw or reciprocating saw)
    1" x 2-1/4" , faceplate
    Latch 2-3/4” Backset
    Strike 1-1/8" x 2-3/4" , square corner faceplate
    Cylinder SCC - C keyway
    6-pin solid brass
    Keyed different (KD)
    Keys Two nickel silver per lock cylinder
    Door Range 1-3/8” – 2”
    Door Preparation 2-1/8" diameter for bore
    1" Diameter for bolt
    Fits standard 161 door prep
    Warranty Lifetime limited
