$129.00 $144.00
Availability: In Stock
  • Product SKU: TDB-TDB006
  • NSID: 20655
  • TDB-TDB006

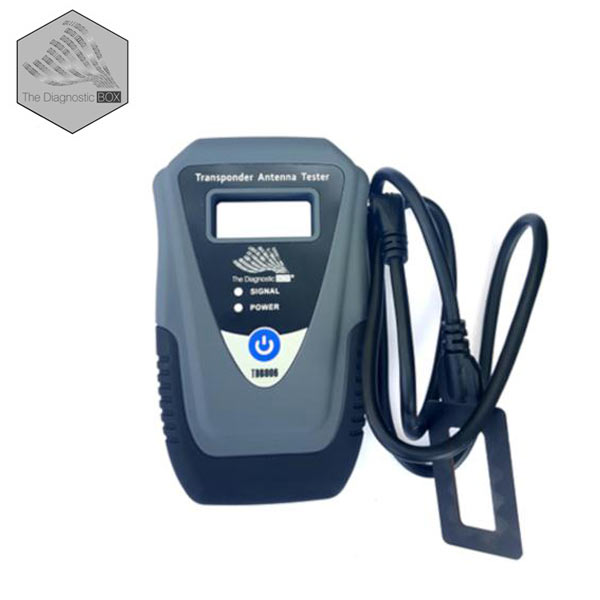

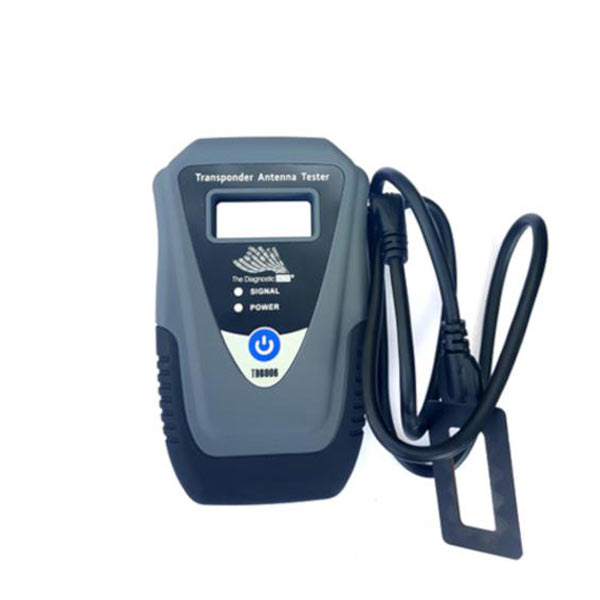

    The Diagnostic Box TDB006 Transponder Antenna Tester is a full-featured test device for checking the antenna used on transponder key systems. It has an internal antenna with a high gain receiver to pick of the antenna signal, but additionally, it has an external antenna wand connection to connect a wafer-thin antenna for testing the push start, card slots, and smart key types. The external wand can slide into the key or card reader as well as the key, easily picking up the signal being sent from the vehicle. When the key or card is inserted, the vehicle sends a signal to the transponder inside the key and the TDB006 will pick up this signal, and identify that the slot key or card reader is functioning correctly.

    Features

    • Visual LED Signal Indication
    • Signal Mimic Sounder
    • Auto Power Off
    • Power Indicator
    • External Antenna Wand


    $129.00
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

Specifications


Dimensions 84mm (3.31) W x 140mm (5.51) H x 29mm (1.14) D
Weight 155g (0.34lbs.)
Power 3x AA Batteries - Alkaline or NiMh Rechargeable
Operating Current 10 mA
Power Consumption 45 mW
Frequency Range 125 kHz and 134 kHz
Operating Temp. Range 32 to 122 Degrees F
0 to 50 Degrees C


Downloads

Spec Sheet
Operating Manual

TDB-TDB006


The Diagnostic Box TDB006 Transponder Antenna Tester is a full-featured test device for checking the antenna used on transponder key systems. It has an internal antenna with a high gain receiver to pick of the antenna signal, but additionally, it has an external antenna wand connection to connect a wafer-thin antenna for testing the push start, card slots, and smart key types. The external wand can slide into the key or card reader as well as the key, easily picking up the signal being sent from the vehicle. When the key or card is inserted, the vehicle sends a signal to the transponder inside the key and the TDB006 will pick up this signal, and identify that the slot key or card reader is functioning correctly.

Features

  • Visual LED Signal Indication
  • Signal Mimic Sounder
  • Auto Power Off
  • Power Indicator
  • External Antenna Wand

Specifications


Dimensions 84mm (3.31) W x 140mm (5.51) H x 29mm (1.14) D
Weight 155g (0.34lbs.)
Power 3x AA Batteries - Alkaline or NiMh Rechargeable
Operating Current 10 mA
Power Consumption 45 mW
Frequency Range 125 kHz and 134 kHz
Operating Temp. Range 32 to 122 Degrees F
0 to 50 Degrees C


Downloads

Spec Sheet
Operating Manual
