The Diagnostic Box - TDB013 - OBD Port Protector & Booster

In Stock
NSID: 7086

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

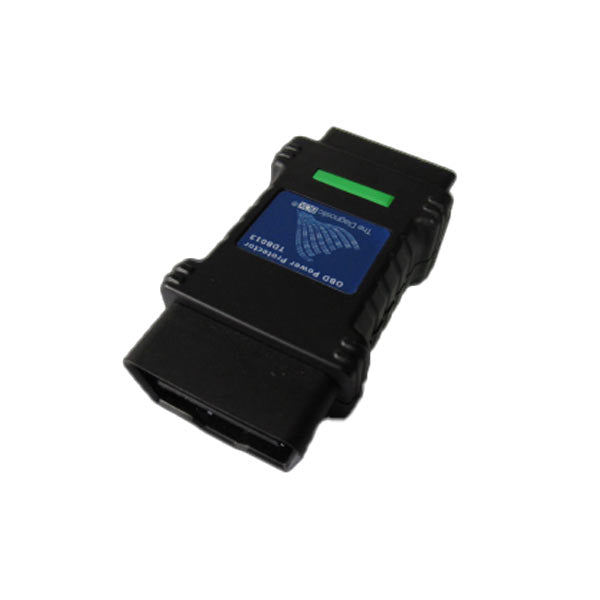

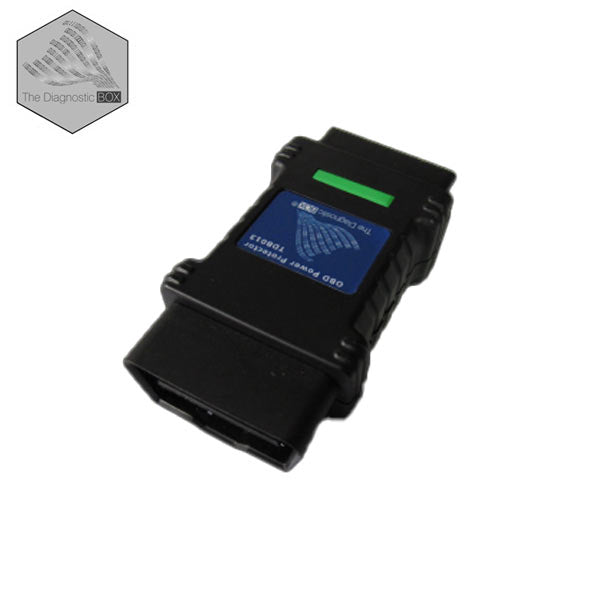

The Diagnostic Box TDB013 OBD Power Protector & Booster has been designed to protect your investment from being damaged by issues with the vehicle you are testing. Many vehicles can exhibit unknown problems and plugging in a piece of equipment worth thousands of pounds is sometimes a gamble.

With jump packs, booster packs and car chargers the amount of interference, voltage spikes and voltage surges can easily damage expensive equipment. The TDB013 adds an additional level of insurance and offers the protection you need. The TDB013 will take the damage rather than your expensive diagnostic equipment, and it won't leave you without your equipment for days and maybe even weeks while you get it repaired.

An additional clever feature of the TDB013 is its ability to manage the supply voltage that is on Pin 16 of the OBD port. This varies depending on the vehicle, condition of the battery and the wiring from the battery to the OBD port. It is not uncommon to have only 11 volts at the OBD port when the battery is at 12 volts. The TDB013 will maintain 12 volts to your diagnostic equipment regardless whether the OBD port is at 10 volts or even 15 volts. It will maintain a fixed 12 volts DC to pin 16. This means it will smooth out any changes in voltage due to overcharging, boost packs or battery chargers which can cause havoc with anything connected to the vehicle. In addition, if the battery level is a little on the low side, and the diagnostic equipment requires 12 volts to function, they have a fixed 12 volts even when the battery is at 10 volts can be a real plus when trying to diagnose a vehicle problem.


  • LED Indicators
  • Manage Pin 16 Supply Voltage
  • Maintains Constant 13 Volt Output

Call 1-800-878-6604 for Bulk / Dealer Pricing!


Dimensions 85mm (3.35") L x 45mm (1.77") W x 25mm (0.98") H
Max Continuous Input Voltage 24 Volts (clamping will occur at 27~30V)
Minimum Input Voltage 5 Volts
Continuous Current 1 Amp
Maximum Load Current 2 Amps (for 1 minute)
DC to DC Converter Frequency ~300 kHz
Efficiency 80% @ 1 Amp
Nominal Output Voltage 13 Volts
Input Current Protection 5 Amp resettable fuse
Temperature Range 32 to 122 Degrees F
0 to 50 Degrees C
IP Rating IP10
Input Connector OBD 16pin Male
Output Connector OBD 16pin Female
