TOPDON - ONE Lite - Professional 10.1" - Advanced Automotive Diagnostic Tool - J2534 Programmer (PRE-ORDER)
Available to Order
SKU:
TPD-TDONELITE
NSID:
92641
- $749.00
-
$898.80 - $749.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Please Note: This item is a Pre-order and will be available soon

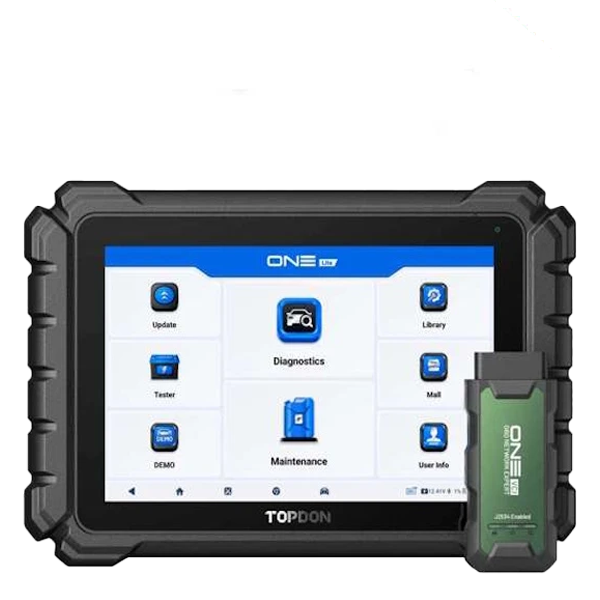

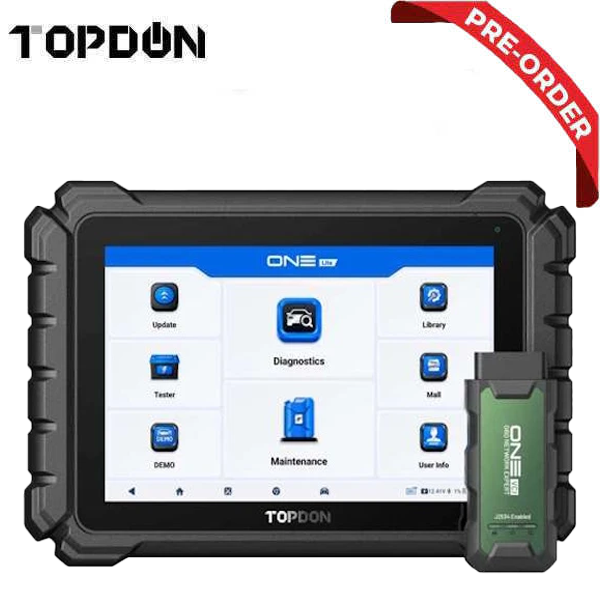

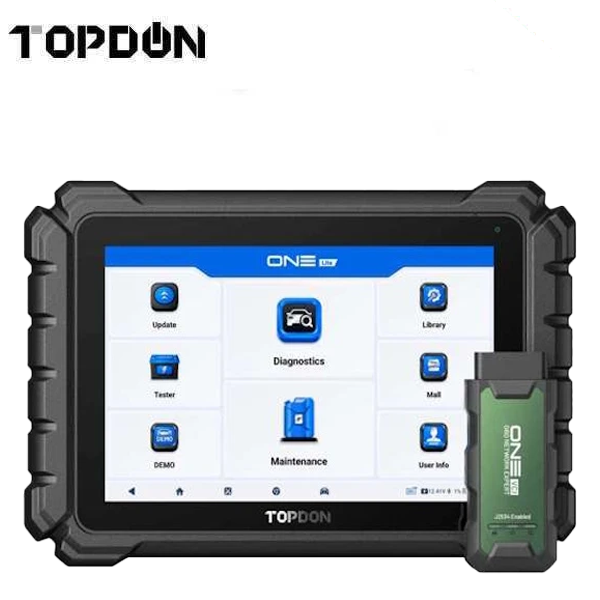

The TOPDON ONE Lite is a professional-grade automotive diagnostic scan tool designed for fast, accurate, and reliable vehicle diagnostics. Featuring dealer-level system coverage, advanced ECU coding, intelligent repair guidance, network topology mapping, and dual-WiFi connectivity, it helps technicians diagnose modern vehicles efficiently and keep shop workflow running smoothly.
Features:
- Operating System: Android 12 (closed system)
- Memory: 4 GB RAM + 128 GB storage
- Display: 10.1-inch LCD (1280×800)
- Battery: 10,000 mAh (3.8 V)
- Camera: 16 MP autofocus rear camera
- Wireless: Bluetooth 5.0; dual Wi-Fi modules
- Ports: USB-A (host), USB-C (host/device)
ONE System Specifications:
- ECU Coding for BMW/BENZ/VAG: Perform advanced ECU modifications and component matching to personalize and optimize the driving experience.
- Advanced OE Topology: View a vehicle’s full ECU network on a single screen to identify communication faults and isolate issues faster.
- TopFix AI Repair Assistant: Receive detailed DTC analysis, step-by-step repair guidance, wiring diagrams, and other technical reference information.
- J2534 Pass-Thru Programming: The ONE VCI functions as a J2534 pass-thru programmer, supporting OEM-compliant ECU reprogramming and flashing.
- *DoIP system diagnostics are not supported when used with OEM software.
- CAN FD and DoIP Protocol: Compatible with newer vehicles, including 2013+ BMW, 2016+ VW and Volvo, 2017+ Jaguar, 2018+ Mercedes-Benz, 2020+ GM and Chrysler models, and other models that rely on advanced communication protocols.
- FCA/Nissan/VAG SFD Gateway Support: Gateway support for performing diagnostics on protected vehicles, such as 2017+ Fiat, Chrysler, Alfa Romeo, 2018+ Nissan, VW, Audi, and more.
- WiFi Communication: Fast, stable WiFi communication between the VCI and the diagnostic device supports high-speed data transmission and reliable ECU communication.
- 50+ Maintenance Services: Perform common service resets, including Oil, BMS, and EPB, along with advanced functions such as dynamic ADAS calibration and A/C system adaptation.
Tablet:
- Bluetooth: Bluetooth 5.0 (up to m/33ft)
- Wi-Fi: 802.11 b/g/n (2.4 GHz), 2T2R; supports AP mode; up to 300 Mbps
