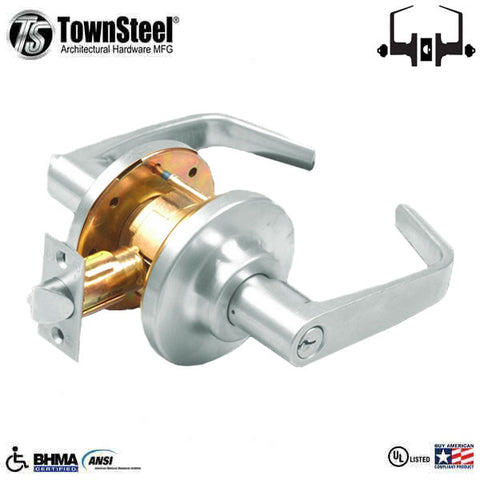

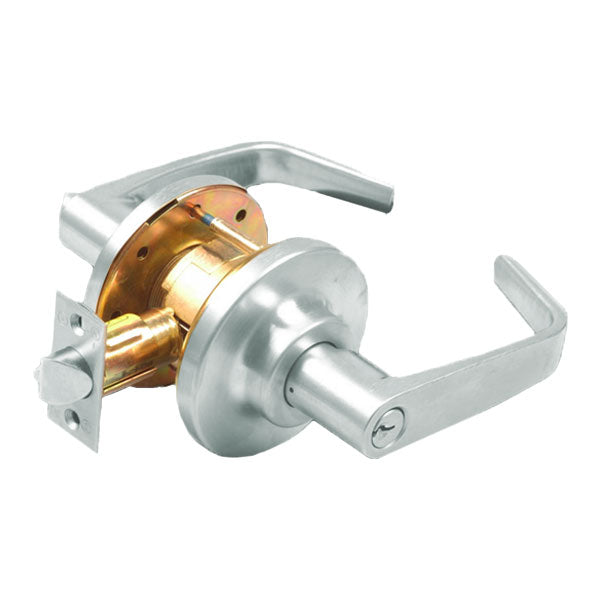

TownSteel - CG-84-BC - Commercial Lever Set Handle - Clutch Lever Set - 2-3/4 " Backset - Bright Chrome - Classroom - Grade 2
Available to Order
SKU:
TNS-CG-84-BC
NSID:
71124
The CG-84-BC Series Cylindrical Lockset is Grade 2 certified, UL Listed, 3-Hour Fire Rated and ADA Compliant. Clutched lever trim. Independent torsion spring design provides effective lever support. Most BHMA functions are available. Easy installation
More Information Below
Specifications
| Lock Function | ANSI F-84 Classroom |
| Handing | Non-Handed, ADA Compliant |
| Door Thickness |
1-3/8″-2″ wood or metal doors |
| Backset | 2-3/4″ standard, |
| Latch Bolt |
Stainless steel, 1/2″ throw, deadlocking on keyed functions |
| Strike |
ANSI strike standard |
| Cylinder |
6-pin brass, Schlage “C” keyway, 2 keys per cylinder |
| Keying |
Keyed different - KD (standard) |
| Trim Style | Solid Zinc Diecast Levers, Wrought Brass Roses and Concealed Screws |
| Finish | US26 - Bright Chrome |
| Certifications |
ANSI/BHMA - A156.2-2011 4000 Series Grade 2 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act |
Lock Function
