TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Chrome - Grade 2
TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Chrome -  Grade 2
TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Chrome -  Grade 2
TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Chrome -  Grade 2
TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Chrome -  Grade 2
TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Chrome -  Grade 2
TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Chrome -  Grade 2

TownSteel - DBT-61 - Commercial Deadbolt - Single Cylinder - Satin Chrome - Grade 2

Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

$69.00
Availability: In Stock
  • Product SKU: TNS-DBT-61-26D-ADJ
  • NSID: 7143
  • TNS-DBT-61-26D-ADJ

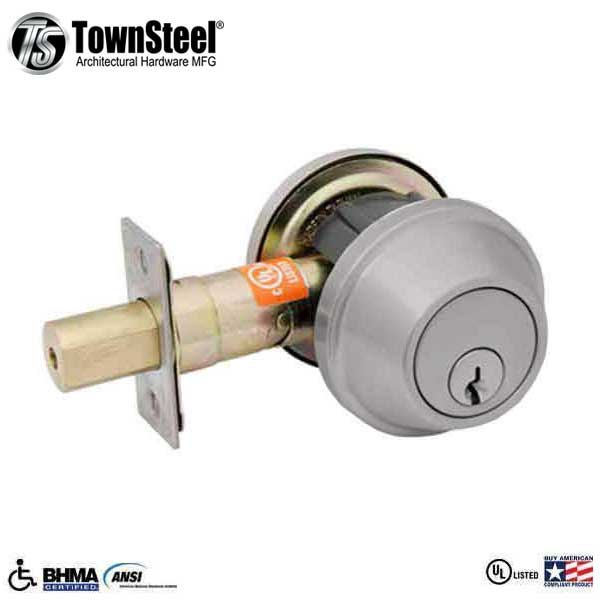

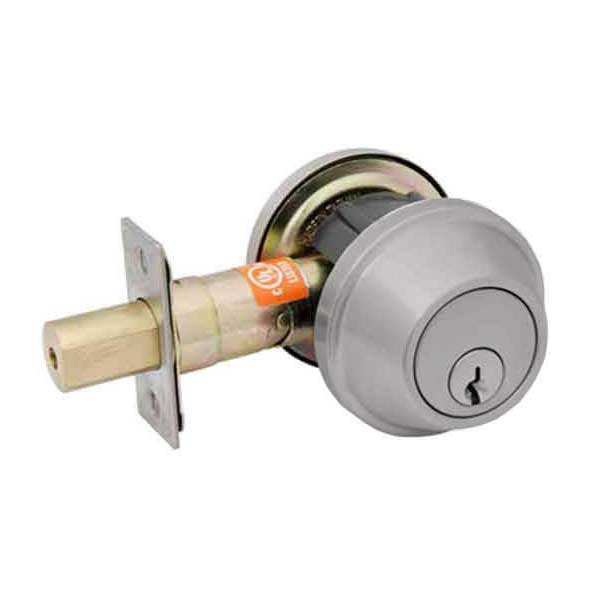

    The DBT-61 is a Grade 2 Deadbolt that provides a positive deterrent to forced entry.

    More Information Below


Specifications

Door Thickness
1-3/8”-1-3/4”
Backset 2-3/8"~2-3/4" Adjustable Backset
Deadbolt Solid brass with hardened steel rod insert, 1″ throw
Strike Rectangular with door reinforce 1-1/8” x 2-3/4” x 5/64”, square corner
Faceplate 1-1/8” x 2-1/4” , square corner
Function Single Cylinder
Cylinder 6 pin solid brass cylinder, Schlage “C” keyway
Keying
Keyed different - KD (standard)
Finish 626 - 26D - Satin Chrome
Certifications
ANSI/BHMA Meets or exceeds A156.5-2001 Grade 2 requirements
UL Listed 3-hour fire rating
BAA Meets guidelines of the Buy American Act
Manufacturer Warranty 1-year limited for electronic
5-year limited for finish
10-year limited for mechanical

Downloads


Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, support@townsteel.com or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
