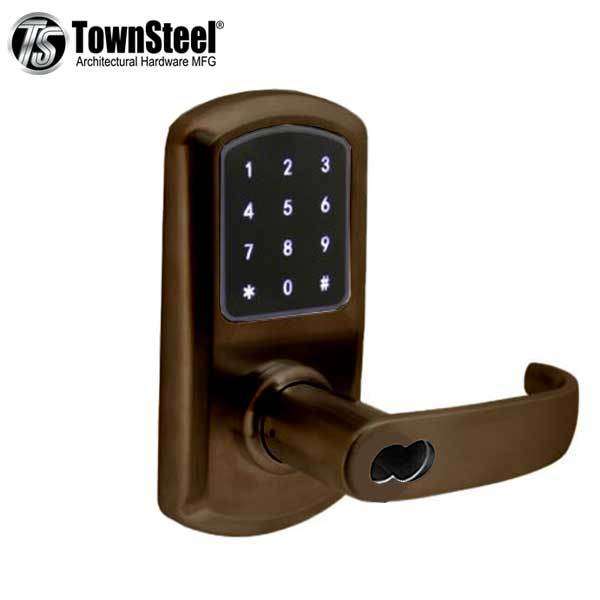

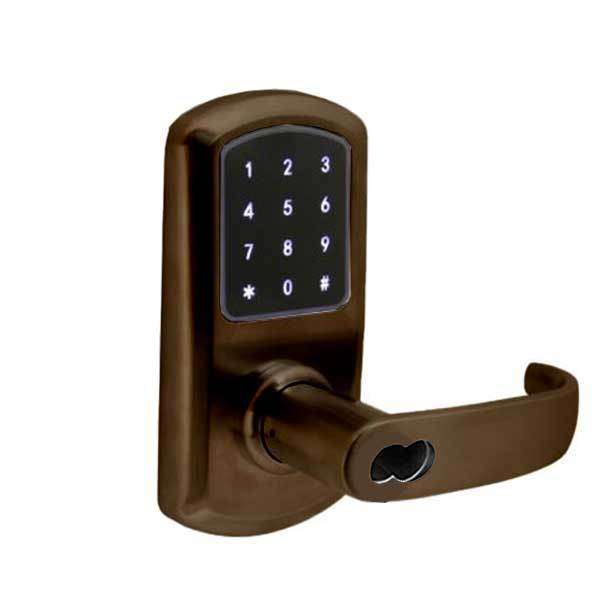

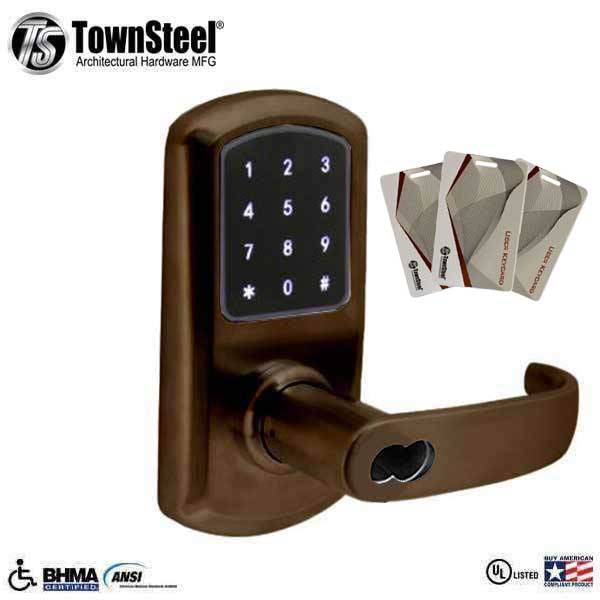

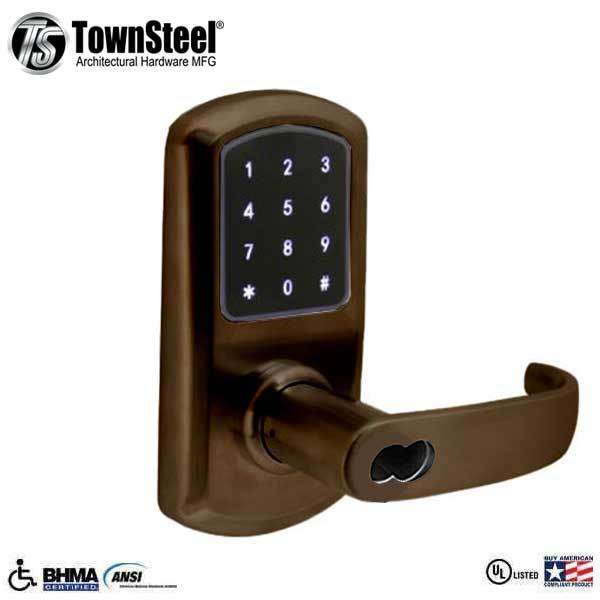

TownSteel - e-Elite 4010 - Electronic Push Button Lever Set - RFID - IC Core (SFIC) - 2-3/4″ Backset - Rigid Lever Set - Oil Rubbed Bronze - Key Override - Grade 1
The e-Elite 4000 is a modern, low profile lock with stainless steel latch bolt providing easy keyless access to your home using a highly responsive, 12-key illuminated touch and fingerprint resistant keypad programmable with up to 400 user codes interchangeable with RFID keycards/stickers. Mechanical key override lock is available as an extra back-up. Fits Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately)
The e-Elite 4000 series is quick and easy to program
More Information Below
Features
- 400 user codes interchangeable with RFID keycards/ stickers
- Code Length: 6 to 10 digits, with anti-pry
- Powered with 4 AA Alkaline batteries, up to 1 year battery life
- System Settings: Passage Mode, Verification Mode, and Sound Adjustment
Specifications
Door Thickness: | 1-3/4” |
Backset | 2-3/4” standard |
Trim |
Rigid Sentinel Lever |
Latch bolt: | Stainless steel, deadlocking, ½”throw |
Faceplate | 1-1/8“x 2-1/4” |
Strike | ASA strike standard, 1-1/4” x 4-7/8” |
Key Override | Yes |
Cylinder | Small format IC , 6 or 7-pin, Best “A” keyway (Core sold separately) |
Power Supply |
4AA batteries - No Hard wiring |
Battery Life |
Up to 1 year w/ Low Battery Alert |
Certifications | ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act |
Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
