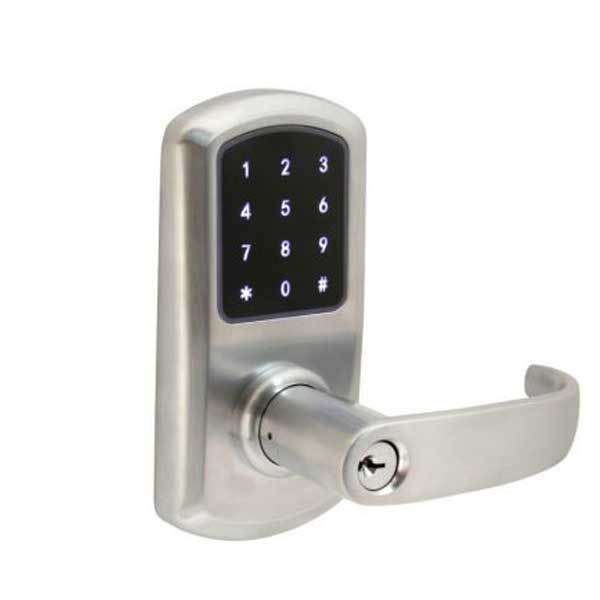

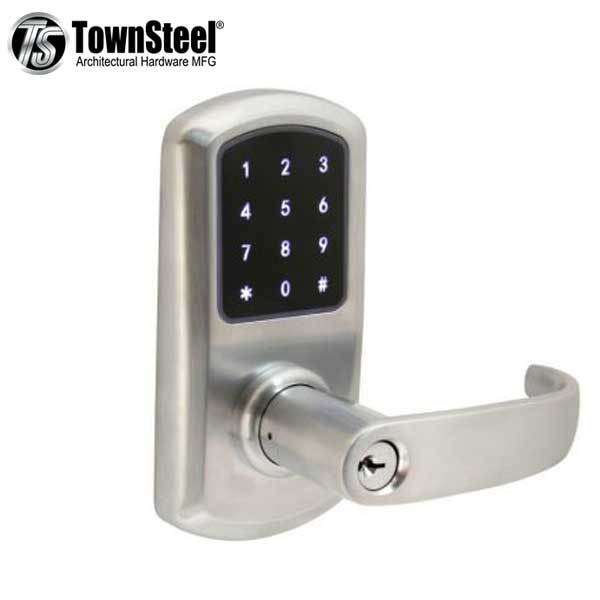

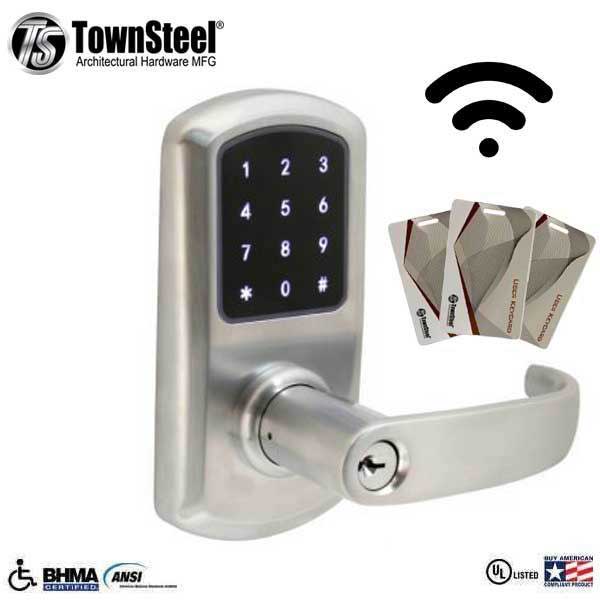

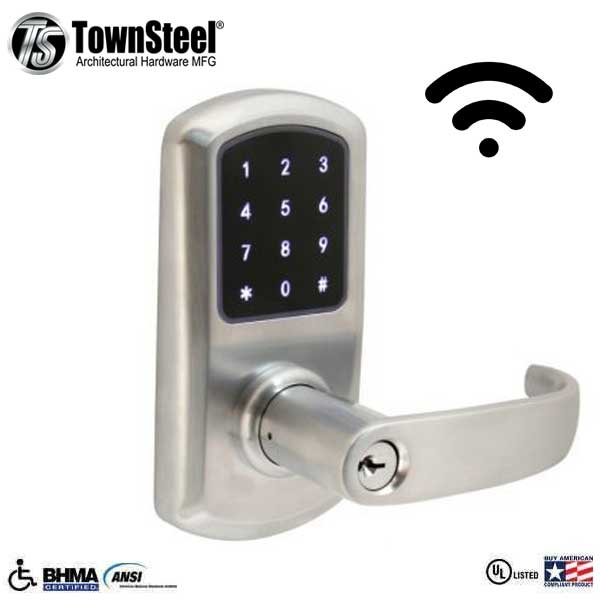

TownSteel - e-Elite 5010 - Electronic Push Button Lever Set - Wi-Fi - Optional Backset - Rigid Lever Set - Satin Chrome - Key Override - Grade 1
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
The e-Elite 5000 is a modern, low profile lock with stainless steel latch bolt providing easy keyless access to your home using a highly responsive, 12-key illuminated touch and fingerprint resistant keypad programmable with up to 400 user codes interchangeable with RFID keycards/stickers. Mechanical key override lock is available as an extra back-up. The e-Elite 5010 comes with WiFi / RF technology, lock programming with the TownSteel app TSE Home.
Apple iOS - Link HERE or Android - Link HERE
The e-Elite 5000 series is quick and easy to program
More Information Below
Features
- 400 user codes interchangeable with RFID keycards/ stickers
- Code Length: 6 to 10 digits, with anti-pry
- Powered with 4 AA Alkaline batteries, up to 1 year battery life
- System Settings: Passage Mode, Verification Mode, and Sound Adjustment
- RF/ WiFi technology allows programming through our mobile app
TownSteel Gateway Required with Bluetootth / BLE and Wifi /RF - Lock Features
Specifications
| Door Thickness: | 1-3/4” |
| Backset | 2-3/4” -- 2-3/8" Optional |
| Trim |
Rigid Sentinel Lever |
| Latch bolt: | Stainless steel, deadlocking, ½”throw |
| Faceplate | 1-1/8“x 2-1/4” |
| Strike | ASA strike standard, 1-1/4” x 4-7/8” |
| Key Override | Yes |
| Cylinder | 6 pin Schlage C keyway, standard |
| Power Supply |
4AA batteries - No Hard wiring |
| Battery Life |
Up to 1 year w/ Low Battery Alert |
| Certifications | ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
