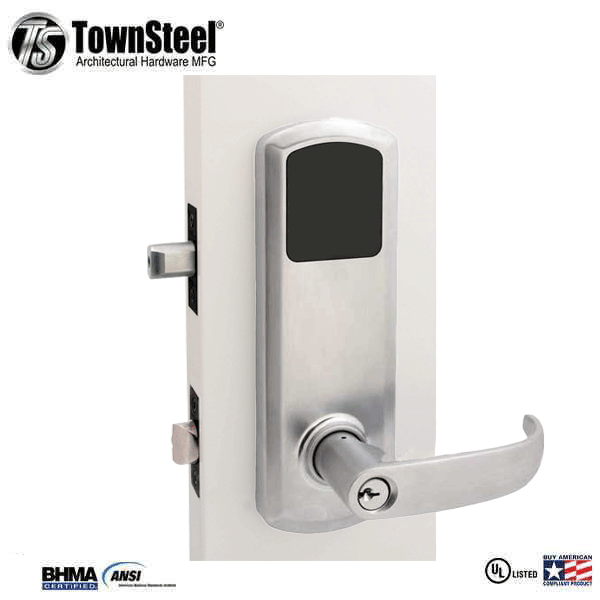

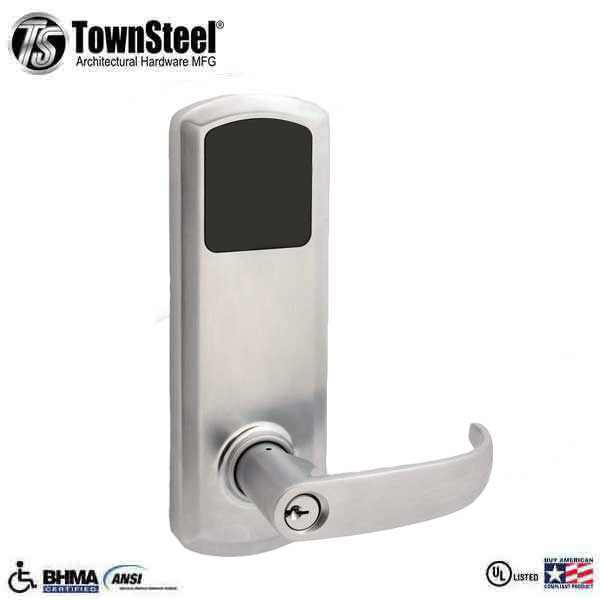

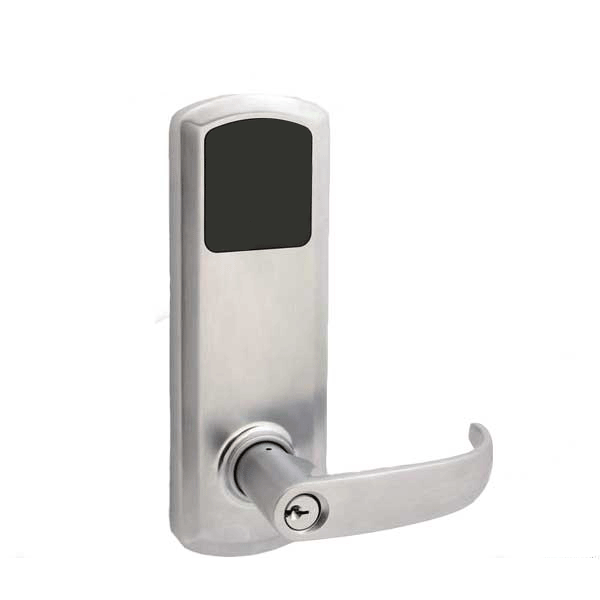

*Discontinued* TownSteel - E-Genius 5000 - Interconnected Electronic Touch Keypad Lock - Entry - Bluetooth & RFID - 4" - On Center - Right Handed - Satin Chrome - Grade 1
Out of Stock
SKU:
TNS-EG5BTT-SRH626-40WSC
NSID:
24947
The e-Genius 5000 is the only keyless double lock providing the ability to lock and unlock an interconnected dead-latch and deadbolt with a single lift of the lever from inside and outside of your home. Access your home with keyless freedom and convenience using a highly responsive, 12-key illuminated touch and fingerprint resistant keypad programmable with up to 400 user codes interchangeable with RFID keycards/stickers. Mechanical key override lock is available as an extra back-up. The e-Genius 5000 also comes with BLE or RF technology, available with our app.
- Latchbolt can always be locked so that when shutting the door, it is automatically locked
- Extended deadbolt
- Right Hand
- Sentinel Lever
- Interconnected lock that can retract the deadbolt and latch bolt in a single motion
- When locked, the outside lever can be rotated but will not retract the deadbolt or latch bolt

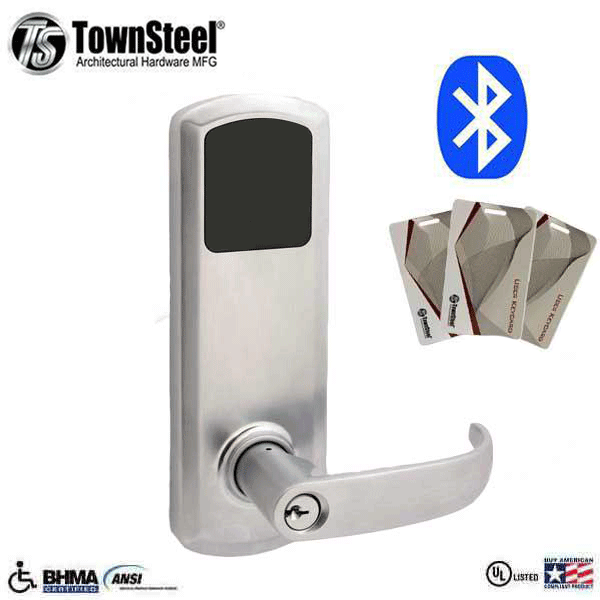

- Bluetooth and RFID
Description
x
| Function | Entry |
| Door Thickness: | 1-3/4” |
| Backset | 2-3/8″ – 2-3/4″ adjustable |
| Lock Body | 4" |
| Trim |
Clutched |
| Latch bolt: | 1/2“ throw stainless steel deadlocking |
| Faceplate | 1-1/8" x 2-1/4" |
| Deadbolt Strike | 1-1/8″ x 2-3/4″ radius corners with security underplate |
| Key Override | Yes |
| Cylinder | 6 pin Schlage C keyway, standard |
| Power Supply |
4 AA Alkaline batteries - No Hard wiring |
| Battery Life |
Up to 1 year |
| Finish | 626 - US19D - Satin Chrome |
| Handing | Right Handed |
| Certifications | ANSI/BHMA A156.2 -- A156.2-2011 Grade 1 certified UL/ULC -- UL 10C 3-hour rated BAA -- Meets guidelines of the Buy American Act ADA --- Meets requirements of the Americans with Disabilities Act RoHS -- Meets requirements of EU RoHS Directive 2002/95/EC |
| Manufacturer Warranty | 2-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
