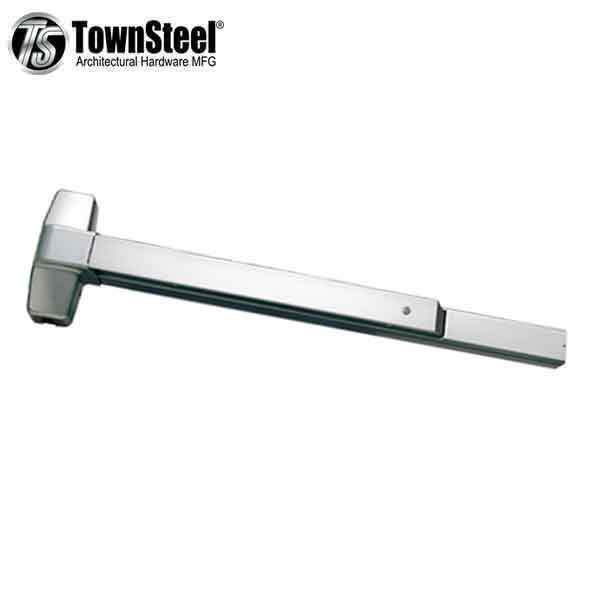

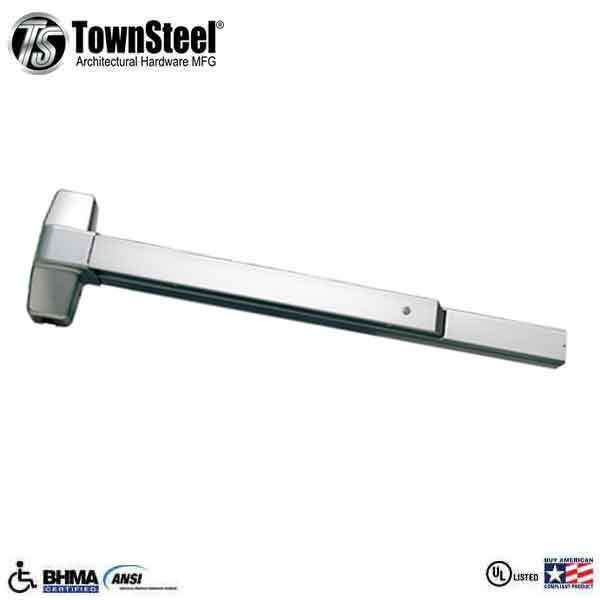

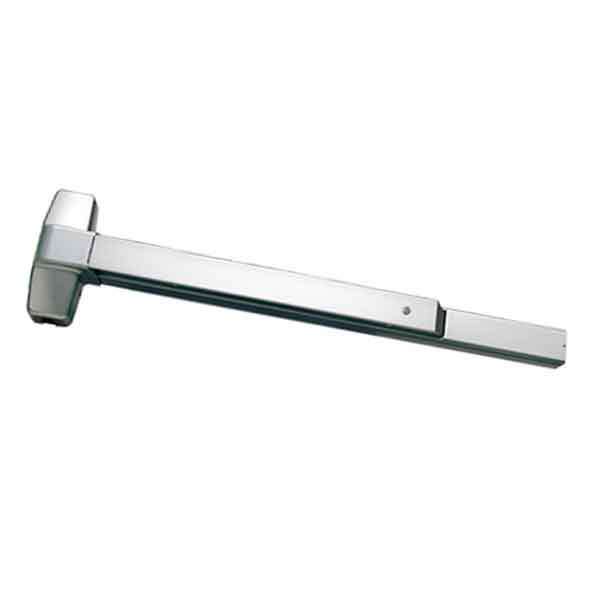

TownSteel - ED5500 - Panic Exit Device Push Bar - 36" - Satin Stainless - Grade 1
TownSteel - ED5500 - Panic Exit Device Push Bar - 36" -  Satin Stainless -  Grade 1
TownSteel - ED5500 - Panic Exit Device Push Bar - 36" -  Satin Stainless -  Grade 1
TownSteel - ED5500 - Panic Exit Device Push Bar - 36" -  Satin Stainless -  Grade 1
TownSteel - ED5500 - Panic Exit Device Push Bar - 36" -  Satin Stainless -  Grade 1
TownSteel - ED5500 - Panic Exit Device Push Bar - 36" -  Satin Stainless -  Grade 1
TownSteel - ED5500 - Panic Exit Device Push Bar - 36" -  Satin Stainless -  Grade 1

TownSteel - ED5500 - Panic Exit Device Push Bar - 36" - Satin Stainless - Grade 1

$181.86 $433.00
Available: In Stock
Wishlist
  • Product SKU: TNS-ED5500-36-32D
  • TNS-ED5500-36-32D
    Item Number: 6454

    The ED5500 Exit Device is designed to meet ANSI/BHMA Grade 1 requirements on a budget. ED5500 is ANSI/BHMA A156.3-2008 Grade 1 certified and UL listed for panic exit hardware.

    More Information Below

    $181.86

Specifications

Application
For all types of single or double door with a mullion
Door Thickness
1-3/4″-2-1/4″
Backset 2-3/4″ standard,
Door Width
36″ device for up to 3′ wide opening
Operation Pressing push bar retracts latch bolt when not dogged
Dogging Flat Key standard
Strike
106 type Dull Blank, 2 pieces shims included
Latch bolt
Stainless Steel, deadlocking, 3/4″ throw
Fasteners
For 1-3/4″ – 2-1/4″ thick wood and metal door applications
Handing Non-handed
Finish US32D
Trim Available in 200 and 300 series, sold separately
Centerline from Finished Floor 39-5/8″
Certifications
ANSI/BHMA - A156.3-2008 Grade 1 Certified
UL - UL 305 panic hardware listed
BAA - Meets requirements of the Buy American Act
ADA - Meets guidelines of the Americans with Disabilities Act
Manufacturer Warranty 1-year limited for electronic
5-year limited for finish
10-year limited for mechanical



Downloads
