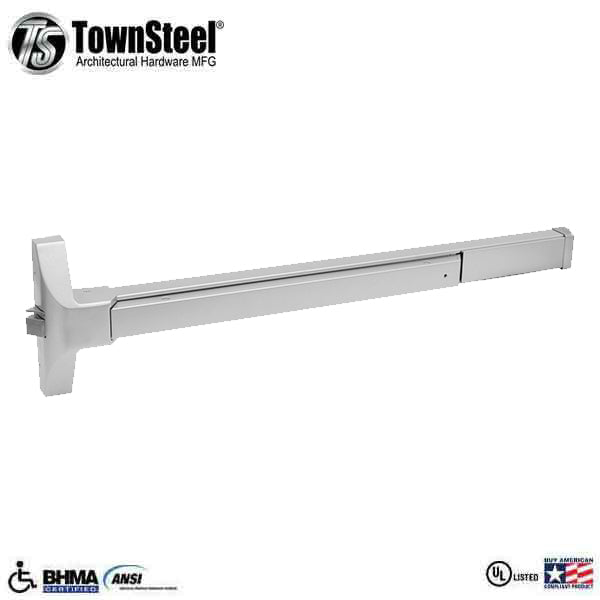

*Discontinued* TownSteel - ED6500 - Narrow Stile Panic Exit Device Push Bar - 36" - Stainless Steel - Grade 1
Out of Stock
SKU:
TNS-ED6500-36-32D
NSID:
7170
- $247.80
-
- $247.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TNS-ED6500-36
The ED6500 Series rim device is designed for narrow stile application such as aluminum frame glass doors. It’s UL listed Grade 1 panic device.
More Information Below
- $247.80
-
- $247.80
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications
| Application |
For wood, metal or aluminum glass door with 1-3/4″ minimum stile width |
| Handing | Non-handed |
| Door Thickness |
1-3/4″ standard |
| Door Widths |
28″ to 36″, no cutting for 36″ door |
| Door Width |
36″ device for up to 3′ wide opening |
| Device Length |
34-1/2″ |
| Maximum Cut Down |
8″ |
| Centerline from Finished Floor | 41″ |
| Push Rail Projection |
Neutral: 2-1/2″, Depressed: 1-7/8″ |
| Latch Bolt |
3/4″ throw, stainless steel |
| Strike | 246 Strike standard |
| Dogging | Allen wrench type |
| Mounting |
Furnished with wood and machine screws |
| Finish | US32D - Satin Stainless |
| Certifications |
UL/ULC -Listed panic and safety for all types of 4’x8′ single and 8’x8′ double doors ANSI/BHMA - Meets A156.3 Grade 1 requirements BAA - Meets requirements of the Buy American Act |
| Manufacturer Warranty | 1-year limited for electronic 5-year limited for finish 10-year limited for mechanical |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Townsteel directly at 877-858-088, support@townsteel.com or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
