*Discontinued* TownSteel - MRX-A - 5-Point Ligature Resistant Mortise Lock with Arch Escutcheon Trim - Optional Function - Optional Handing - Fire Rated - Stainless Steel - Grade 1
Out of Stock
SKU:
TNS-MRX-A-L-02-630-RH
NSID:

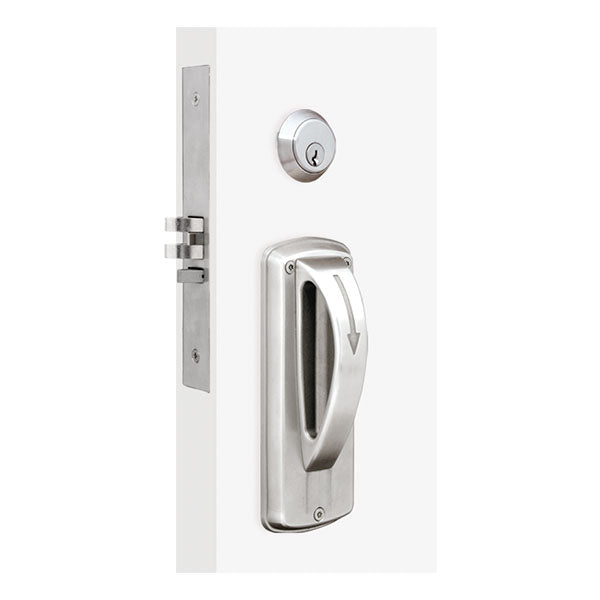

The MRX-A is an ANSI Grade 1 mortise lock with a ligature-resistant arch lever. MRX-A is suitable for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. This product is equipped with a 5-point ligature-resistant stainless steel arch lever and tamper-resistant mounting screws. The MRX-A includes a cylinder. The MRX-A can be mounted on both a wood and metal door.
- 5-point ligature-resistant stainless steel arch lever
- With cylinder
- Tamper-resistant mounting screws
- Mount onto wood or metal door
- Certifications: ANSI/BHMA Grade 1, UL Listed. Meets BAA and ADA requirements.
Description
x
| Series | MRX |
| Ligature Compliant? | Yes |
| Code Compliances | Grade 1 listed, Certified ANSI/BHMA |
| Lockbodies |
Rigid, Auto Deadbolt |
| Backset |
2-3/4" |
| Functions | (02) Privacy/Bathroom, (07) Storeroom or Closet, (30) Institutional, |
| Handings | Left Handed, Right Handed |
| Door Thickness | 1-3/4" standard |
| Strike | 1-1/4″ X4-7/8″, Stainless steel, ASA |
| Faceplate | 1-1/4" x 8", stainless steel |
| Cylinder | 6 pin Schlage “C” keyway, standard, 2 keys per cylinder |
| Cover Plate | 7-1/2" x 2-3/4" x 1/2", stainless steel |
| Arch Lever | Stainless steel |
| Thumb Turn | Stainless steel, ligature resistant, ADA |
| Mounting | Through-bolt, tamper resistant mounting screws, for wood and metal door |
| Trim | Sectional |
| Finish | 630, Satin Stainless Steel |
