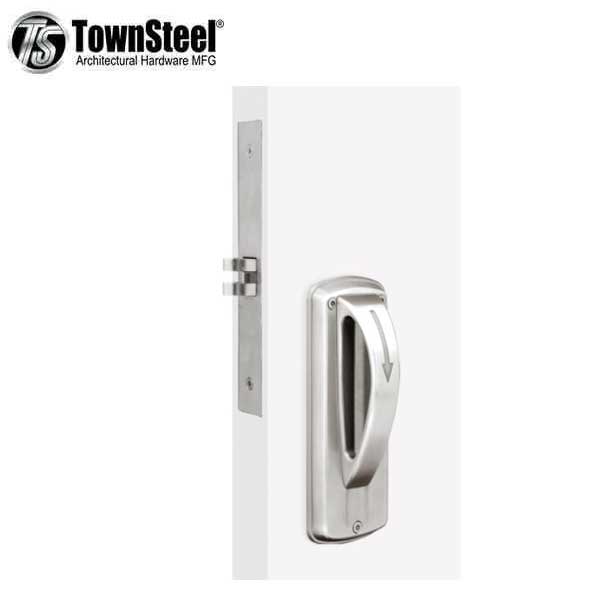

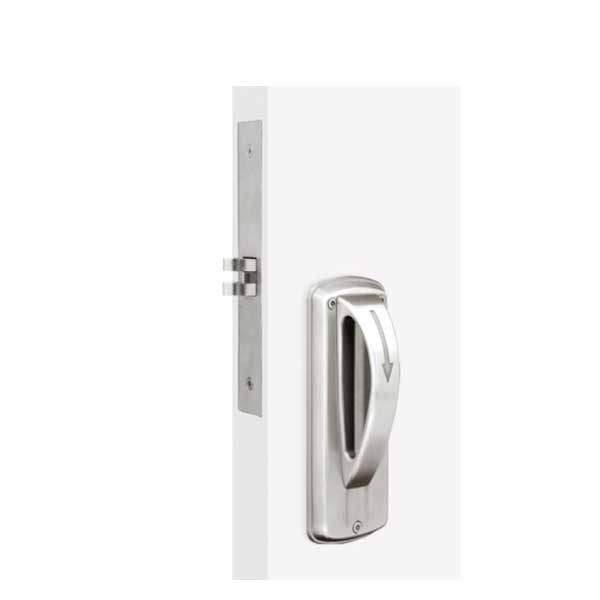

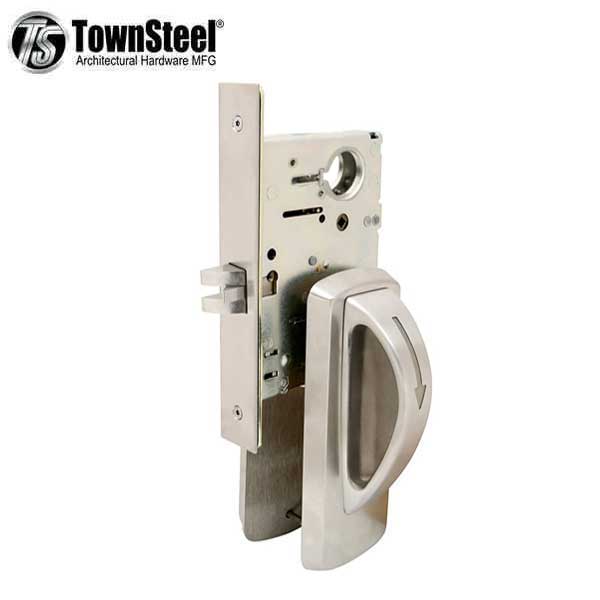

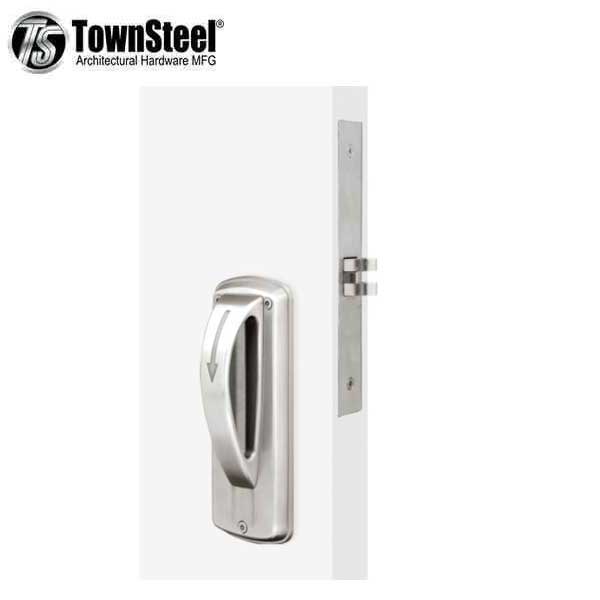

TownSteel - MRX-A - 5-Point Ligature Resistant Mortise Lock - Passage - LH/RH - Fire Rated - Stainless Steel - Grade 1
TNS-MRX-A-01
The MRX-A is an ANSI Grade 1 mortise lock with a ligature-resistant arch lever. MRX-A is suitable for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. This product is equipped with a 5-point ligature-resistant stainless steel arch lever and tamper-resistant mounting screws. The MRX-A can be mounted on both a wood and metal door.
Features:
- 5-Point Ligature Resistant Mortise Lock
- Non Keyed
- Passage Function
- Optional Handing
- ANSI/BHMA Grade 1, UL Listed
- Meets requirements of the Buy American Act
- Meets guidelines of the Americans with Disabilities Act
Specifications:
Application | For facilities housing patients in risk |
Door Thickness | 1-3/4" |
Backset | 2-3/4″ |
Lock Body | 4" |
Function | Passage |
Handing | Optional Handing |
Latch bolt | Stainless steel, 1/2″ projection |
Faceplate | Stainless steel 1-1/4" x 8" |
Keying | Non Keyed |
Strike | Stainless steel, ASA, 1-1/4″ X4-7/8″ |
Mounting | Through-bolt, tamper resistant mounting screws, for wood and metal door |
Finish | 630 Stainless Steel |
Cover Plate | Stainless Steel, 7-1/2” x 2-3/4” x 1/2” |
Certifications | UL/ULC 10C listed 3-hour rating Meets requirements of the Buy American Act Meets guidelines of the Americans with Disabilities Act |
Manufacturer Warranty | 10-year manufacturer limited warranty |
