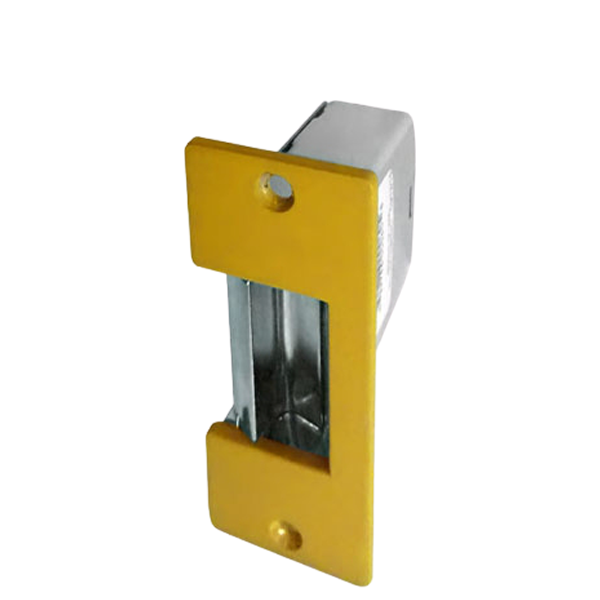

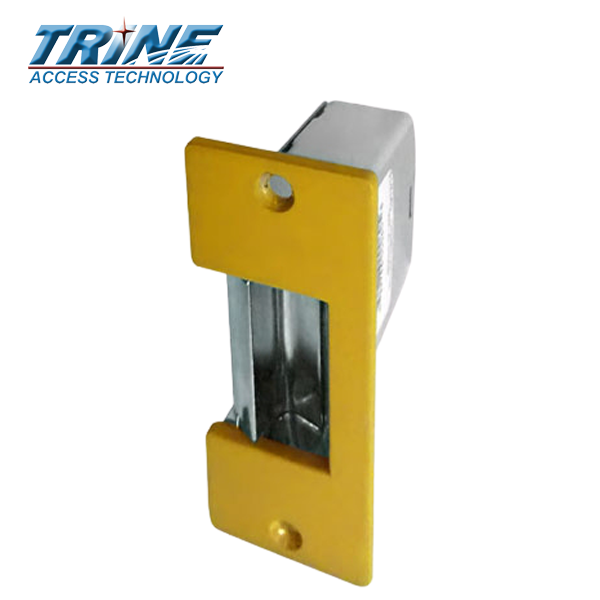

Trine - 005 - 3-1/2” Light Commercial Electric Strike - Brass Powder Coated - Fail Secure-Standard Action - Grade 1
In Stock
SKU:
TRN-005-ES
NSID:
7181
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $42.52
-
$59.99 - $42.52
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Trine 005 3-1/2” Light Commercial Electric Strike is for use in replacement installations in wood jambs and iron gates. Use with bored cylindrical locksets having up to 5/8” throw, based on 1/8” door gap.
- Face Plate 3-1/2” x 1-3/8” -- Mortise Backset 2-3/4” -- Cavity Depth 1/2” -- Cavity Width 9/16” -- Cavity Height 1-1/2”
00 Series Features
- Durability - 500,000 Life Cycles
- Holding Force - 1000 lbs
- Only 1 Moving Part in Locking Mechanism
- Non Handed Operation
- Heavy Duty Latch Spring
- Fail Secure-Standard Action (Unlocks with Power)
| Voltage | Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 8-16VAC/4-6VDC | 1.3-2.7 | 1.4 | Intermittent | Buzz | Black |
Downloads:
Dimensions
