Trine - 3024 - 3000 Series - 24 DC - Electric Strike - Fire Rated ANSI - Grade 1 - UHS Hardware
Trine - 3024 - 3000 Series - 24 DC - Electric Strike - Fire Rated ANSI - Grade 1 - UHS Hardware

Trine - 3024 - 3000 Series - 24 DC - Electric Strike - Fire Rated ANSI - Grade 1

In Stock
SKU: TRN-3024
NSID: 36557

Get it shipped ! Order within:

Get it shipped ! Order within:

Get an Extra Hour with

$97.48
$107.51
$97.48

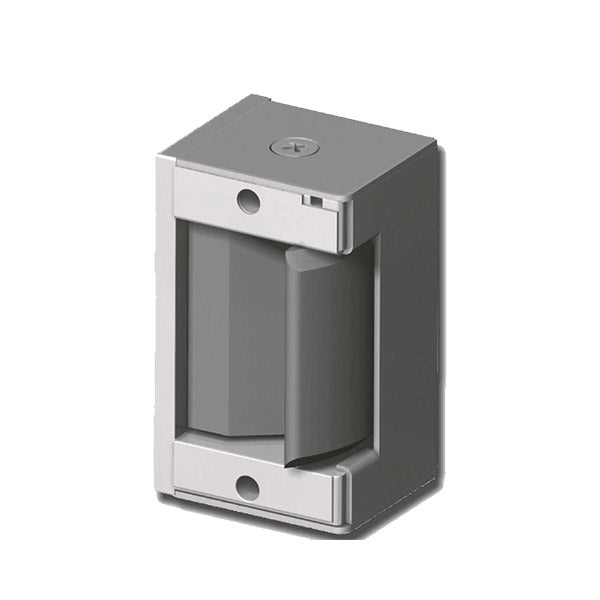

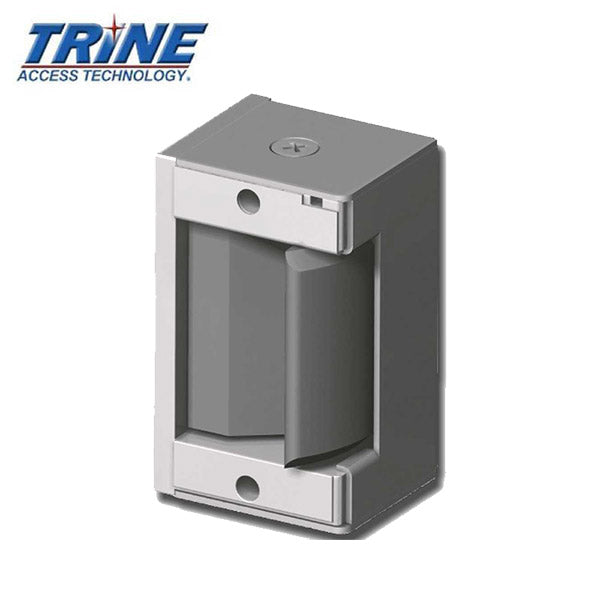

TRINE 3000 SERIES THE SMALLEST ELECTRIC STRIKE IN THE WORLD FOR CYLINDRICAL LOCKS AND DEADLATCHES

Features:

  • GRADE 1
  • 500,000 + life cycles
  • 1,500 + lbs. holding force (1,200 lbs. for 334)
  • Dynamic Force 70 ft/lb.
  • Solid stainless steel latch and in the device body.
  • Accepts a bolt with a up to 5/8” throw
  • Non-handed Unit (except 458, 478 LO/RO)
  • Fail secure - standard action (unlocks with power)
  • Fail safe - “RS” (locks with power)
  • Mechanism spacers increase cavity depth up to 1/8”
  • Available in 24 volts DC or with a Line Condition (LC100) which allows 11 thru 29 AC/DC Voltage input -- with surge and kickback protection and continuous duty (use RS for Fail Safe configuration) - must use LC100
Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Volts Current/Amps Ohms (Ω) Duty Sound Wire Color
    24DC 0.240 100.0 Intm Silent White
