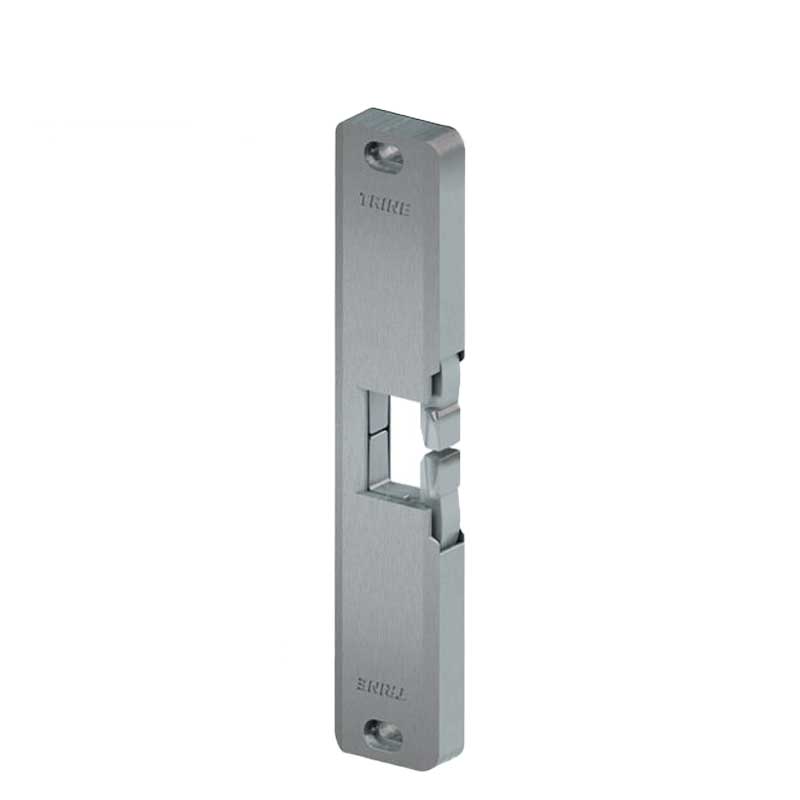

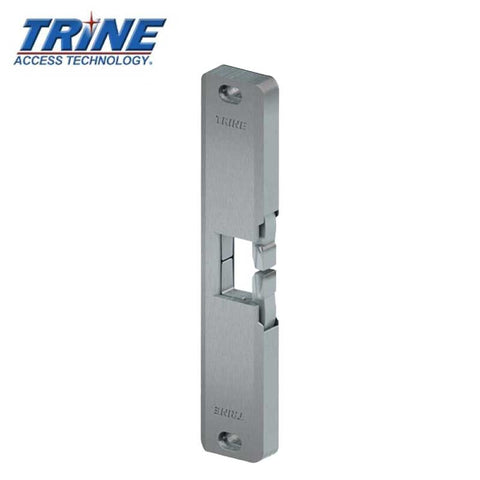

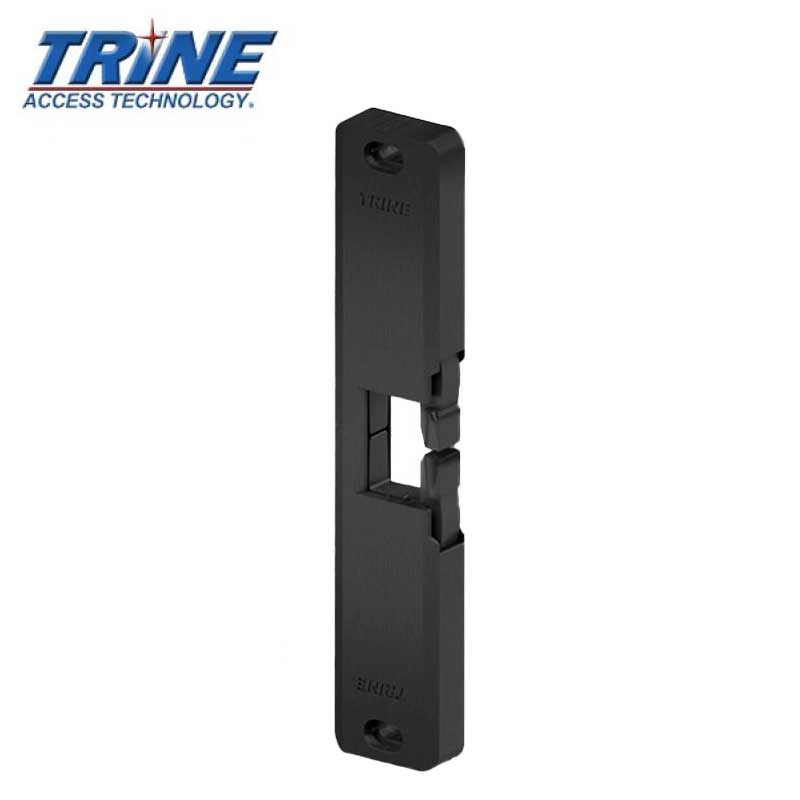

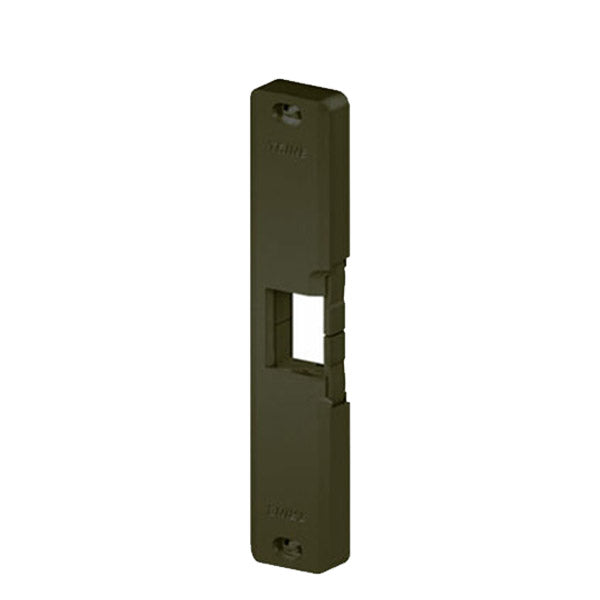

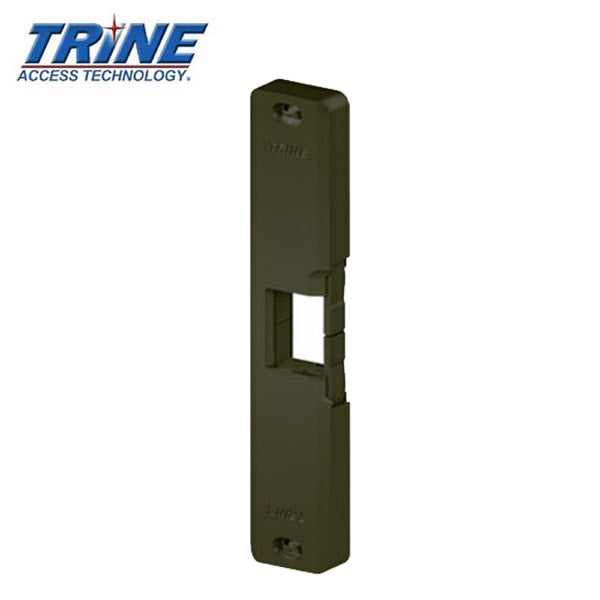

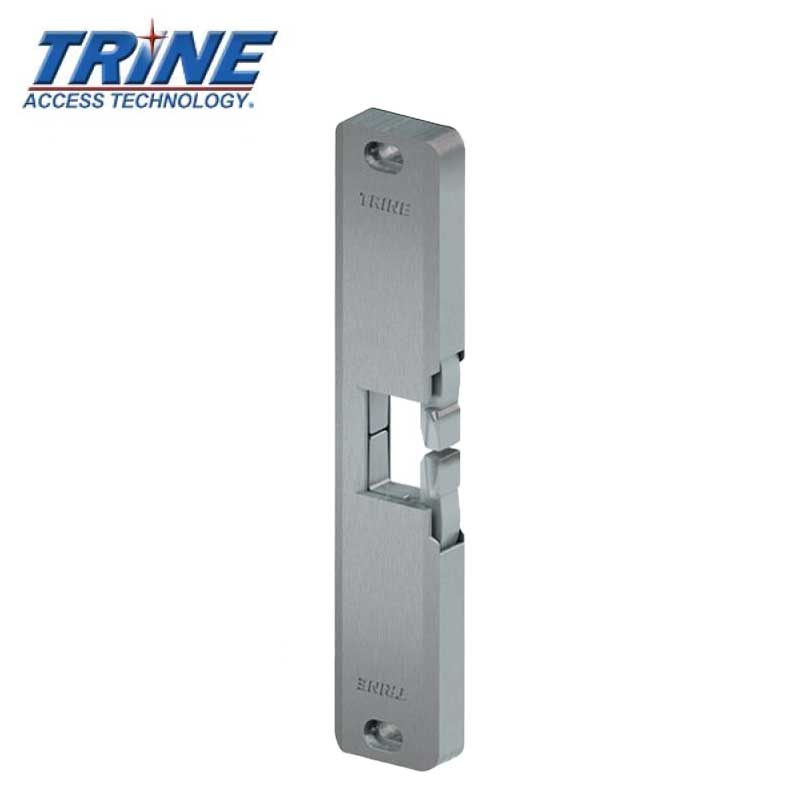

Trine - 4800F - 3/4″ Electric Strike - Fire Rated ANSI - Optional Finish - Grade 1
In Stock
SKU:
TRN-4800F-32D
NSID:
7175
30742
36547
- $337.08
-
$400.98 - $337.08
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TRN-4800F-XXX
3 Hour fire rated electric strike for use with surface mounted rim exit devices with 3/4" (or greater) throw. For use in new or replacement installations in wood or metal single door frames.
Features:
- Fire rated standard, 3/4" strike - NO UPCHARGE FOR FIRE RATING. (like the competition)

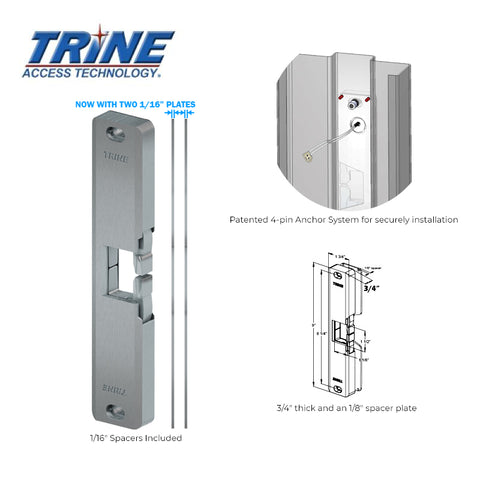

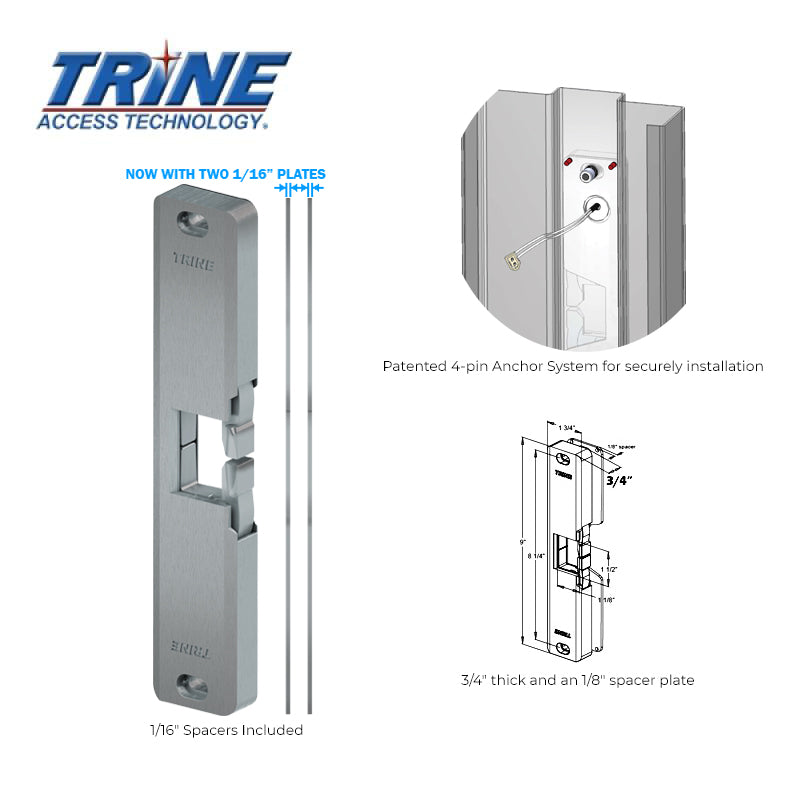

- The cavity is completely open -- which means the 4800F allows for a full 3/4" depth and upto a 1" throw with the included two (2) 1/16" spacer plates -- competitor backplates do not allow for this versatility.
- Built-in electronics automatically allow 11 thru 28 AC & DC Voltage input -- with surge and kickback protection
- Comes with Trines Patented 4-Pin Anchoring System.
- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
- Fail-safe/Fail-secure - field selectable (Like all electric strikes, it is not fire rated in
- Fail safe mode).
- Grade 1 Electric Strike -- 1,500,000+ Life cycles -- 3,000+ lbs. Holding Force
- No cutting or worrying about voltage means you are always prepared.
4800F Standards
- Class A, 3 Hour Single door/frame configuration
- – UL10C, Fire Tests of Door Assemblies
- – UBC 7-2, Uniform Building Code
- – CAN4 S104, Standard Method for Fire Tests of Door Assemblies NFPA 252
- Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies
- NOTE: WH fire listing is void when using fail-safe action.
- BHMA Grade 1 Electric Strike — 1,500,000+ Life cycles — 3,000+ lbs. Holding Force
Voltage | Pull In/Holding Current/Amps |
Duty | Sound |
---|---|---|---|
12DC | 0.566/0.217 | Intm./Cont. | Silent |
24DC | 0.253/0.099 | Intm./Cont. | Silent |
12AC | 0.509/0.181 | Intm./Cont. | Silent |
16AC | 0.405/0.149 | Intm./Cont. | Silent |
24AC | 0.215/0.087 | Intm./Cont. | Silent |
Downloadable content:
Note: WH fire listing is void when using fail-safe action.
