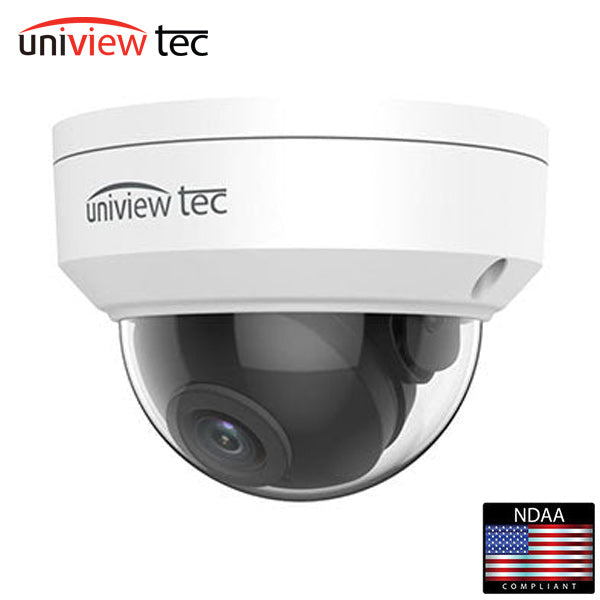

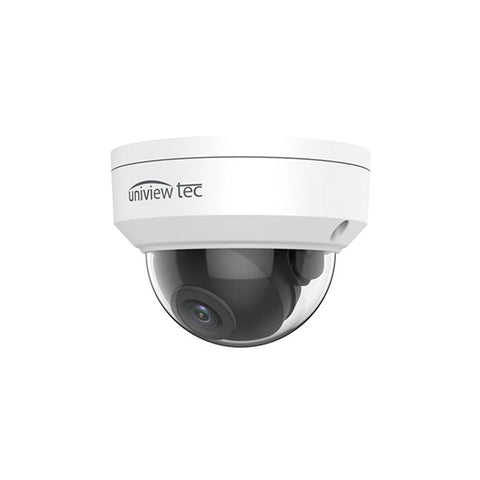

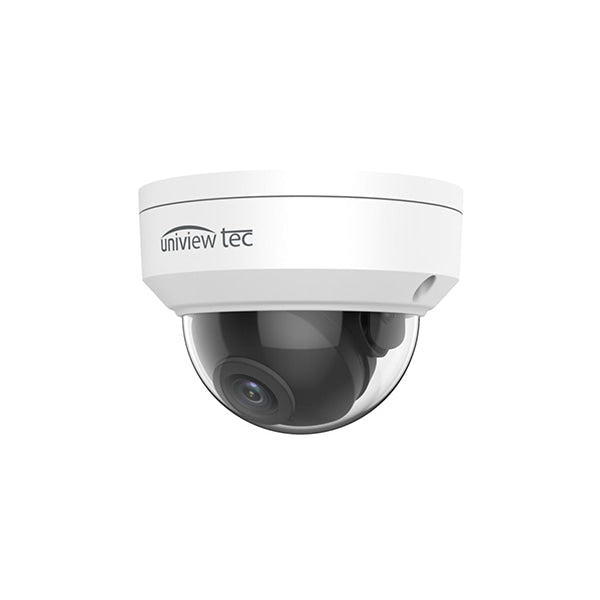

*Discontinued* Uniview Tec / UVT / IPV428X / Vandal Dome Camera / 4MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR
Out of Stock
SKU:
UNT-IPV428X-delete
NSID:
68324
- $84.00
-
$95.96 - $84.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 98 Feet
- 2.8mm fixed lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Triple Video Streams and ONVIF Profile S Compliant
- Powerful Video Analytics such as Intrusion, Tampering, Audio and Human Body Detection
- PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices
- $84.00
-
$95.96 - $84.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8mm @ F2.0 |
| Angle of View (H x V) | 95.8° x 55.2° |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range & Wavelength | Up to 30m (98 ft) IR range; 850nm |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520) @ 30fps; or (2560 x 1440) @ 30fps; or 3MP (2304 x 1296) @ 30fps Sub: 4CIF (704 x 576) @ 30fps Third Stream: CIF (352 × 288) @ 30fps |
| HLC, BLC, Defog, Flip, 9:16 Corridor |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 4 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Behavior Video Analytics | Intrusion, Human Body Detection, Motion, Tampering and Audio Detection |
| Local and Network Storage | Micro-SD, up to 256GB / Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC +/-25%, PoE (IEEE802.3 af); Power consumption: Max 5.5W |
| Dimensions (Ø x H) & Weight | Φ108.7 x 81 mm (Ø4.3” x 3.2”); 0.45kg (0.99lb) |
| Operating Temperature & Humidity |
-35°C ~ +60°C (-31°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, IK10; CE, FC |
