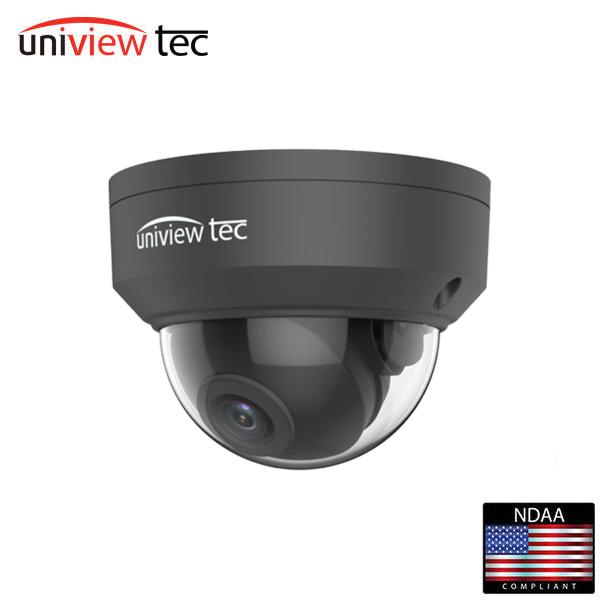

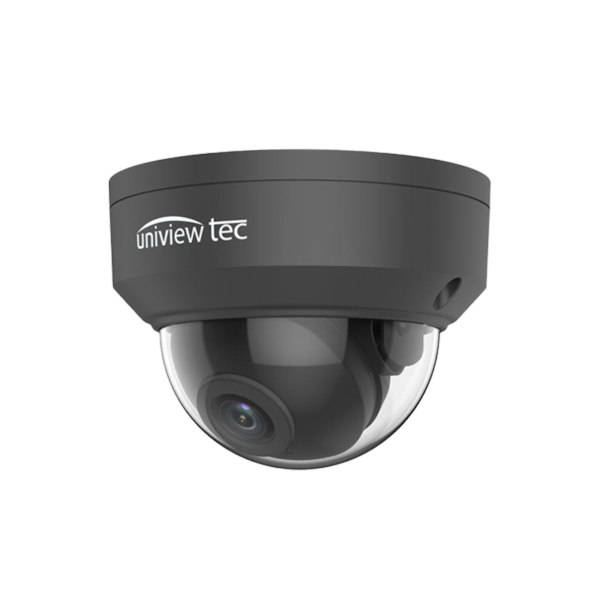

*Discontinued* Uniview Tec / UVT / IPV4E28BX / Dome Camera / IP / 4MP / 2.8mm Fixed Lens / True Day-Night / WDR / 30m IR
- $129.00
-
- $129.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Fully Adheres to National Defense Authorization Act (NDAA) GuidelinesExceptional Video Quality with 4MP, 2688 x 1520 ResolutionSuper-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage RequirementsPowerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet2.8mm fixed lensTRUE Day/Night and WDR functionality for all Lighting ConditionsCorridor Mode, Backlight Compensation and 3D DNR (Digital Noise Reduction)Triple Video Streams and ONVIF Profile S CompliantIntrusion Detection AnalyticsPoE & 12VDC Power Options and Optional Wall and Pendant Mounts AvailableBuilt-in Micro-SD Card Slot enables local storage up to 256GB 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal HousingSupported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device
- $129.00
-
- $129.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8mm @ F1.6 |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range & Wavelength | Up to 30m (98 ft) IR range; 850nm |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520) @ 25fps Sub: 720P (1280 x 720) @ 30fps |
| HLC, BLC, 9:16 Corridor Mode, Defog, Flip |
Supported |
| OSD, Privacy Mask, Motion Detection & ROI |
Up to 8 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, G, T), API |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Intrusion Detection Analytics | Cross Line, Intrusion, Motion & Tampering Detection |
| Local Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| General | |
| Power | 12VDC +/-25%, PoE (IEEE802.3 af); Power consumption: Max 5.5W |
| Dimensions (Ø x H) & Weight | ?109 x 81 mm (Ø4.3” x 3.2”); 0.35kg (0.77lb) |
| 3-Axis Adjustment Range | Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360° |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-31°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
| Conformity Certifications | IP67, IK10; CE, FCC |
